Tungsten Carbide Cutting insert in Blanks
Product introduction for Tungsten Carbide Cutting insert in Blanks :
1.100% virgin raw materail tungsten carbide blank insert for processing moulds, for forming tools.
2.we can make any special dimention according to your request.
3.Grade: YG6/YG8/YG10/K10,K20,K30,K40,P10,P20 etc.
(Please note: Only suitable Grade of materials can reach extremely quality).

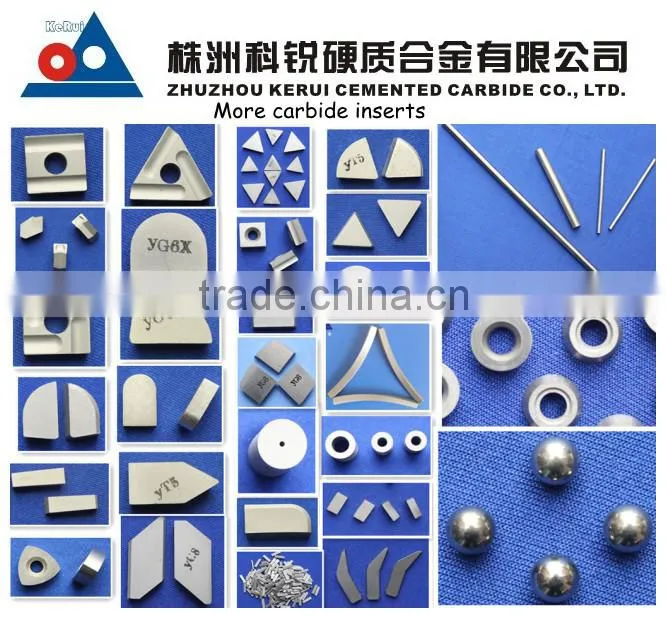

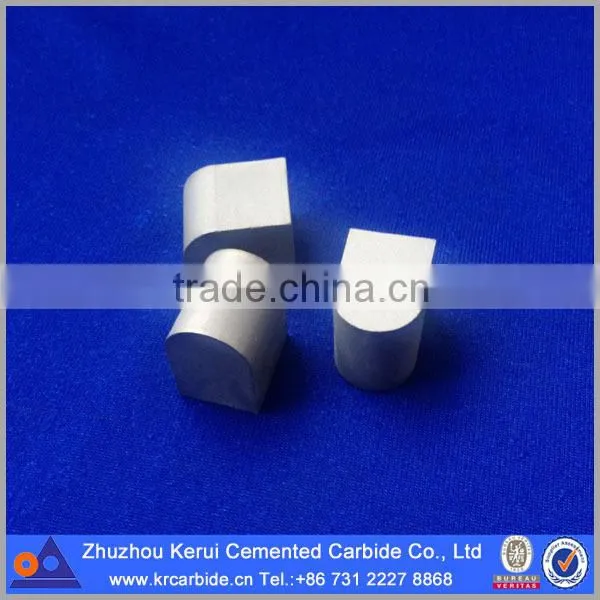

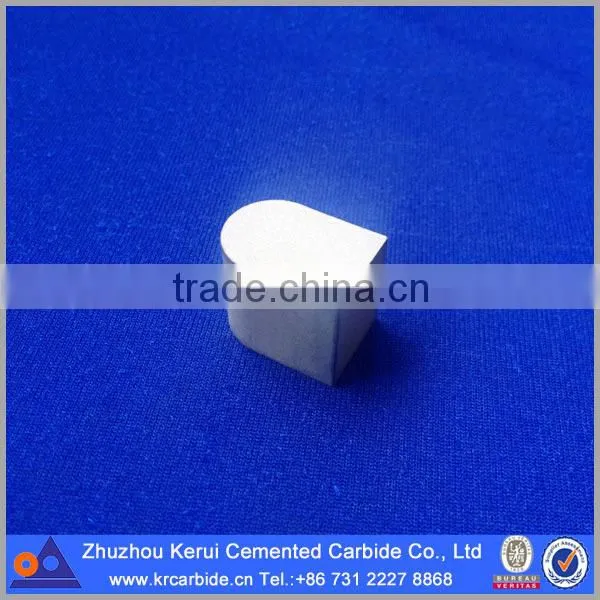

Detail pictures of Tungsten Carbide Cutting insert in Blanks:
Product application:
Tungsten Carbide Cutting insert in Blanks are Suitable for wear part of mechanical part, for processing moulds, forming tools etc.
Advantage of our Tungsten Carbide Cutting insert in Blanks:
Our tungsten carbide inserts with good abrasive resistance , good heat and corrosion resistance.
We have passed GB/T 19001& ISO 9001.
Different dimensions of the tungsten carbide blocks are available here, both blank finish and ground finish. Very good performance and finishing, will follow your standard of tolerance exactly.
Physical and mechanical properties of main grades:
Grade |
ISO Grade |
Density g/cm3 |
Hardness HRA |
T.R.S>N/mm2 |
YG6 |
K20 |
14.85-15.05 |
90.5 |
1860 |
YG6A |
K10 |
14.85-15.05 |
92 |
1600 |
YG6X |
K10 |
14.85-15.05 |
91.7 |
1800 |
YG7 |
K20 |
14.65-14.85 |
90 |
1900 |
YG8 |
K30 |
14.60-14.85 |
89.7 |
2060 |
YG10 |
K40 |
14.25-14.55 |
88 |
2160 |
YG11 |
K40 |
14.30-14.50 |
87.5 |
2260 |
YG11C |
14.20-14.40 |
87 |
2260 |
|
YT14 |
P20 |
11.20-11.80 |
91 |
1550 |
YT15 |
P10 |
11.10-11.60 |
91.5 |
1500 |
Reference packaging:
Interior packaging: plastic box or paper box,
Exterior packaging: carton or wooden case.
Also could be customized.
Company profile:
Zhuzhou Kerui Cemented Carbide Co., Ltd is a professional tungsten carbide manufacturer
located in Zhuzhou City, the world renowned cemented carbide base. Have been involved in this
field for over 10 years, we have reach experience in production and research of carbide products.
We are also an assessed supplier by Alibaba, TUV and BV etc.
Factory picture:
Production process:
Quality inspection instruments:
Quality control:
1. All raw materials are tested in terms of density, hardness and T.R.S before use.
2. Every piece of product goes through in-process and final inspection.
3. Every batch of product can be traced.
Guarantee:
Full payment refund if any quality problem.
Promise:
100% high-quality native tungsten carbide raw materials, in strict standard quality assurance system strictly control the quality of products accordance with ISO9001, the most preferential prices, the most attentive service, the most reliable product quality for your service!
Certificates:
Our foreign trade team:
Transaction process:
Inquiry => product conformation => quotation => price and terms => advance payment =>
Production => balance payment => delivery => after sales service
Payment method:
Transportation mode:
By express, by air, by road, by railway, by sea etc.
1, please mention the enquired product clearly in terms of grade, type or drawing with dimension and tolerance, quantity etc. It’s better if you could have a brief introduction of your company.
2, please mention your price terms, e.g. FOB, CIF. For CIF, please name the destination port.
Our MOQ could be 1 piece or 1kg. But the price will be a little bit high when the quantity below 50kg or 2000USD.
3, For standard types, the delivery time is normally 25-30 days. For nonstandard type or further processed type, the delivery time is 40-45 days. If you need the goods urgently, we could try to push the production and shorten the delivery time.
