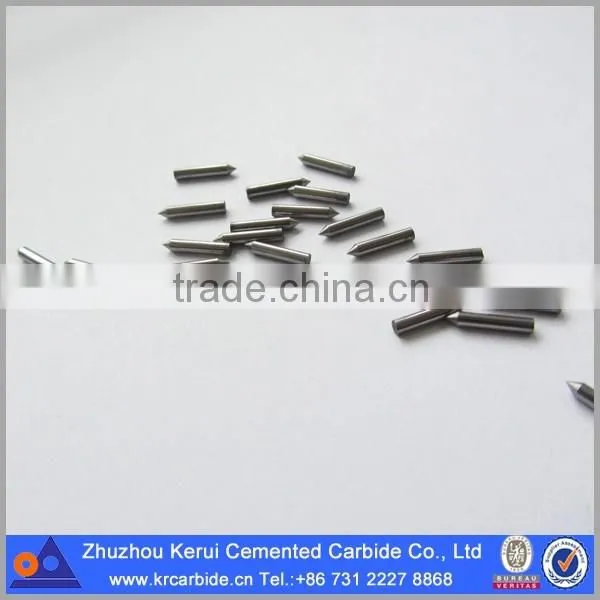

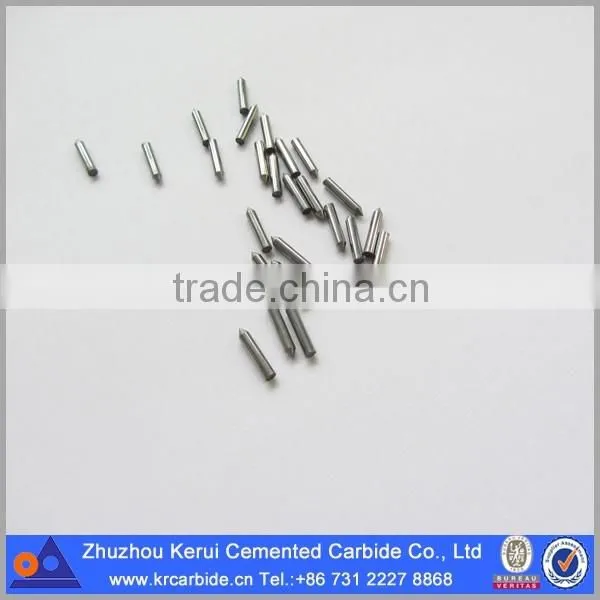

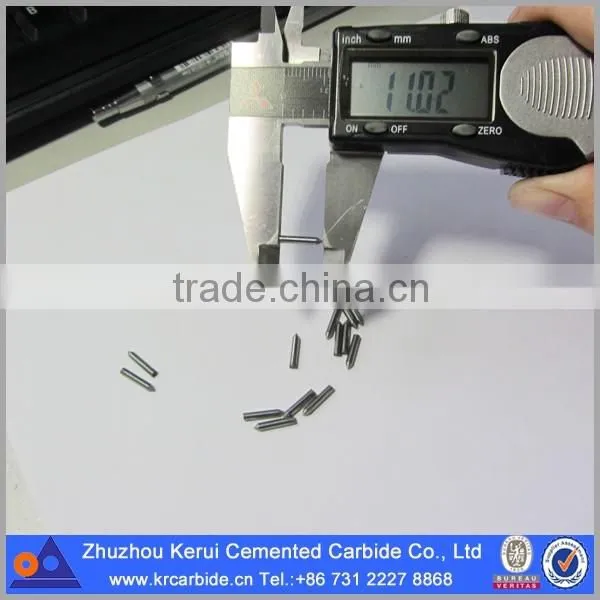

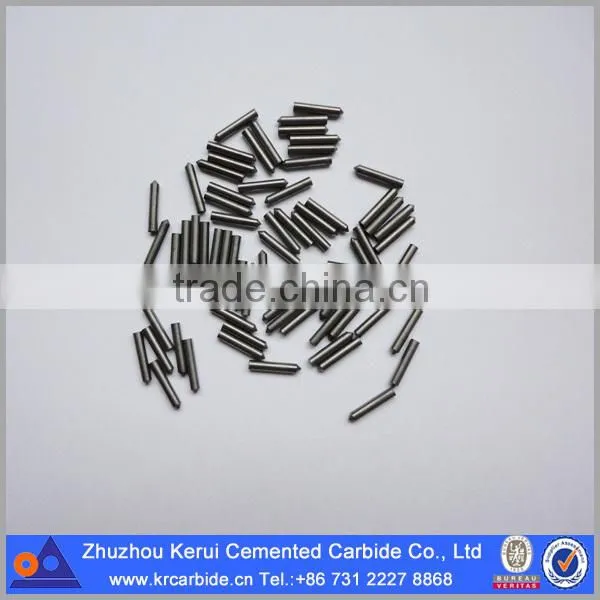

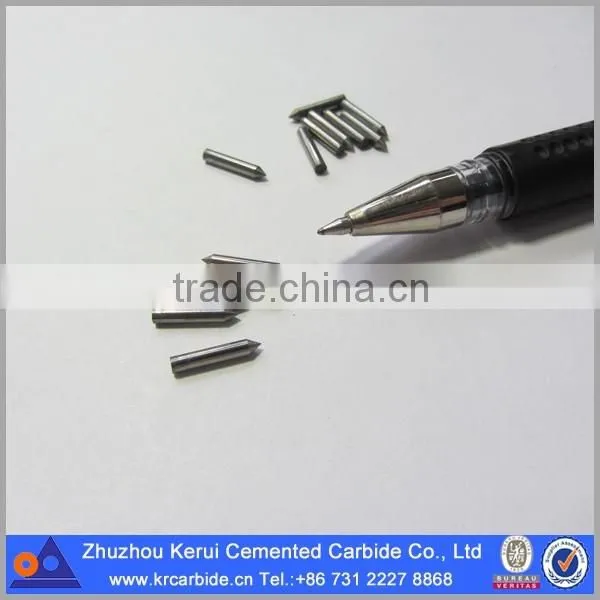

Tungsten carbide plug pin in diameter 2mm x 10mm length
1.Details of our tungsten carbide needles,pins:
Grade: K10,K20,K30,YT10,YG12 upon your application.

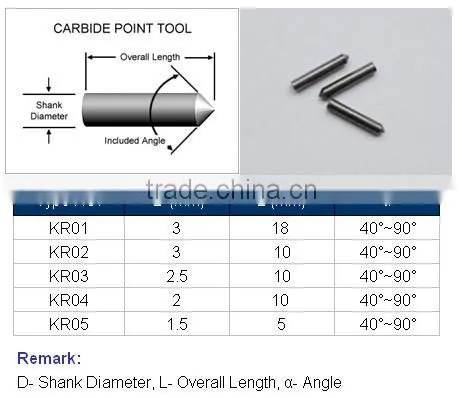

American standard Type like: dia.1.5*7, 2x10 (Unit:mm)
Customize size are also available!
Application:
Our Tungsten carbide plug pins are mainly used to carvin pins for the machines.

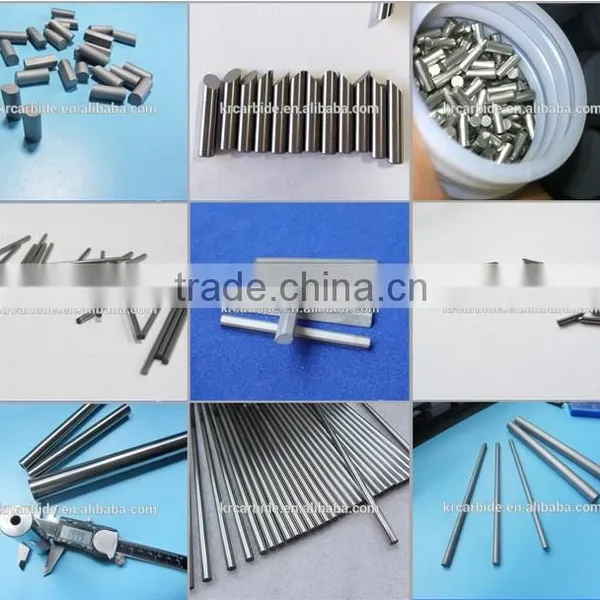

More Related Tungsten carbide plug pins:
2.Grade recommendation:
| Grade | Grade | WC | Co | Others | Grain Size | Density | T.R.S | Hardness | Impact Strength (Kgf-m/cm2) |
| Series | (+0.5% | (+0.5%) | (μm) | g/cm3 | Mpa | HRA | |||
| Mining tool parts | YG4C | 96 | 4 | 2.0~2.4 | 15.1 | 1800 | 90 | 0.35 | |
| YG6 | 94 | 6 | 1.6~1.8 | 14.9 | 2100 | 90 | 0.4 | ||
| YG8 | 92 | 8 | 1.6~1.8 | 14.7 | 2400 | 89.5 | 0.42 | ||
| YG8C | 91.7 | 8.3 | 2.0~2.4 | 14.7 | 2450 | 88.5 | 0.65 | ||
| YG9C | 91.5 | 8.5 | 2.0~2.4 | 14.6 | 2450 | 87.8 | 0.66 | ||
| YG10C | 89.5 | 10.5 | 2.0~2.4 | 14.4 | 2550 | 87 | 0.68 | ||
| YK25 | 88 | 12 | 2.0~2.4 | 14.5 | 2600 | 87.5 | 0.7 | ||
| YG11C | 88.5 | 11.5 | 2.0~2.4 | 14.4 | 2600 | 87 | 0.71 | ||
| YG13C | 87 | 13 | 2.0~2.4 | 14.2 | 2650 | 86.5 | 0.72 | ||
| YG15C | 85 | 15 | 2.0~2.4 | 14 | 2700 | 86.5 | 0.75 | ||
| YG15 | 85 | 15 | 1.6~1.8 | 14 | 2500 | 87.5 | 0.58 | ||
| General Grade | YG3 | 97 | 3 | 1.6~1.8 | 15.1 | 1400 | 90.5 | 0.2 | |
| YG3X | 96.7 | 3.3 | 1.0~1.2 | 15.2 | 1300 | 91.5 | 0.2 | ||
| - | 93 | 7 | 1.2~1.6 | 14.7 | 1720 | 89.5 | 0.35 | ||
| YG11 | 89 | 11 | 1.6~1.8 | 14.4 | 2000 | 87.5 | 0.42 | ||
| Saw Tips | K10 | 93.5 | 6.5 | 1.0~1.2 | 14.7 | 1900 | 92.5 | 0.33 | |
| K30~K40 | 91 | 9 | 1.0~1.2 | 14.5 | 2200 | 91 | 0.35 | ||
| YG8X | 91.5 | 8.5 | 1.0~1.2 | 14.4 | 2420 | 92 | 0.34 | ||
| K20 | 88 | 12 | 0.8 | 14.7 | 2000 | 91.2 | 0.34 | ||
| K20 | 89.5 | 10.5 | 1.0~1.2 | 14.8 | 2200 | 91 | 0.35 | ||
| K10 | 89.5 | 10.5 | 1.0~1.2 | 14.9 | 1890 | 91.5 | 0.35 | ||
| K10 | 94 | 6 | 1.2~1.6 | 14.9 | 2100 | 90 | 0.42 | ||
| K20 | 92 | 8 | 1.2~1.6 | 14.7 | 2400 | 89.5 | 0.45 | ||
| K20 | 91.7 | 8.3 | 2.0~2.4 | 14.7 | 2450 | 88.5 | 0.65 | ||
| K30~K40 | 91.5 | 8.5 | 2.0~2.4 | 14.6 | 2600 | 87 | 0.66 | ||
| - | 88.5 | 11.5 | 2.0~2.4 | 14.4 | 2200 | 86.5 | 0.72 | ||
| K40 | 85 | 15 | 2.0~2.4 | 14 | 2700 | 86 | 0.75 | ||
| Metal Forming Tools | YG6A | 92 | 6 | 2 | 1.0~1.2 | 14.9 | 1850 | 92 | 0.35 |
| YG8 | 92 | 8 | 1.2~1.6 | 14.7 | 2400 | 89.5 | 0.42 | ||
| YG15 | 85 | 15 | 1.6~1.8 | 14.5 | 2500 | 87.5 | 0.58 | ||
| YG20 | 80 | 20 | 1.2~1.6 | 13.5 | 2800 | 85.5 | 0.62 | ||
| YS2T | 88 | 12 | 0.8 | 14.5 | 2350 | 92 | 0.35 | ||
| Disc Cutters | YG6A | 91.5 | 8.5 | 1.0~1.2 | 14.9 | 1850 | 92 | 0.34 | |
| - | 92 | 8 | 1.0~1.2 | 14.8 | 2450 | 90.5 | 0.36 | ||
| YG8 | 92 | 8 | 1.2~1.6 | 14.8 | 2200 | 89.5 | 0.4 | ||
| YG8 | 91.7 | 8.3 | 1.6~1.8 | 14.7 | 2320 | 89.5 | 0.45 | ||
| YG10X | 89.5 | 10.5 | 1.6~1.8 | 14.5 | 2200 | 91 | 0.48 | ||
| YS2T | 87.4 | 10.2 | 2.4 | 1.0~1.2 | 14.5 | 2480 | 92 | 0.34 | |
| - | 87.4 | 10.2 | 2.4 | 0.8 | 14.3 | 2420 | 90 | 0.33 | |
| Impact Resistant Forging Tools | - | 79 | 20.5 | 0.5 | 2.8~3.2 | 13.5 | 3000 | 83.5 | 0.9 |
| YG11 | 89 | 11 | 1.6~1.8 | 14.4 | 2420 | 88.5 | 0.42 | ||
| YG15 | 85 | 15 | 1.6~1.8 | 14 | 2500 | 87.5 | 0.58 | ||
| YG20 | 80 | 20 | 1.2~1.5 | 13.5 | 2800 | 85.5 | 0.62 | ||
| YG16C | 84 | 16 | 2.0~2.4 | 13.9 | 2750 | 85.5 | 0.65 | ||
| YG18C | 82.5 | 17.5 | 2.8~3.2 | 13.7 | 2800 | 84.5 | 0.75 | ||
| YG20C | 79.5 | 20.5 | 2.8~3.2 | 13.5 | 2850 | 83.5 | 0.82 | ||
| YG22C | 77.5 | 22.5 | 2.8~3.2 | 13.3 | 2900 | 83 | 0.85 | ||
| YG25C | 75 | 25 | 2.8~3.2 | 13.1 | 2950 | 82.5 | 0.85 | ||
| YG26 | 73 | 26.5 | 0.5 | 2.8~3.2 | 13.3 | 3200 | 82 | 0.9 | |
| Inserts | YT5 | 75 | 9.3 | 15.7 | 1.6~1.8 | 12.9 | 1560 | 89.5 | 0.3 |
| YT14 | 56.5 | 8.2 | 35.3 | 1.6~1.8 | 11.4 | 1400 | 90.5 | 0.3 | |
| YT15 | 54.2 | 6.1 | 39.7 | 1.0~1.2 | 11.2 | 1300 | 91 | 0.2 | |
| YW1 | 77.5 | 6.2 | 16.3 | 1.0~1.2 | 13.2 | 1290 | 91.5 | 0.2 | |
| YW2 | 75.5 | 8.2 | 16.3 | 1.0~1.2 | 13.1 | 1460 | 90.5 | 0.2 | |
| YS25 | 45.2 | 8.6 | 46.2 | 1.0~1.2 | 13 | 1780 | 90.5 | 0.25 | |
| YC45 | 70.8 | 12 | 17.2 | 1.0~1.2 | 13 | 1650 | 90 | 0.25 |
3.Advantages of our tungsten carbide plug pins:
1. produced with advanced equipments and process;
2. all products go through in-process and final inspection;
3. free online technical service available;
4. stable and continuous production ability.
5.Here with American standard type dia.2x10mm,1.5*7mm that with good performance in the Grade YG12.
4.Our Main Market:
North America: USA, Canada, Mexico
South America: Brazil, Peru, Chile
Europe: Italy, Spain, Russia, Poland, Romania, Azerbaijan, Germany
Mid East: Egypt, Turkey, Lebanon
Africa: Kenya, South Africa
5.Packing & Transportation:
6.Quality control equipment:
1. All raw materials are tested in terms of density, hardness and T.R.S before use.
2. Every piece of product goes through in-process and final inspection.
3. Every batch of product can be traced.
We are Guarantee: Full payment refund if any quality problem.
7.About Us:
Zhuzhou kerui Cemented Carbide Co., Ltd is a professional tungsten carbide manufacturer located in Zhuzhou City, the world-renowned research and production base of tungsten carbide. Having been involved in this field for over 10 years.
We have rich experience in both production and research of carbide products.
We always want develop long relationship with customers, you can find the best quality and price here, also the best service here, it will be very simple and easy for you do business with us, that's why we can be the supplier which you can trust.
TUV & BV Certificate:
8.FAQ:
1. How to make an inquiry?
Firstly, please mention the enquired product clearly in terms of grade, type or drawing with dimension and tolerance, quantity etc. It’s better if you could have a brief introduction of your company.
Secondly, please mention your price terms, e.g. FOB, CIF. For CIF, please name the destination port.
2. What’s your MOQ?
Our MOQ could be 1 piece or 1kg. But the price will be a little bit high when the quantity below
50kg or 2000USD.
3. What’s your delivery time?
For standard types, the delivery time is normally 25-30 days. For nonstandard type or further processed type, the delivery time is 40-45 days. If you need the goods urgently, we could try to
push the production and shorten the delivery time.
