industrial cold room refrigerated warehouse
- 1000 Set / Sets per Month
- Qingdao Shanghai
- T/T
- fresh Vegetable/fruit and meat cold storage warehouse
- Blast Freezer quick freezing for fish meat Ice Cream CE Approval
- vegetable/ fruits /meat/ beef quick freeze warehouse 200mm
- frozen cold room for meat and fish with solar power cold room thermometer
- Quick Frozen Cold Room for Pizza/Meat/Fish/Chicken/Vegetable
- frozen beef cold storage cold chain cold warehouse
Product Details
Condition: | New | Temperature: | -45~+20C | Place of Origin: | Shandong, China |
Brand Name: | ORGREN | Model Number: | ORGREN | Voltage: | 110v,220v,380V,420v,440v |
Power(W): | all available | Dimension(L*W*H): | customized | Weight: | customized |
Certification: | CE ISO9001 | Warranty: | 1year | After-sales Service Provided: | Overseas third-party support available |
Product Description
industrial cold room refrigerated warehouse
Application:
Food (meat, vegetable, fruit, dairy, drink), Medicine, Chemical, Flowers,Electronics
Features of cold room ( cold storage, freezer room,cooling room ) :
(1) Temperature for chicken and fish: -18ºC for storage, -30ºC for quick freezing
Temperature for vegetable and fruit:0- 5ºC
(2) Size: We can make the cold room by your requirements.
Volume Classification Table: | |||
Classification of cold room | Small | Middle | Large |
Volume Range | <500m3 | 500~10000m3 | >10000m3 |
(3)excellent quality ,dependable performance, energy saving design and environmental.

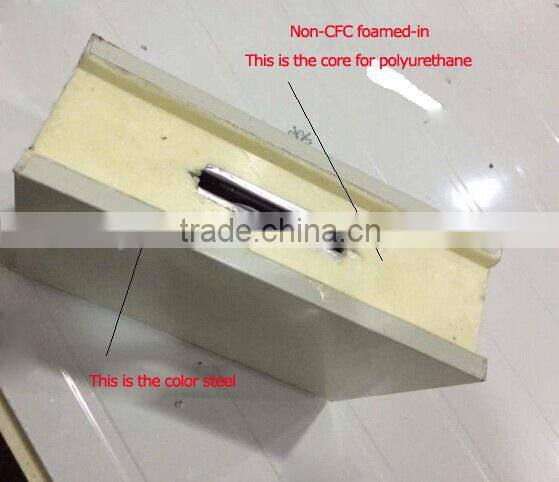

Cold Room PU Panel:
The rigid polyurethane foam is favorable for the manufacturing of refrigeration and cold storage panels due to its advantageous mechanical, chemical, biological and moisture properties
- Food grade compliance
- Superior thermal performance
- Moisture and corrosion resistance
- High density mechanical strength
- Fire retardant (incorporated)
- CFC free
Thickness: 50mm, 75mm, 100mm, 120mm, 150mm, 200mm.
Width: 970mm and 1000mm.
Length: from 2000mm to 12000mm
Thickness of cold storage panel | Application temperature |
50mm | Temperature 5°C or above |
75mm | Temperature -5°C or above |
100mm | Temperature -5'C~-25°C or above |
150mm | Temperature -18'C~-45°C or above |
200mm | Temperature -55°C or above |
Fire Proof Testing
Density: 42 +/- 2 kg/m3 Grade of fire resistance: B2, B1
Panel Surface: Color Plate, Stainless Steel, Embossed Aluminum
Panel Connection: cam lock type, use hexagonal key to assemble and disassemble.

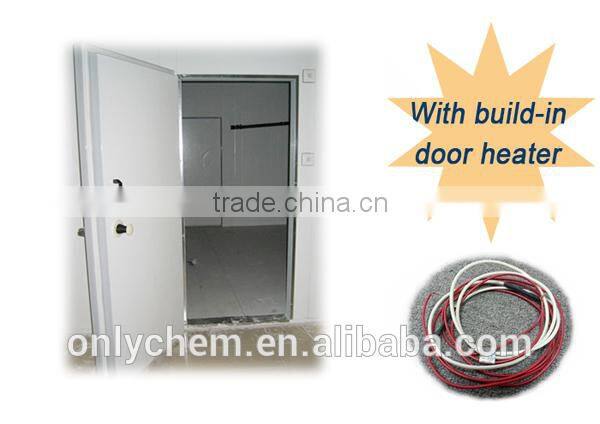

Cold Room Door:
Cold Room Door Type: Hinged Door, Sliding Door, Swing Door
Cold Room Door Surface Material: Coloring Steel, Stainless Steel
Cold Room Door Feature:
- Brand New, Excellent Quality
- Custom-made
- Good Airtight Performance
- Lightweight

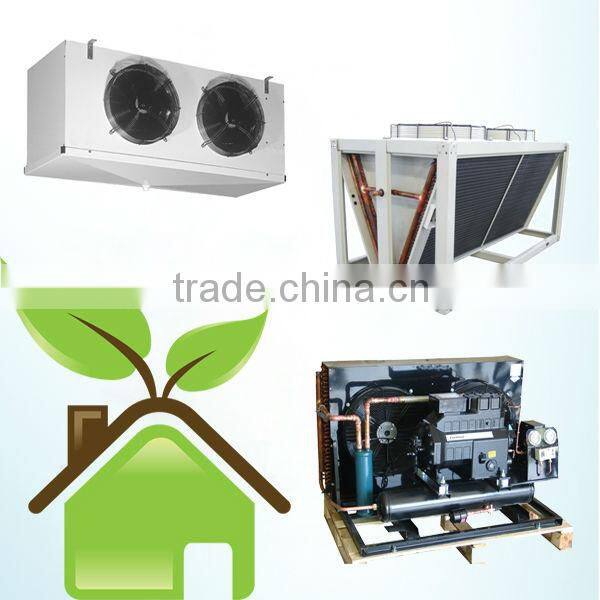

Components
(1) Condensing unit: Bitzer,,Copeland,,Tecumseh,Maneurop, Fusheng,etc
(2) Evaporator: High efficiency air-cooler.
(3) Other accessories: world-famous brands, like Danfoss, Castle, Every Control, Siemens, LG

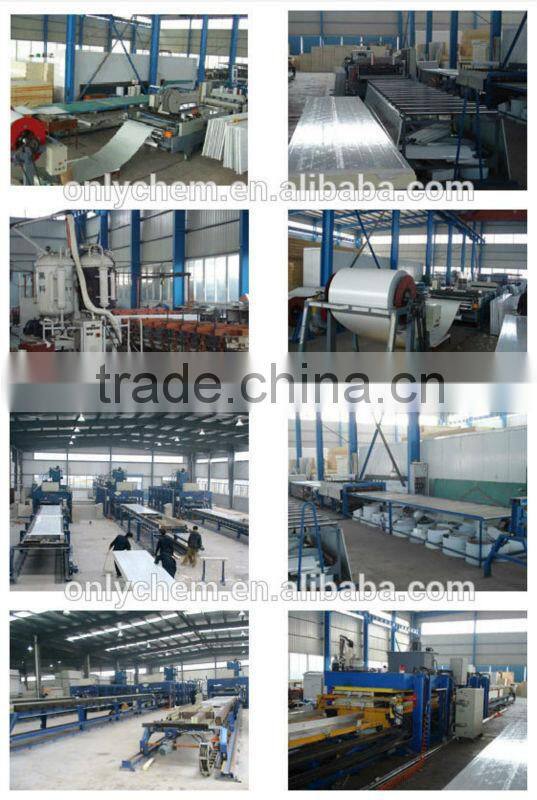

Production line for cold room
Pre-install before shipment
Onlychem service and schedual:

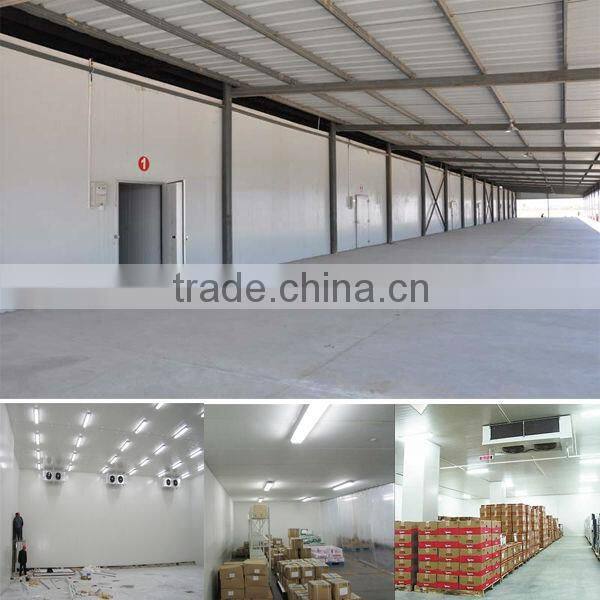

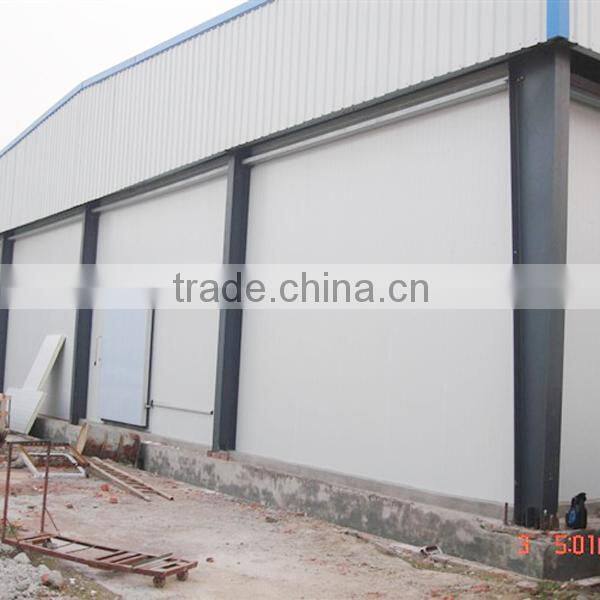

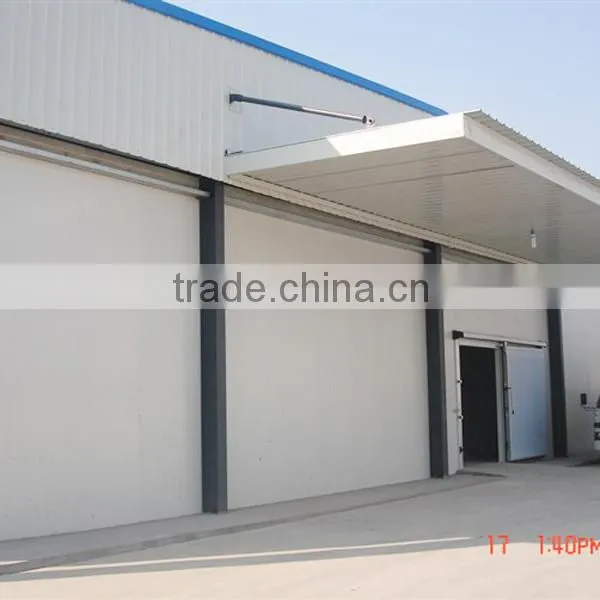

Some samples of our cold room
Packages and transport:
In your inquiry, please include the content as follow:
1. what is your cold room used for?
2. what is your required room temperature?
3. what is the cold room dimension or how much food or other products will be put inside?
4. what is your voltage, phase and hertz?
5. what is your refrigerant?
OnlyChem Advantages:
- 1. The Proof of Quality: Now we have customers in different countries and places, such as Canada, USA, Australia, New Zealand, Singapore, Argentina, Middle- East, Africa…
- 2. The Guarantee of Quality: Reasonable design, Professional technicians, Stable production workers, Full-scale Equipments, Strict QA & QC system…
- 3. Custom-made Design: We supply our design drawing according to customer practical situation.
- 4. Technique Support:
Walk in cold room: we supply our diagrammatic drawing, feel easier for installation.
Cold storage warehouse: We have nearly 20 professional engineers who can go aboard to supply technology support and direction, until turn key for our customers.
- 5. International Trade Operation: We have concentrated on international trade of cold storage room line for more than 10 years, accumulated various experience from different customers of different countries. So we can update our operation in time according to our customers and new rules. It is helpful to clear custom and save cost and time for our customers.
