Help CenterFrozen Cold Storage Room
Related Products
Specifications
1.Meet health standards.2.high quality and competitive price
3.Easy to use and maintenance.
4.Energy saving

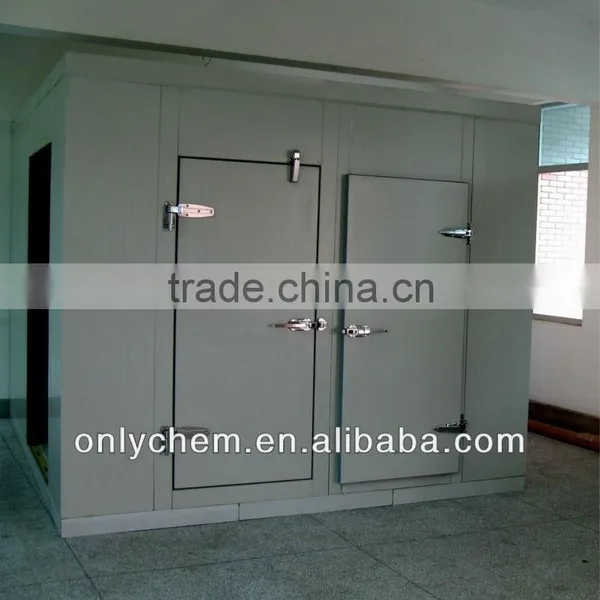

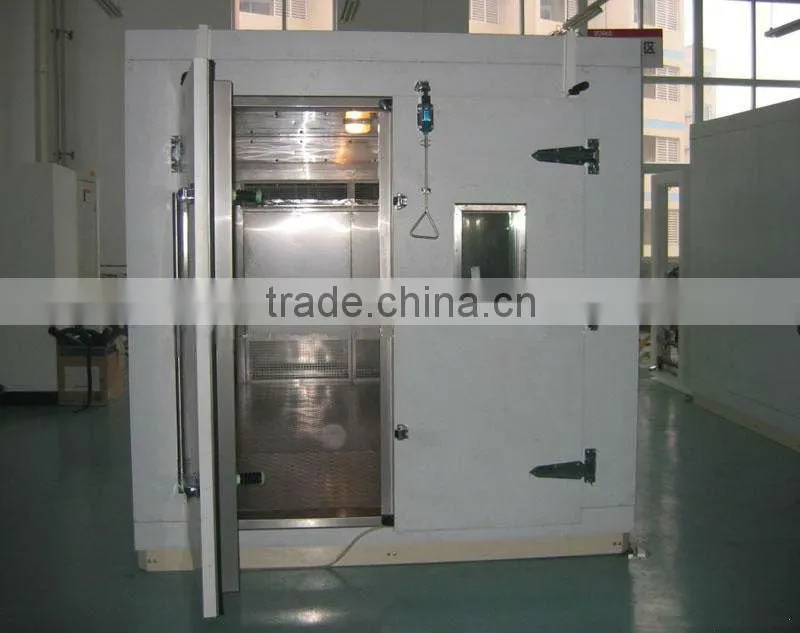

Cold room
Application:
Food (meat, vegetable, fruit, dairy, drink), Medicine, Chemical, Electronics
Feature of Cold room ( cold storage, freezer room,cooling room ) :
(1) Temperature range: -45ºC~+5ºC are all available.
(2) Size: Customization.
(3) Functions: fresh-keeping storage for food refrigeration, industry refrigeration, fresh preservation of fruits and vegetables, large supermarket, cold storage of hotels ect.
(4)excellent quality ,dependable performance
| Volume Classification Table: | |||
| Classification of cold room | Small | Middle | Large |
| Volume Range | <500m3 | 500~10000m3 | >10000m3 |
Components:
(1) Condensing unit: Bitzer, Copeland, Tecumseh
(2) High efficiency air-cooler.
(3) Insulation Panel: PU
(4) Other accessories: world-famous brands, like Danfoss, Castle, Every Control, Siemens, LG

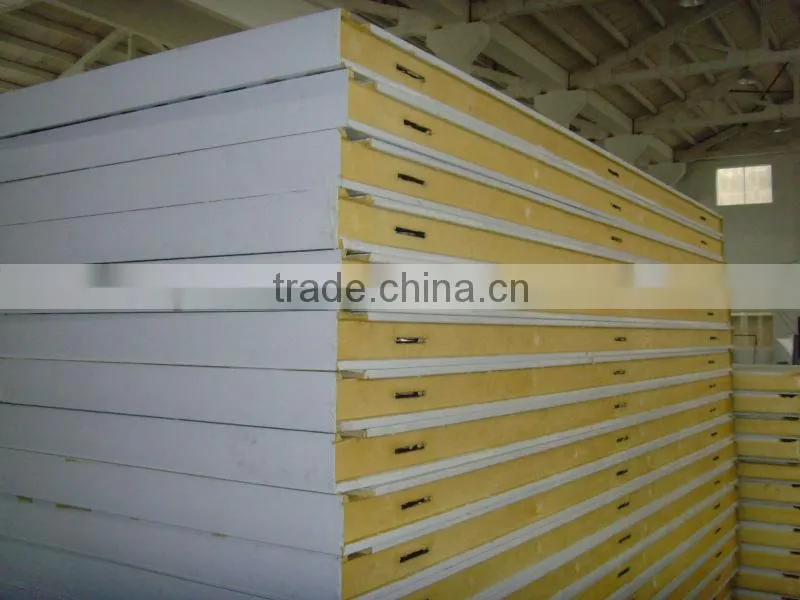

Panels:
Cold room insulation panel:use 100%polyurethane insulation panel,density about 38~46kg/m3,with gasket,with flame retardant,panel thickness:100mm~200mm, standard width of panel is 960mm
Polyurethane insulation board design for cold room, the main steel structure to facilitate construction. Portable sliding doors, and out of cold storage more convenient, easy to operate.
Water defrosting evaporator defrost faster, save operating costs.
Cold storage door with anti-shock protection, an increase of reliability.
Turnkey projects.
Doors:
1).Swing door and sliding door for choice.
2).Swing door:manual opened,automatic,etc.
3).Door board made with special pressing technology PU material.
4).Door frame:color steel or stainless steel.
5).Surface material:color steel or stainless steel with protecting film.
Thickness of cold room panel |
Application temperature |
50mm |
Temperature 5°C or above |
75mm |
Temperature -5°C or above |
100mm |
Temperature -25°C or above |
150mm |
Temperature -45°C or above |
200mm |
Temperature -55°C or above |
It is portable cold room with high insulating PU Panel, reliable quality compressor and unit cooler, and other accessories. the size depends on your stock tons and temperature.
When you make inquiry, please inform us the size of cold room you want and temperature required. We also can customized following your request.
In your inquiry, please include the content as follow:
1.Which country and which city the cold room located?
2.Cold room being installing inside the building or putting outside the house?
3.What is the ambient temperature(°C)
4.Inside dimension of the cold room?(m)
5.What Kind of products is gonna store in the room?
6.The material of cold room panel;(Including the wall panel, floor and roof panel)
7.The thickness of cold room panel;(Including the wall panel, floor and roof panel)(mm)?
8.Required temperature inside the cold room(°C)?
9.How much kilograms of products put in cold room per once(kg/once)?
10.Original temperature of products before put into the cold room(°C)
11.Within how many hours to cool the products down to the request temperature?(12 hours or 24 hours)
12.Which refrigerant required for the refrigeration unit?R22 or R404A
