Specifications
1.thumbwheel potentiometer2. ISO TUV RoHS compliant
3. free sample for evaluation
4. low price high quality,fast delivery

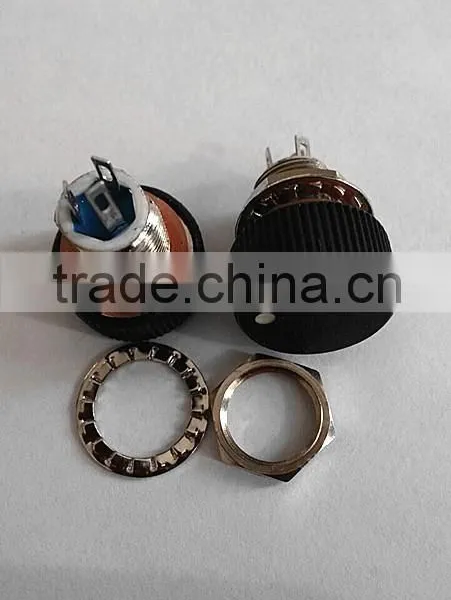

WI1609 Trimming 1w single-turn knob thumbwheel potentiometer

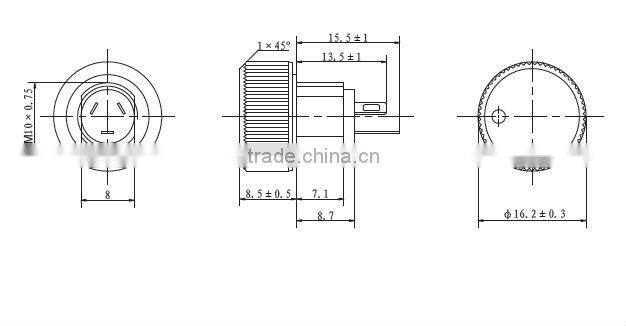

◊ Mechanical Parameter:
Electrical Characteristics
Standard Resistance Range:100 to 2 megohms
Resistance Tolerance:±10% std.(tighter tolerance available)
Absolute Minimum Resistance:1% or 10 ohms max.(whichever is greater)
Contact Resistance Variation:3% max.
Insulation Resistance:500 Vdc, 1000 megohms min.
Dielectric Strength:101.3 kPa 900 Vac 8.5 kPa 500 Vac
Adjustment Angle:265°nom.
Environmental Characteristics:Power Rating (200 volts max.)1 watt (70°C) , 0 watt (125°C)
Temperature Range:-55°C to +125°C
Temperature Coefficient:±250×10-6/°C or ±100×10-6/°C
Vibration:98 m/s2, 1%ΔTR
Shock:490 m/s2, 1%ΔTR
Load Life:1,000 hours 1 watt @ 70°C(5%ΔTR)
Rotational Life:10000 cycles(15%ΔTR; 6% ,CRV)
Physical Characteristics
Mechanical Angle:305° nom.
Torque:(3.5~50)mN·m
Stop Strength:350 mN·mmin.
◊ Our Partners
CHANGHONG
TAIWAN KEZHENGXIN ELECTRONICS CO.
I’AN HONGXING ELECTRONICS CO.
JIALING MOTORCYCLE
KLS ELECTRONIC CO., LTD.
◊ Main product
◊ Work Flow
◊ Packing
◊ Certificate
For more information, pls don't hesitate to contact us!
