WXD 3590 Ceramic Potentiometer

Name: WXD 3590 Ceramic Potentiometer
Brand: Bonens
SKU: 101970653
Availability: InStock

US$ 1 - 1.8 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

Bonens

Model Number:

WXD3590S potentiometer

Sichuan Qixing Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name Bonens

Model Number WXD3590S potentiometer

Type Other, glass glaze

Technology Ceramic Composition

Resistance 100 ohm~10M ohm

Resistance Tolerance ±2%, ±5%

Rated Power 2W

Max. Operating Voltage 500V

Operating Temperature -55°C-+125°C

Specifications

1.WXD 3590
2. Multiturn 3590 Trimmer Potentiometer
3. RUV certification
4. RoHS ISO compliant
5. Competitive price

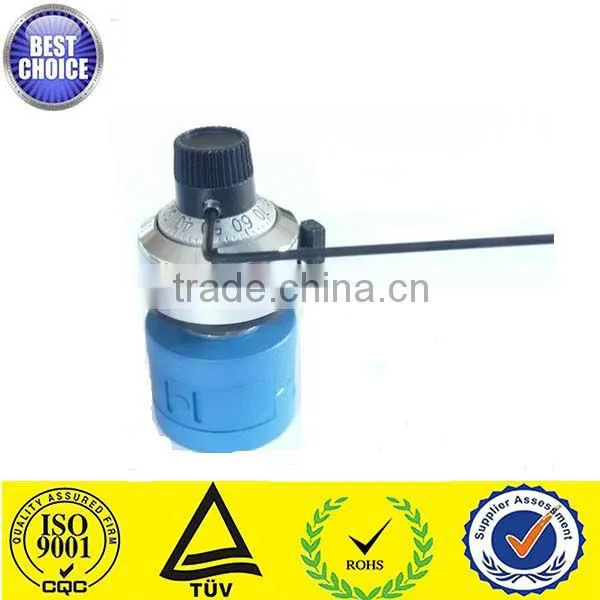

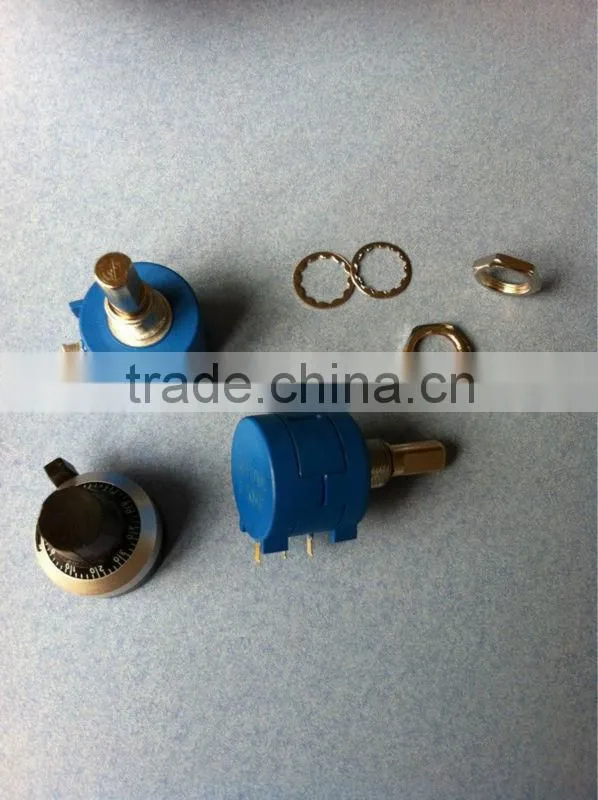

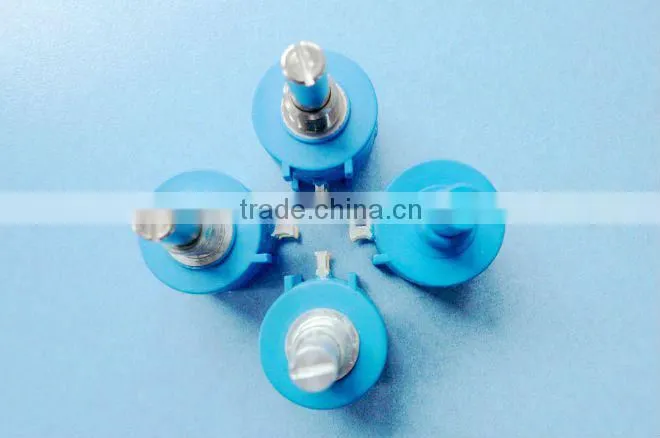

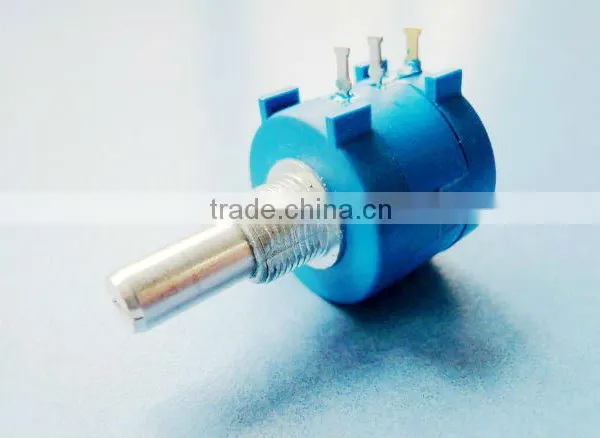

◊ Details of Pictures:

◊ Mechanical Parameter:



Electrical Characteristics	Range of nominal resistance	100Ω~100KΩ
	Resistance tolerance
		±2%, ±5%

	Terminal resistance
		≤±0.2%R or 5Ω
	Peak Noise
		≤100Ω
	Insulation resistance	≥ 200MΩ (100V AC)

	Withstand voltage	500V (DC or AC peak value)

	Electrical angle	3600° ± 10 °

Environment Characteristics	Rated power	2W ( 300V 70 °C )
	Temperature range	-55°C~+125°C

	TCR	±100×10-6/°C

	Collision (390m/S2, 4000 times)	ΔR≤±1%R
	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS

	Temperature variation (-55°C/30min, +125°C/30min, 5 cycles)	ΔR≤±2%R, ΔUab/Uac≤±2%R

	Climate category (IEC68-2-2)	ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ

	Electrical endurance (2W, 1000h)	ΔR≤± 3%R

	Mechanical endurance (200 cycles)	ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω

	Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤± 3%R, Insulation Resistance≥100MΩ,starting torque ≤20mN.m


Physical Characteristics	Total mechanical travel	3600° ± 10 °
	Rotational torque	2-10mN.m
	Standard package	50 pcs /box
