tungsten carbide of PCD Turning tool with center hole
Product introduction for tungsten carbide PCD turning tool:
Our tungsten carbide PCD turning tool with a center hole in the middle,
with good wear-resistance, excellent hardness and mechanical characters.
* Substantially longer service life than traditional steel tools
* Consistent working depth and tillage quality
* Permanently sharp cutting edges mean improved heeling and less traction power required
* Needs no depth adjustment due to wear
* Saves time and money thanks to fewer blade changes
* Much longer periods of use during good weather
* Optimum utilisation of machine power
* Lower tool costs per acre
* Money saved through reduced stocks

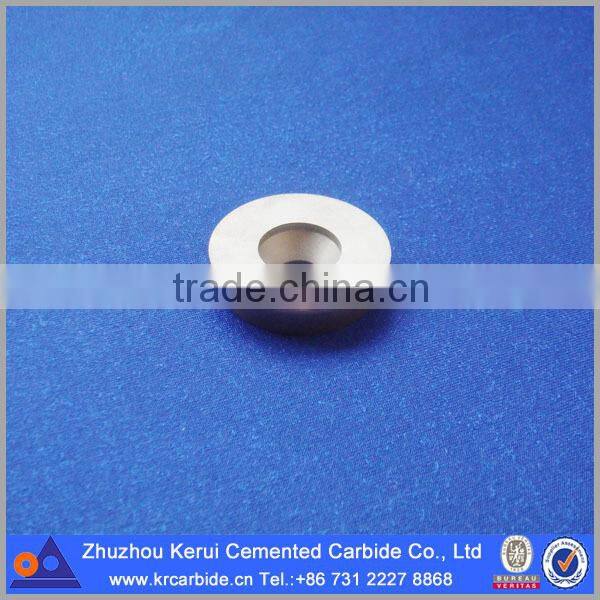

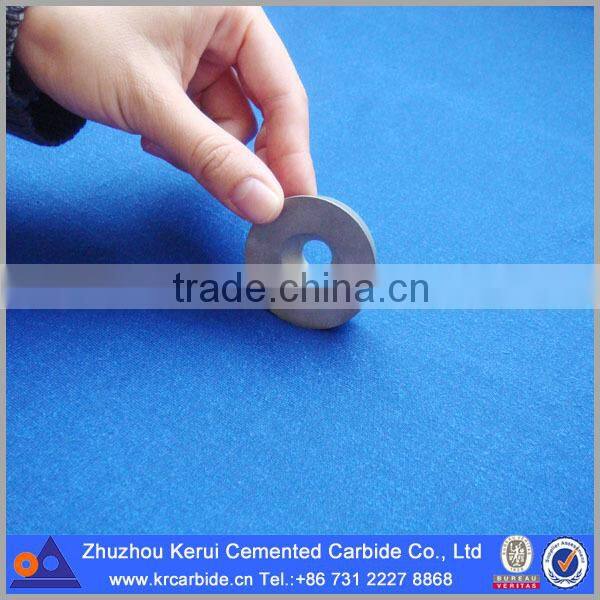

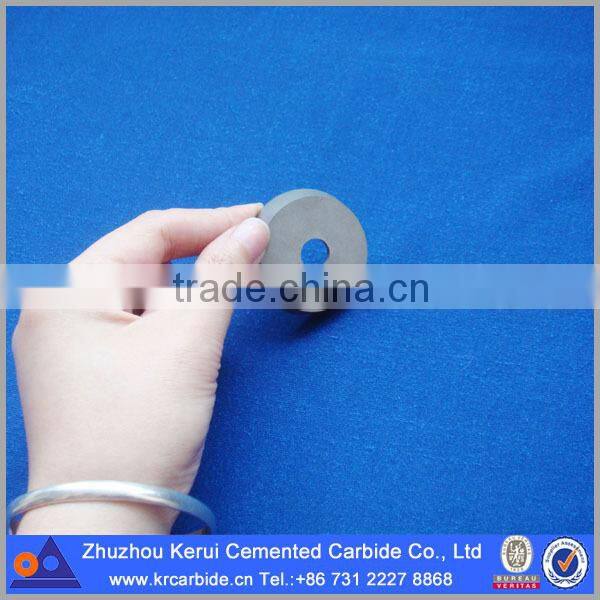

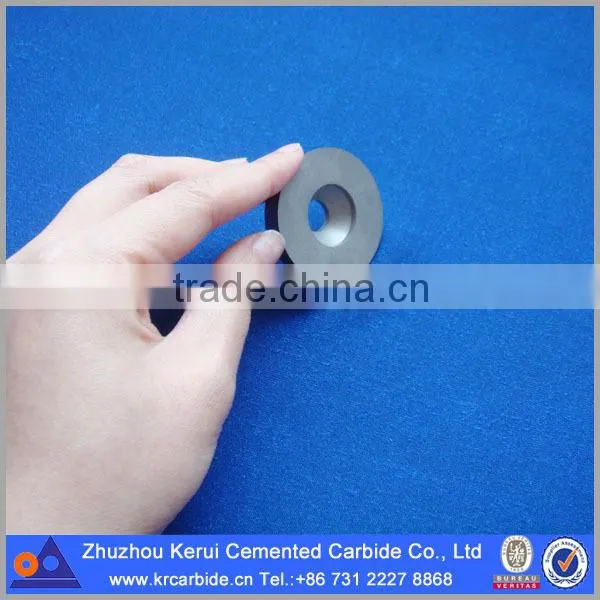

Detail pictures of tungsten carbide pcd turning tool inserts :
Physical and mechanical properties of main grades:
| Grade | ISO Grade | Density g/cm3 | Hardness HRA | T.R.S>N/mm2 | Performances or recommended applications |
| YG6 | K20 | 14.85-15.05 | 90.5 | 1860 | Medium grain, for rough machining of non-ferrous metals |
| YG6A | K10 | 14.85-15.05 | 92 | 1600 | Fine grain, for drawing dies and woodworking tools |
| YG6X | K10 | 14.85-15.05 | 91.7 | 1800 | Fine grain, for cutting of non-ferrous metals |
| YG7 | K20 | 14.65-14.85 | 90 | 1900 | Medium grain with good wear-resistance and good impact- resistance |
| YG8 | K30 | 14.60-14.85 | 89.7 | 2060 | Medium grain, for drawing dies |
| YG10 | K40 | 14.25-14.55 | 88 | 2160 | Medium grain, for machining gray cast iron with a low hardness |
| YG11 | K40 | 14.30-14.50 | 87.5 | 2260 | Medium grain, for wear parts and mining tools |
| YG11C | 14.20-14.40 | 87 | 2260 | Coarse grain, for mining inserts | |
| YT14 | P20 | 11.20-11.80 | 91 | 1550 | Suitable for semi-finishing and finishing machining of steel and cast steel, using a medium feed-rate |
| YT15 | P10 | 11.10-11.60 | 91.5 | 1500 | Suitable for semi-finishing and finishing machining of steel and cast steel and a medium feed-rate and a rather high cutting speed is to be recommended |
packing and transportation:
Interior packaging: paper box interior/plastic box etc.,
Exterior packaging: carton or wooden case.
Also could be customized.
Product advantages:
1. a lot of grades can be choose according to different application.
(Because only the suitable Grade can make the carbide tips using to be extremely effect).
2. durable performance, wear resistant and with enough impacting force against.
3. very good prices according to market situation.
4. very fast delivery time.
5. keep zero stock, all the pieces to customers will be new made.
Company profile:
Zhuzhou Kerui Cemented Carbide Co., Ltd is a professional tungsten carbide manufacturer located in Zhuzhou City, the world renowned cemented carbide base. Have been involved in this field for over 10 years, we have reach experience in production and research of carbide products.
We are also an assessed supplier by Alibaba, TUV and BV etc.
Factory picture:
Production process:
Quality inspection instruments:
Quality control:
1. All raw materials are tested in terms of density, hardness and T.R.S before use.
2. Every piece of product goes through in-process and final inspection.
3. Every batch of product can be traced.
Guarantee:
Full payment refund if any quality problem.
Promise:
100% high-quality native tungsten carbide raw materials, in strict standard quality assurance system strictly control the quality of products accordance with ISO9001, the most preferential prices, the most attentive service, the most reliable product quality for your service!
Our team:
Transaction process:
Inquiry => product conformation => quotation => price and terms => advance payment =>
Production => balance payment => delivery => after sales service
Payment method:
Transportation mode:
By express, by air, by road, by railway, by sea etc.
Our main markets:
North America: USA, Canada, Mexico
South America: Brazil, Peru, Chile
Europe: Italy, Spain, Russia, Poland, Romania, Azerbaijan, Germany
Mid East: Egypt, Turkey, Lebanon
Africa: Kenya, South Africa
FAQ:
1. How to make an inquiry?
Firstly, please mention the enquired product clearly in terms of grade, type or drawing with dimension and tolerance, quantity etc. It’s better if you could have a brief introduction of your company.
Secondly, please mention your price terms, e.g. FOB, CIF. For CIF, please name the destination port.
2. What’s your MOQ?
Our MOQ could be 1 piece or 1kg. But the price will be a little bit high when the quantity below 50kg or 2000USD.
3. What’s your delivery time?
For standard types, the delivery time is normally 25-30 days. For nonstandard type or further processed type, the delivery time is 40-45 days. If you need the goods urgently, we could try to push the production and shorten the delivery time.
