ISO Tungsten Carbide turning inserts PNUM-110408
Product introduction:
Tungsten Carbide turning inserts assembly onto the turning tools or lathe machine for
turning metal,iron,steel etc.
ISO Type: PNMM/PNUM etc;
Exellent quality of China Professional factory at ZCC carbide base twon.

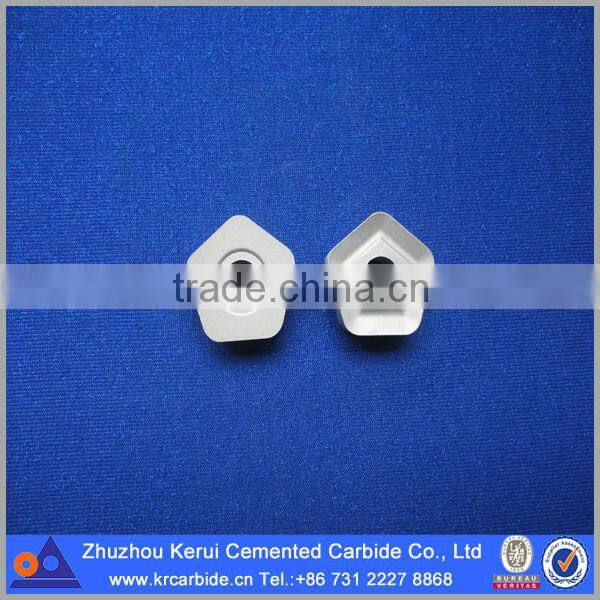

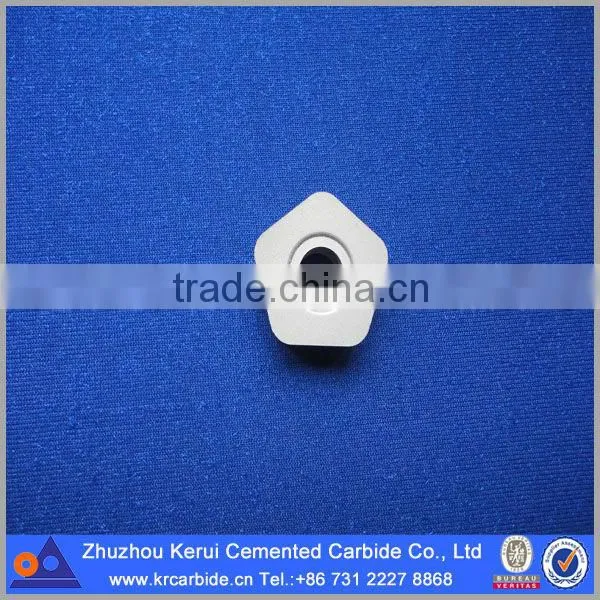

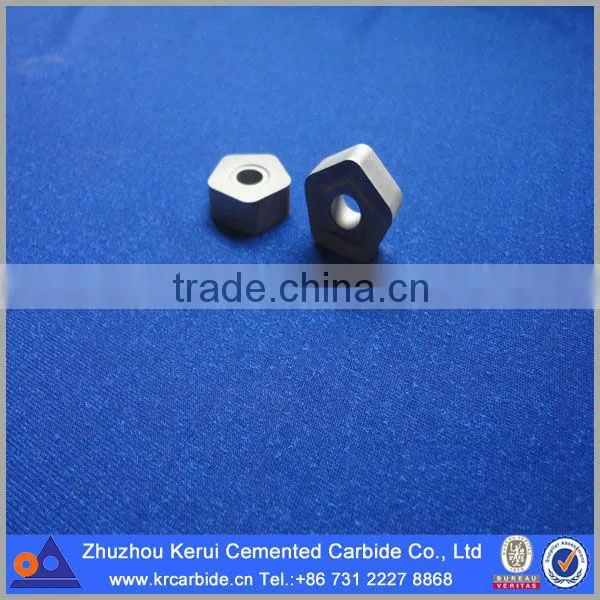

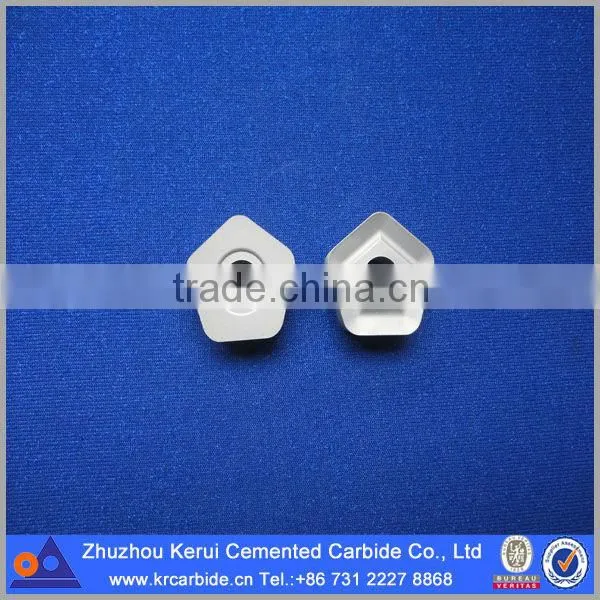

Product pictures:
Product application:
It is used to turning machine or lathe machine for turning metal,iron,steel etc.

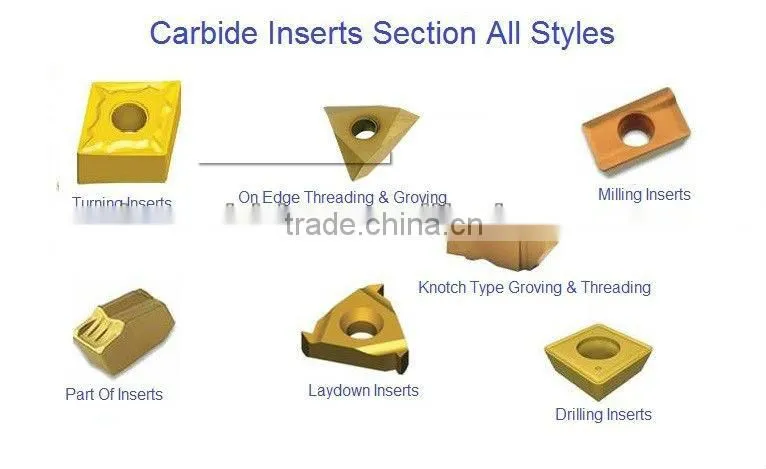

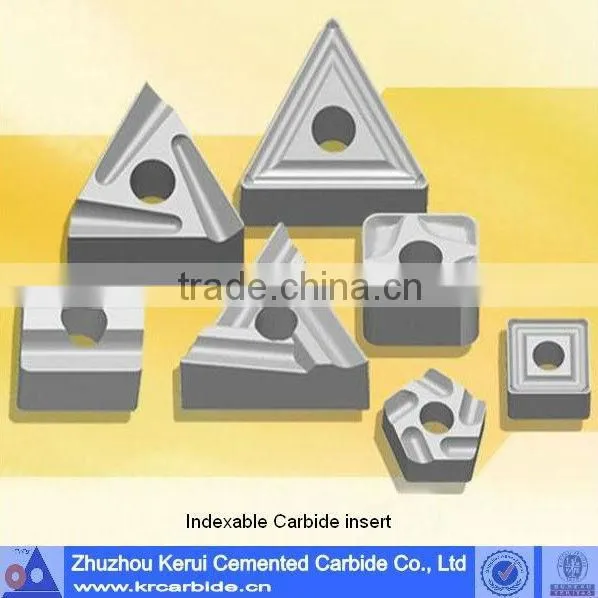

Other types of ISO tungsten carbide turning inserts:
Physical and mechanical properties of main grades:
Grade |
ISO grade |
Density |
Hardness |
TRS |
(g/cm3) |
(HRA) |
(Mpa) |
||
YG6 |
K20 |
14.95 |
91.0 |
1800 |
YG6X |
K10 |
14.95 |
92.0 |
1800 |
YKM6A |
K10 |
14.95 |
92.5 |
1800 |
YG8 |
K30 |
14.7-14.8 |
90.0 |
1950 |
YT5 |
P30 |
13 |
90.8 |
1900 |
YT14 |
P10-20 |
11.5 |
91.5 |
1500 |
YT15 |
P10-20 |
11.3 |
91.8 |
1450 |
YW1 |
M10-20 |
13.1 |
91.5 |
1600 |
YW2 |
M10-20 |
13.1 |
91.0 |
1600 |
YS25 |
P25 |
12.8 |
91.5 |
1900 |
YC30S |
P30 |
12.8 |
91.0 |
2000 |
ZP35 |
P35 |
12.8 |
91.0 |
2000 |
YC40 |
P35 |
13.2 |
90.0 |
1850 |
Reference packaging:
Plastic box of packing way:
Paper box of Packing way:
Product advantages:
1) efficient machining, good high-temperature stability;
2) easy to assembly, High Wear resistance, no crack or chipping;
3) smooth surface.
Company profile:
Zhuzhou Kerui Cemented Carbide Co., Ltd is a professional tungsten carbide manufacturer
located in Zhuzhou City, the world renowned cemented carbide base. Have been involved in this
field for over 10 years, we have reach experience in production and research of carbide products.
We are also an assessed supplier by Alibaba and BV.
Factory picture:
Production process:
Quality inspection instruments:
Quality control:
1. All raw materials are tested in terms of density, hardness and T.R.S before use.
2. Every piece of product goes through in-process and final inspection.
3. Every batch of product can be traced.
4. Gurantee: Full payment refund if any quality problem.
Certificates:
Payment method:
Transportation mode:
