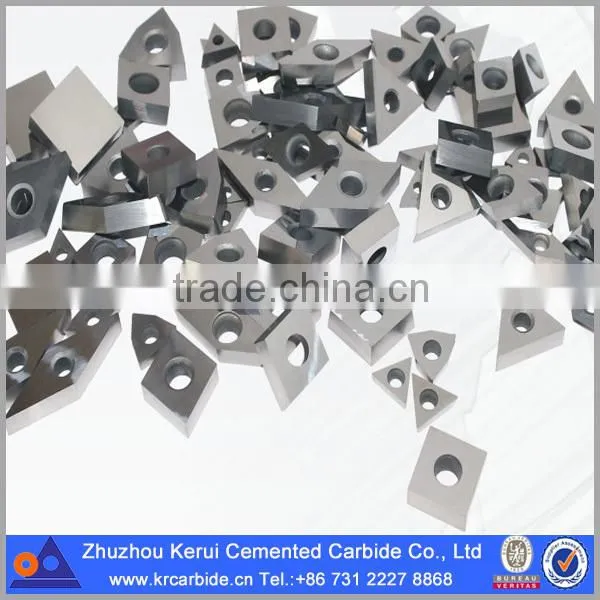

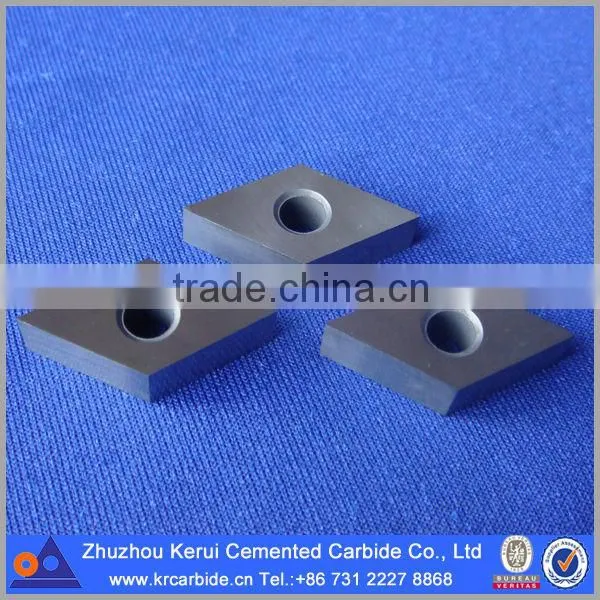

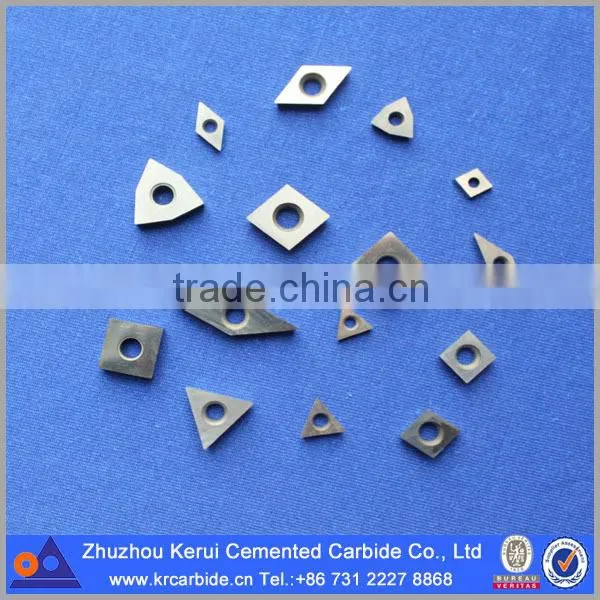

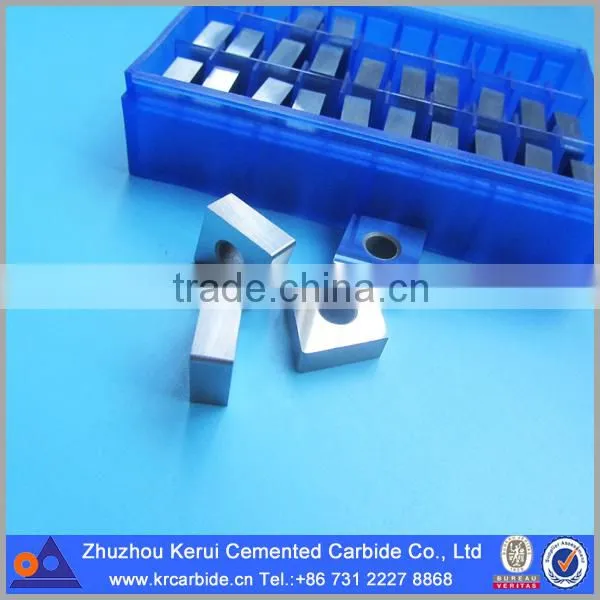

ZhuZhou factory of Solid machinery industrial parts tools tungsten carbide inserts

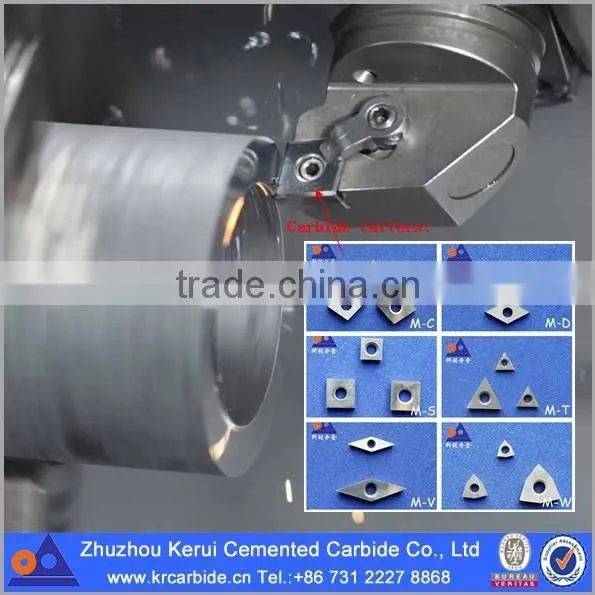

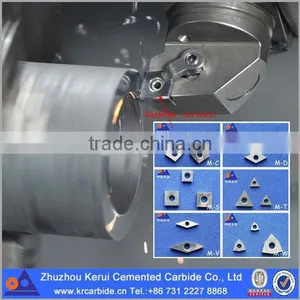

Brazed tips are to be welded onto the holder, used on the lathe for the machining of various materials
such as cast iron, steel, stainless steel, nonferrous metal etc.
Type E10 is used for threading of work piece.
Physical and mechanical properties of main grades:
| Grade | ISO Grade | Density g/cm3 | Hardness HRA | T.R.S>N/mm2 | Performances or recommended applications |
| YG6 | K20 | 14.85-15.05 | 90.5 | 1860 | Medium grain, for rough machining of non-ferrous metals |
| YG6A | K10 | 14.85-15.05 | 92 | 1600 | Fine grain, for drawing dies and woodworking tools |
| YG6X | K10 | 14.85-15.05 | 91.7 | 1800 | Fine grain, for cutting of non-ferrous metals |
| YG7 | K20 | 14.65-14.85 | 90 | 1900 | Medium grain with good wear-resistance and good impact- resistance |
| YG8 | K30 | 14.60-14.85 | 89.7 | 2060 | Medium grain, for drawing dies |
| YG10 | K40 | 14.25-14.55 | 88 | 2160 | Medium grain, for machining gray cast iron with a low hardness |
| YG11 | K40 | 14.30-14.50 | 87.5 | 2260 | Medium grain, for wear parts and mining tools |
| YG11C | 14.20-14.40 | 87 | 2260 | Coarse grain, for mining inserts | |
| YT14 | P20 | 11.20-11.80 | 91 | 1550 | Suitable for semi-finishing and finishing machining of steel and cast steel, using a medium feed-rate |
| YT15 | P10 | 11.10-11.60 | 91.5 | 1500 | Suitable for semi-finishing and finishing machining of steel and cast steel and a medium feed-rate and a rather high cutting speed is to be recommended |
How to make an inquiry?
Firstly, please mention the enquired product clearly in terms of grade, type or drawing
with dimension and tolerance, quantity etc. It’s better if you could have a brief introduction
of your company.
Secondly, please mention your price terms, e.g. FOB, CIF. For CIF, please name the
destination port.
What’s your MOQ?
Our MOQ could be 1 piece or 1kg. But the price will be a little bit high when the quantity below
50kg or 2000USD.
What’s your delivery time?
For standard types, the delivery time is normally 25~30 days. For nonstandard type or
further processed type, the delivery time is 40~45 days. If you need the goods urgently,
we could try to push the production and shorten the delivery time.
More items, please view our website:
krcarbide.en.china.cn
Thank you very much for your time.
