Standard Universal Tungsten Carbide Tips for Turning Tools

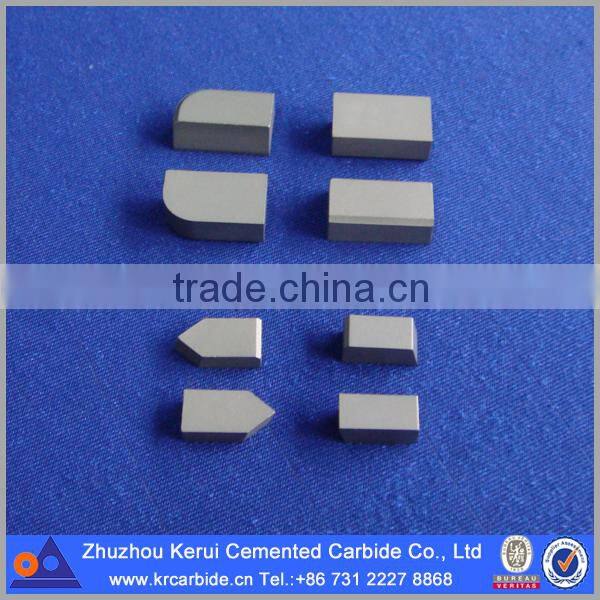

Standard Universal Tungsten Carbide Tips for Turning Tools photo-1

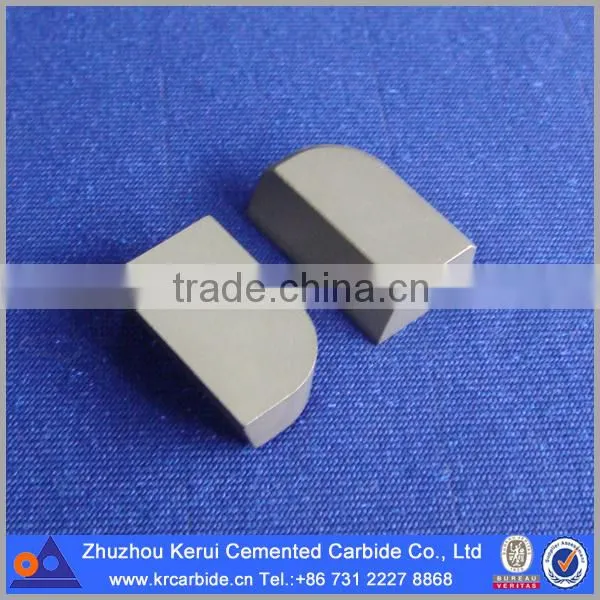

Standard Universal Tungsten Carbide Tips for Turning Tools photo-2

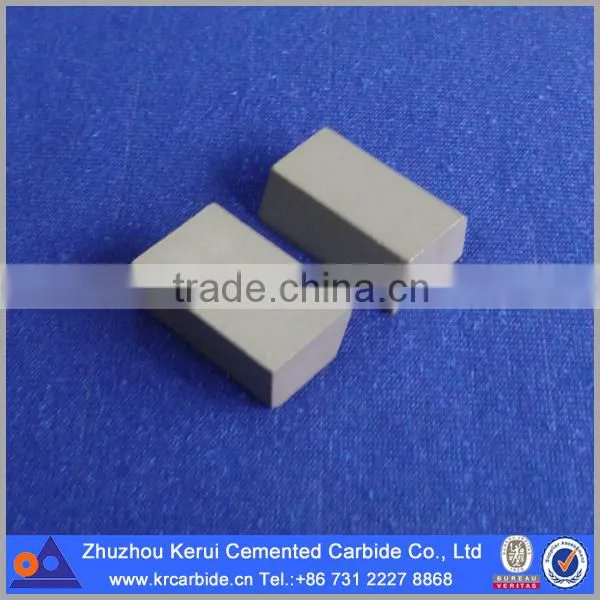

Standard Universal Tungsten Carbide Tips for Turning Tools photo-3

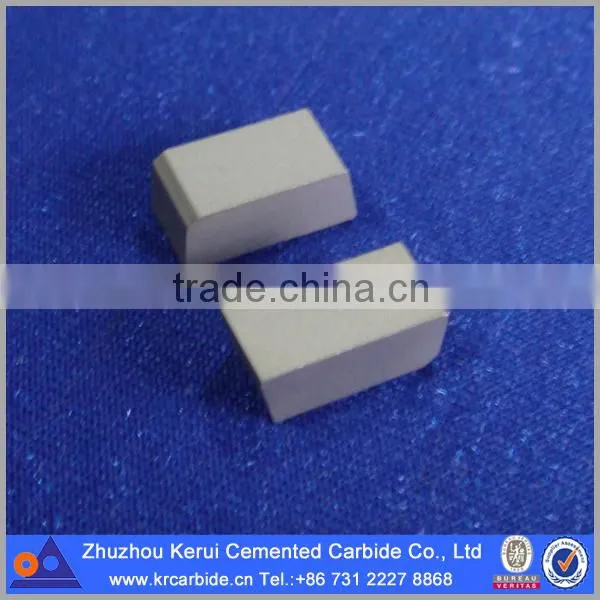

Standard Universal Tungsten Carbide Tips for Turning Tools photo-4

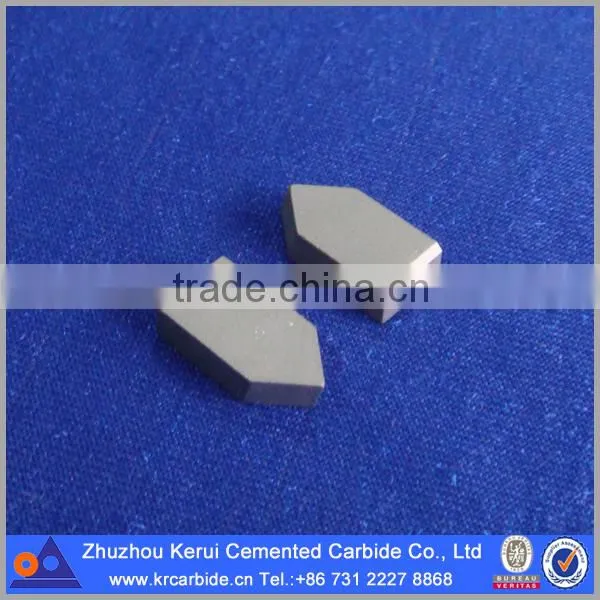

Standard Universal Tungsten Carbide Tips for Turning Tools photo-5
US$ 0.1 - 5 MOQ: 5 Units
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
Kerui
Model Number:
Drawings
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen/ShangHai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hunan, China
Brand Name Kerui
Model Number Drawings
Alloy Specification Different Grade based on different usage
Particle 0.3-5.0

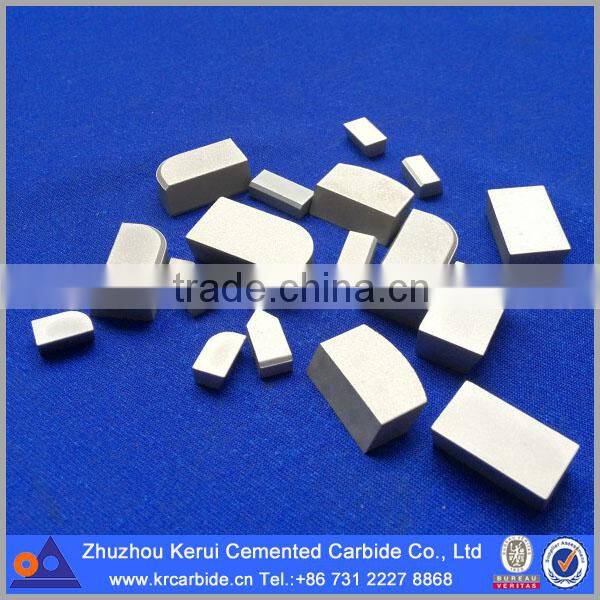

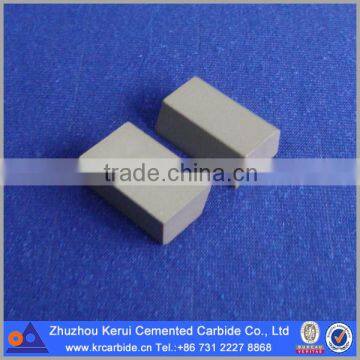

Standard Universal tungsten carbide tips for turning tools



Product Description



Tungsten Carbide Brazed tips are to be welded onto the holder, used on the lathe for the machining of various materials

such as cast iron, steel, stainless steel, nonferrous metal etc.

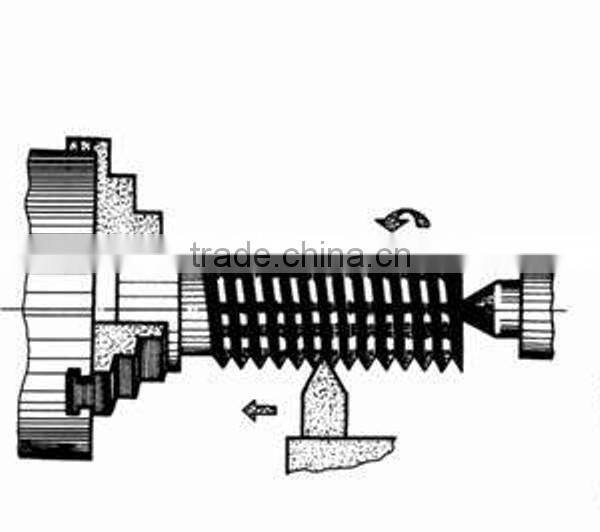

Type E10 is used for threading of work piece.

Standard Universal tungsten carbide tips for turning tools

It is used to make threading tools for threading of metal.

Standard Universal tungsten carbide tips for turning tools

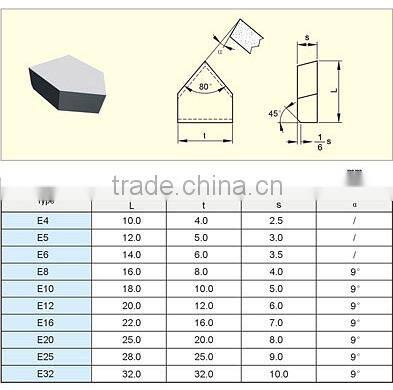

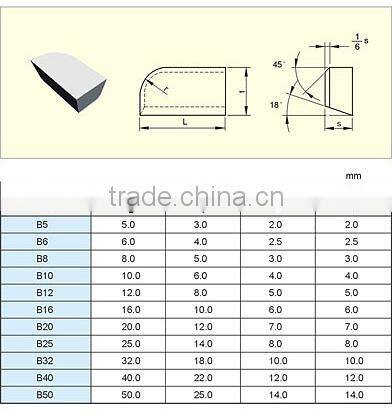

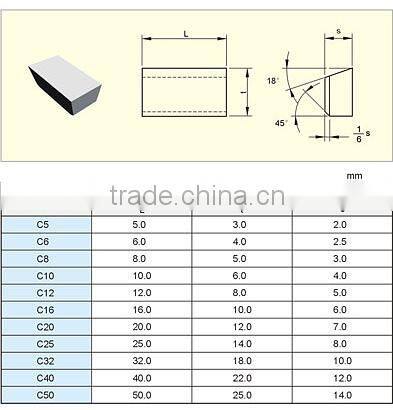

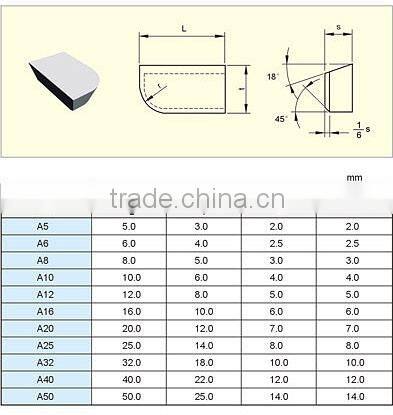

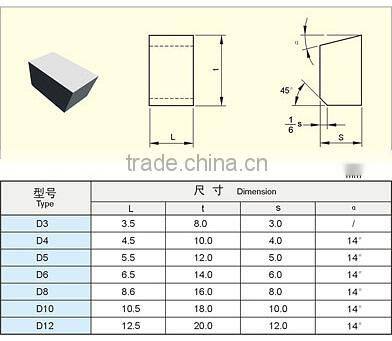

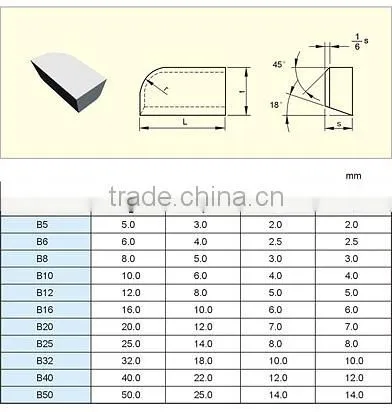

Product Drawing of ISO Standard brazing tungsten carbide tips:

Standard Universal tungsten carbide tips for turning toolsStandard Universal tungsten carbide tips for turning toolsStandard Universal tungsten carbide tips for turning toolsStandard Universal tungsten carbide tips for turning toolsStandard Universal tungsten carbide tips for turning toolsStandard Universal tungsten carbide tips for turning tools

Physical & Mechanical Properties of Main Grades
Grade ISO     Grade  Density g/cm3 Hardness HRA T.R.S>N/mm2 Performances or recommended applications
YG6 K20 14.85-15.05 90.5 1860 Medium grain, for rough machining of non-ferrous metals
YG6A K10 14.85-15.05 92 1600 Fine grain, for drawing dies and woodworking tools
YG6X K10 14.85-15.05 91.7 1800 Fine grain, for cutting of non-ferrous metals
YG7 K20 14.65-14.85 90 1900 Medium grain with good wear-resistance and good impact- resistance
YG8 K30 14.60-14.85 89.7 2060 Medium grain, for drawing dies
YG10 K40 14.25-14.55 88 2160 Medium grain, for machining gray cast iron with a low hardness
YG11 K40 14.30-14.50 87.5 2260 Medium grain, for wear parts and mining tools
YG11C   14.20-14.40 87 2260 Coarse grain, for mining inserts
YT14 P20 11.20-11.80 91 1550  Suitable for semi-finishing and finishing machining of steel and cast steel, using a medium feed-rate
YT15 P10 11.10-11.60 91.5 1500 Suitable for semi-finishing and finishing machining of steel and cast steel and a medium feed-rate and a rather high cutting speed is to be recommended



Packaging & Shipping

 Standard Universal tungsten carbide tips for turning tools

Our Services

 Standard Universal tungsten carbide tips for turning tools

Standard Universal tungsten carbide tips for turning tools

Standard Universal tungsten carbide tips for turning tools

Various tungsten carbide inserts we can produce based on your samples or drawing:

Standard Universal tungsten carbide tips for turning tools

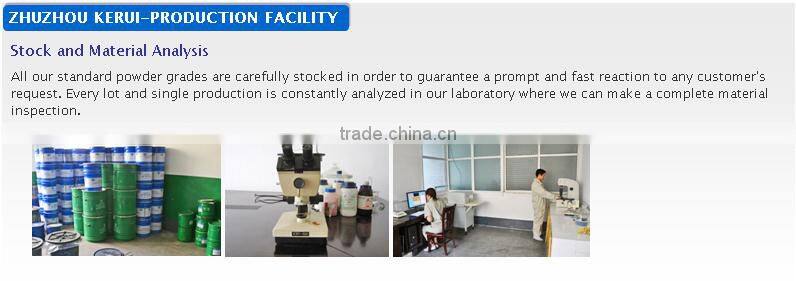

Company Information

 Standard Universal tungsten carbide tips for turning tools

FAQ

 1.     How to make an inquiry?

Firstly, please mention the enquired product clearly in terms of grade, type or drawing with dimension and tolerance, quantity etc. It’s better if you could have a brief introduction of your company.

Secondly, please mention your price terms, e.g. FOB, CIF. For CIF, please name the destination port.



2.     What’s your MOQ?

Our MOQ could be 1 piece or 1kg. But the price will be a little bit high when the quantity below

50kg or 2000USD.



3.     What’s your delivery time?

For standard types, the delivery time is normally 25-30 days. For nonstandard type or further processed type, the delivery time is 40-45 days. If you need the goods urgently, we could try to

push the production and shorten the delivery time.
