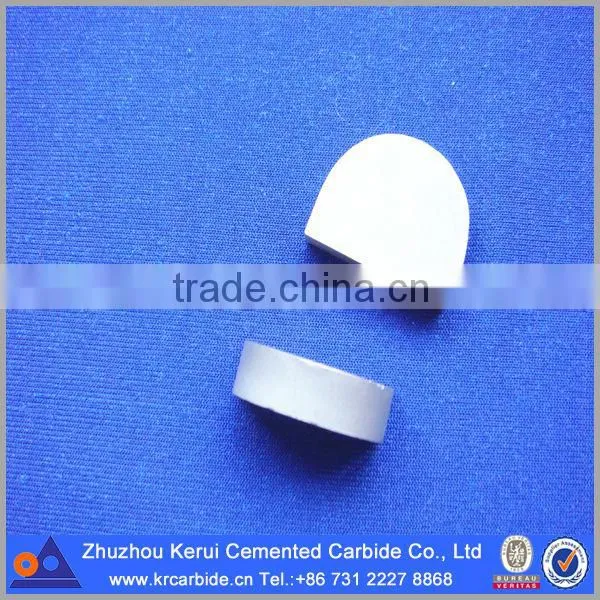

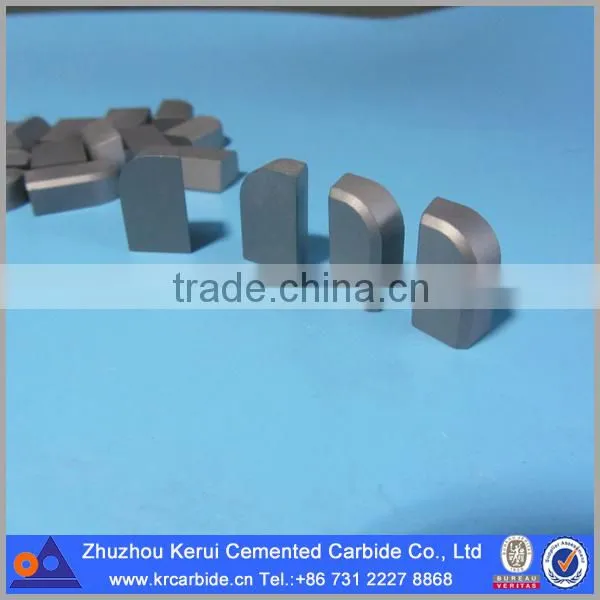

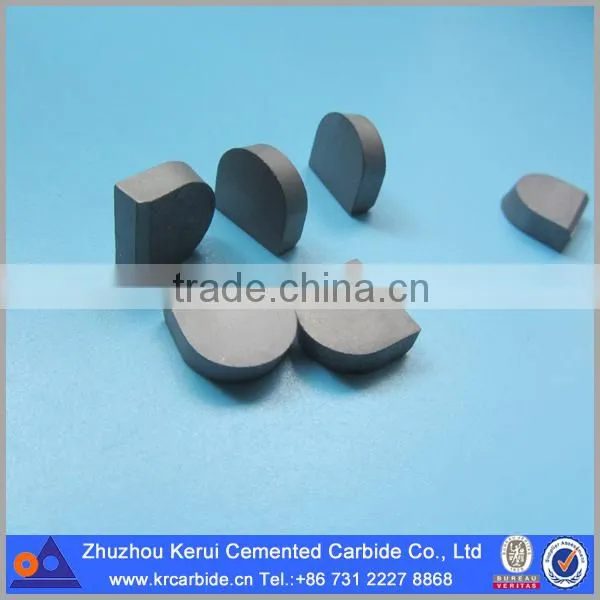

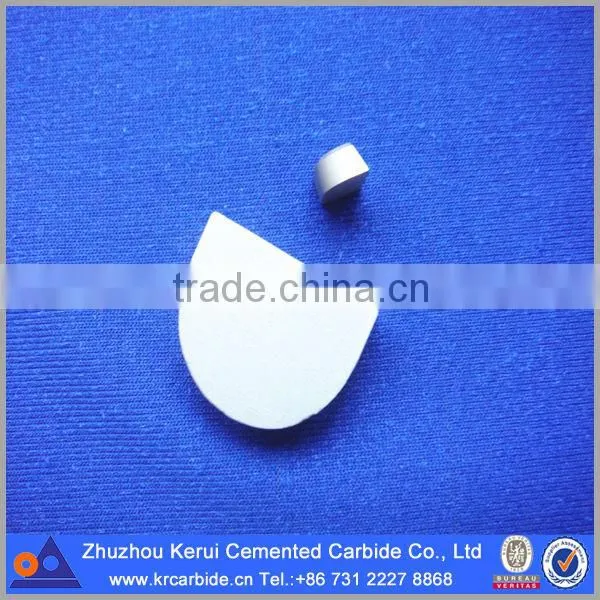

Extruded Cemented Carbide Saw Tips
We are Professional manufacture of brazed Carbide tips, stone cutting inserts,sand making machine alloy strip,wear parts,carbide mining tools and OEM production as drawing and request with high quality.
Types of ISO standard brazed Carbide tips: A,B,C,D,E and such types China standard;
Optional Grades of Carbide brazed tips: K10/K20/K30/P10/P20/P30/M10,M20 etc;
Application fields of Carbide brazed tips: for the turning of cast iron,steel,stainless steel,nonferrous metal and nonmetal.
1.Advantages of Our Extruded Cemented Carbide Saw Tips :
1.stable and trustable quality;
2.made from 100% virgin raw material;
3.all products go through in-process and final inspection;
4.free online technical service available.
Our Business scope has exported to North America,Europe,Mid-East and Africa.
We always expect long term relationship with customers, you can find the best prices, quality and service here and it will be simple and easy for you to do business with us.
2.Physical and mechanical properties of main grades:
Grade |
ISO grade |
Density | Hardness | TRS |
(g/cm3) |
(HRA) |
(Mpa) |
||
YG6 |
K20 |
14.95 |
91.0 |
1800 |
YG6X |
K10 |
14.95 |
92.0 |
1800 |
YKM6A |
K10 |
14.95 |
92.5 |
1800 |
YG8 |
K30 |
14.7-14.8 |
90.0 |
1950 |
YT5 |
P30 |
13 |
90.8 |
1900 |
YT14 |
P10-20 |
11.5 |
91.5 |
1500 |
YT15 |
P10-20 |
11.3 |
91.8 |
1450 |
YW1 |
M10-20 |
13.1 |
91.5 |
1600 |
YW2 |
M10-20 |
13.1 |
91.0 |
1600 |
YS25 |
P25 |
12.8 |
91.5 |
1900 |
YC30S |
P30 |
12.8 |
91.0 |
2000 |
ZP35 |
P35 |
12.8 |
91.0 |
2000 |
YC40 |
P35 |
13.2 |
90.0 |
1850 |
3.Related Products details:

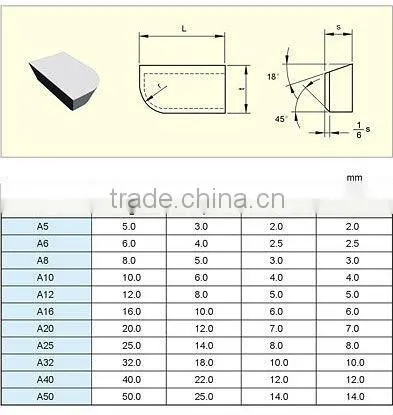

1)type A:
Aplication fields:
A1:For making periphery turning tools, boring tools and grooving tools.
A2: for making boring tools and end turning tools.
A3: For making end and periphery turning tools.
A4: for making periphery turning tools, boring tools and end turning tools.
A5: for making straight shank periphery turning tools. Boring through tools and mounting type end milling tools.
A6: for making boring tools and periphery turning tools.
2)type B:
4.Packing:
packing tips in a plastic pallet as below,and then transport by Carton.
5.Quality control system:
Everything single piece will be inspected in and after production to make sure it can match your requests and we guarantee full payment returned if any quality problems.
Note: Please kindly advise the grade or using purpose for quotation.
6.About Us:
7.Please feel free contact me for any Inquiries:
Tel: +86-731-22278868
