Wolframe Carbide brazed turning inserts type C122
Product introduction:
Type |
Dimension(mm) |
Approx unit weight(g) |
|||||||
l |
t |
s |
rε |
e |
YG6 |
YG8 |
YT5 |
YT14 |
|
C110 |
10.0 |
4.0 |
3.0 |
0.5 |
/ |
1.5 |
1.5 |
1.3 |
1.2 |
C116 |
16.0 |
6.0 |
4.0 |
0.5 |
0.8 |
4.8 |
4.7 |
4.0 |
3.7 |
C120 |
20.0 |
8.0 |
5.0 |
0.5 |
0.8 |
10.1 |
9.9 |
8.2 |
7.7 |
C122 |
22.0 |
10.0 |
6.0 |
0.5 |
0.8 |
15.6 |
15.3 |
13.7 |
12.1 |
C125 |
25.0 |
12.0 |
7.0 |
0.8 |
0.8 |
25.0 |
24.5 |
21.3 |
19.1 |

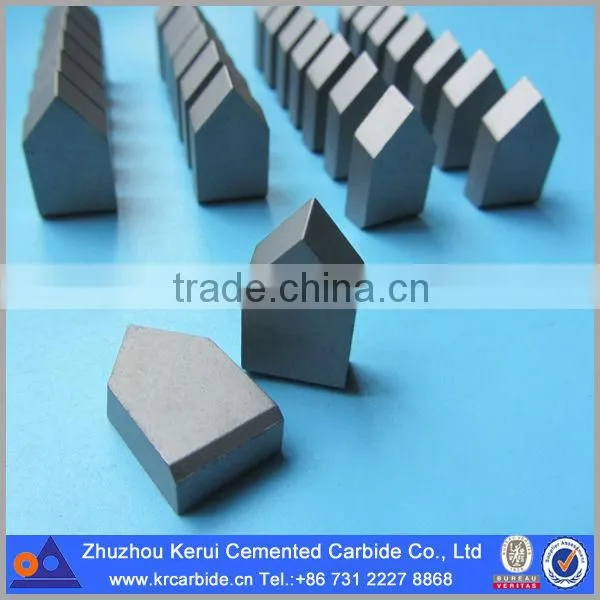

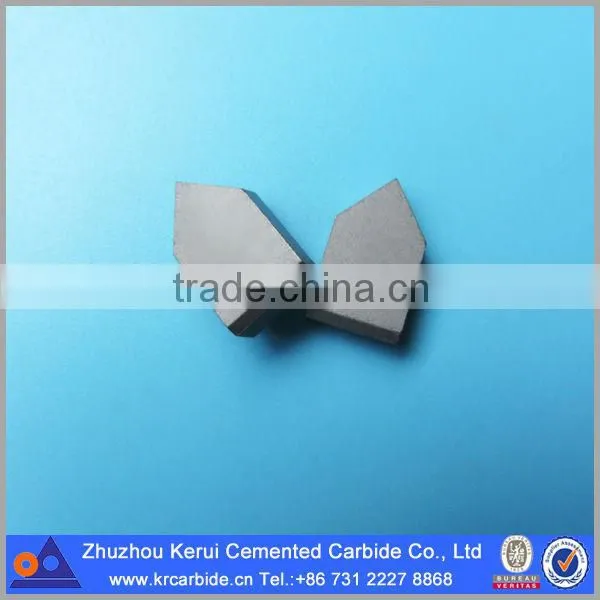

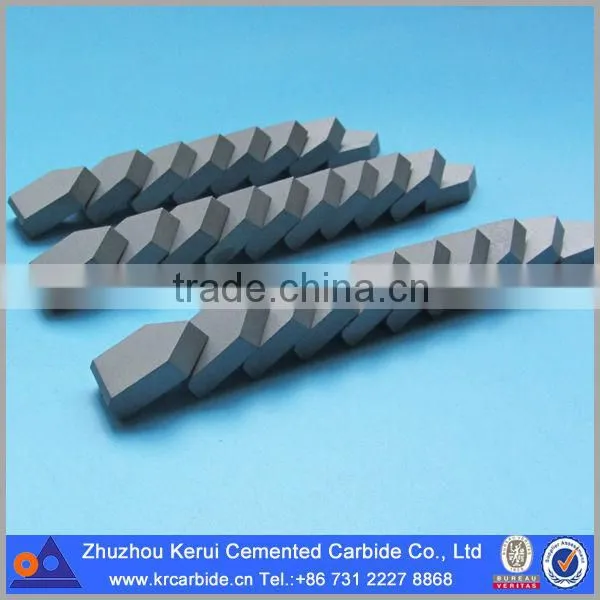

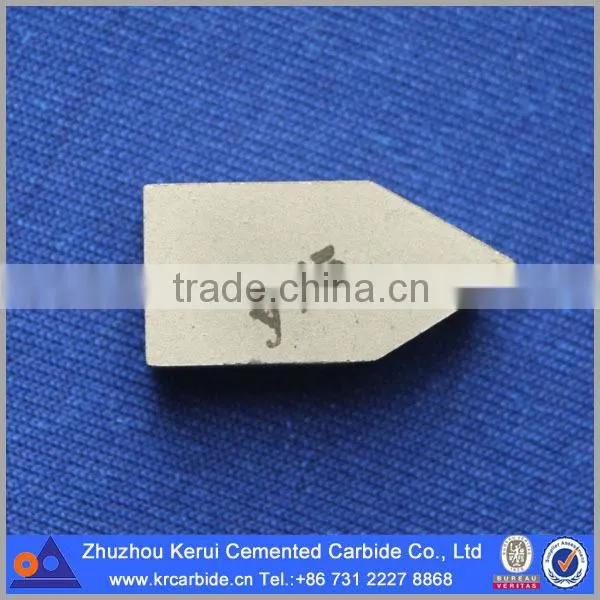

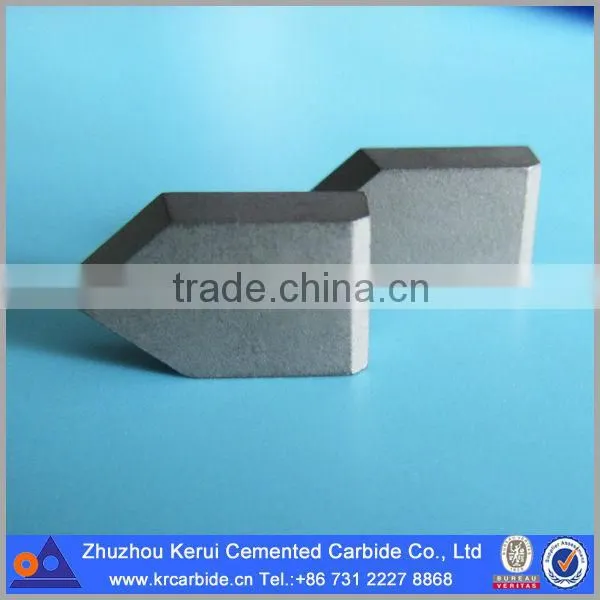

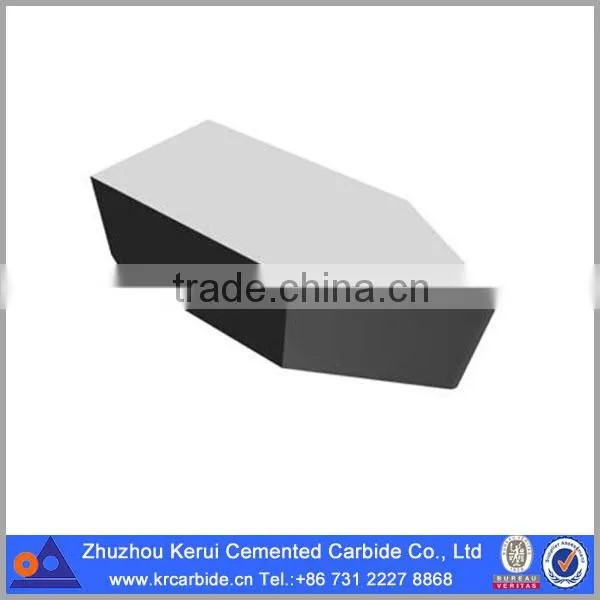

Product picture:

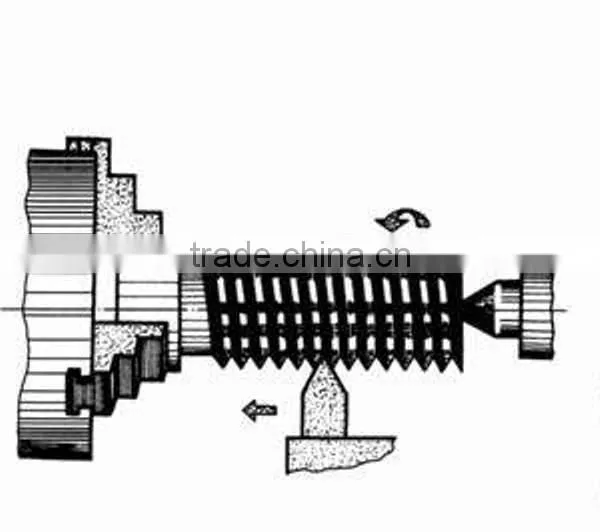

Product application:
It is used for turning of cast iron,steel, stainless steel,nonferrous metal.

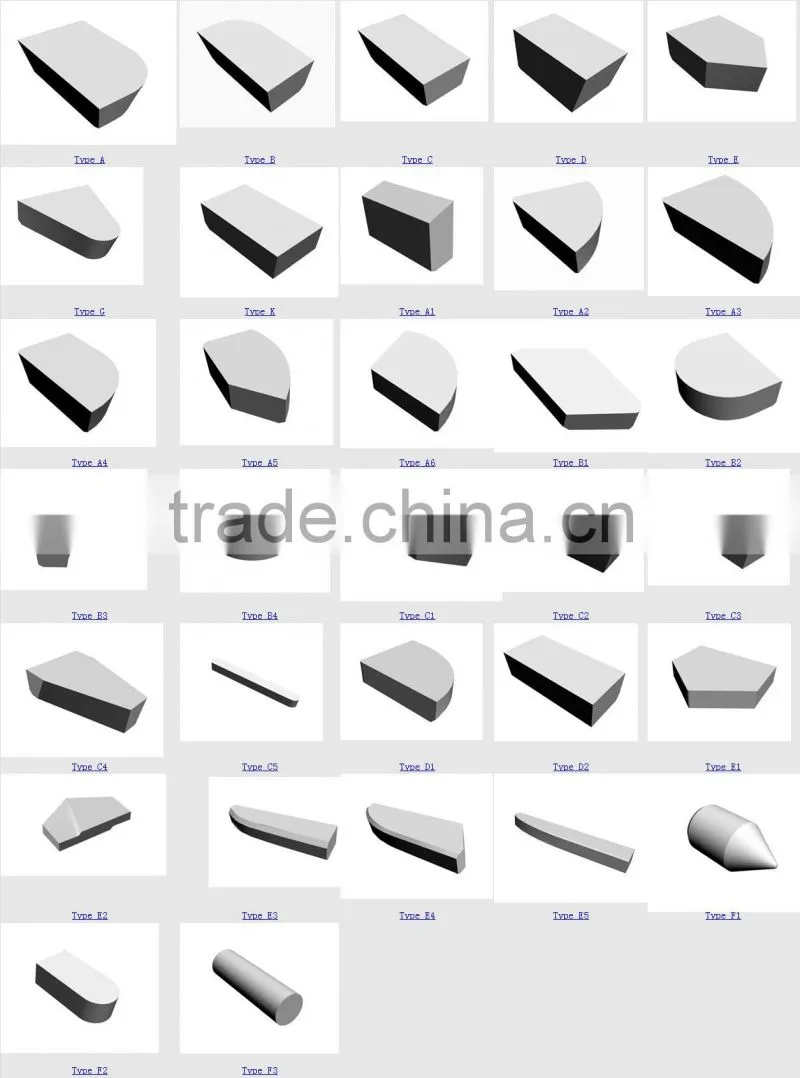

Other types of Wolframe Carbide brazed turning inserts:
Physical and mechanical properties of main grades:
Reference packaging for our Wolframe Carbide brazed turning inserts C122:
Product advantages for our Wolframe Carbide brazed turning inserts C122:
1) efficient machining, good high-temperature stability;
2) easy to weld, no crack or chipping;
3) smooth surface of work piece.
Tips for use of brazed cutting tool:
1) structure of brazed cutting tool should have enough rigidity;
2) the brazed tips should be fixed strongly onto the holder;
3) check and ensure good condition of the holder before brazing;
4) choose the proper welding material;
5) choose the proper welding flux;
6) use correct sharpening method;
7) mount the brazed cutting tool properly;
8) resharpening the brazed cutting tool properly.
Company profile:
Zhuzhou Kerui Cemented Carbide Co., Ltd is a professional tungsten carbide manufacturer
located in Zhuzhou City, the world renowned cemented carbide base. Have been involved in this
field for over 10 years, we have reach experience in production and research of carbide products.
We are also an assessed supplier by Alibaba and BV.
Factory picture:
Production process:
Quality inspection instruments:
Quality control:
1. All raw materials are tested in terms of density, hardness and T.R.S before use.
2. Every piece of product goes through in-process and final inspection.
3. Every batch of product can be traced.
4. Gurantee: Full payment refund if any quality problem.
Certificates:
Payment method:
Transportation mode:
By express, by air, by road, by railway, by sea etc.
FAQ:
How to make an inquiry?
Firstly, please mention the enquired product clearly in terms of grade, type or drawing with dimension and tolerance, quantity etc. It’s better if you could have a brief introduction of your company.
Secondly, please mention your price terms, e.g. FOB, CIF. For CIF, please name the destination port.
