Multifunctional Stainless Crusher // Hammer Mill, Drug Mill, Food Mill

Multifunctional Stainless Crusher // Hammer Mill, Drug Mill, Food Mill thumbnail-1
Multifunctional Stainless Crusher // Hammer Mill, Drug Mill, Food Mill thumbnail-2
Multifunctional Stainless Crusher // Hammer Mill, Drug Mill, Food Mill thumbnail-3
Multifunctional Stainless Crusher // Hammer Mill, Drug Mill, Food Mill thumbnail-4
Multifunctional Stainless Crusher // Hammer Mill, Drug Mill, Food Mill thumbnail-5
Multifunctional Stainless Crusher // Hammer Mill, Drug Mill, Food Mill thumbnail-6
Multifunctional Stainless Crusher // Hammer Mill, Drug Mill, Food Mill photo-1
Multifunctional Stainless Crusher // Hammer Mill, Drug Mill, Food Mill photo-2

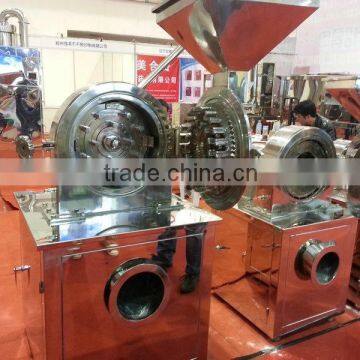

Multifunctional Stainless Crusher // Hammer Mill, Drug Mill, Food Mill photo-3

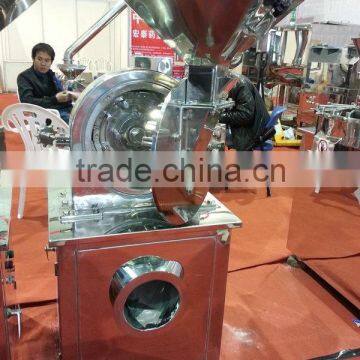

Multifunctional Stainless Crusher // Hammer Mill, Drug Mill, Food Mill photo-4
Multifunctional Stainless Crusher // Hammer Mill, Drug Mill, Food Mill photo-5

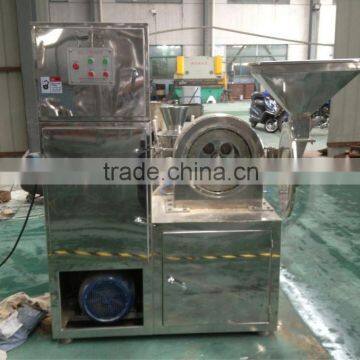

Multifunctional Stainless Crusher // Hammer Mill, Drug Mill, Food Mill photo-6
US$ 3,000 - 5,300 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Pasen
Model Number:
PSF20-60
Contact Supplier Request Quote Chat Now
Zhengzhou Pasen Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
my nearest port is Qingdao Port we also can deliver the goods to Tianjin port shanghai port Guangzhou port etc.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name Pasen
Model Number PSF20-60
Type Other, Grain Processing Equipment, Grain processing equipment
After-sales Service Provided Engineers available to service machinery overseas

Multifunctional stainless crusher // hammer mill, drug mill, food mill //

stainess steel small grinding machine for grain and seasoning

Application:

Mainly used in pharmaceutical, chemical, food (example: ginger, chili, pepper, oil, wheat, soy, star anise, cinnamon, dried vegetables, grain) and other low hardness material crushing process, fineness adjusted between 30-150 mesh, with high yield, fine grain size, low noise, low energy consumption, easy maintenance, easy installation, etc., especially for oily, viscous, heat-sensitive, low hardness and other fibrous materials crushing process.

Structure and working principle:

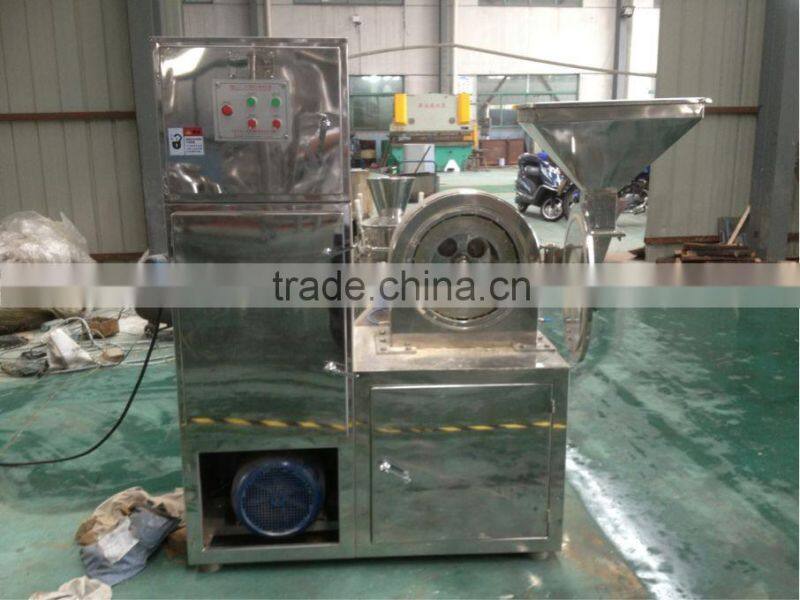

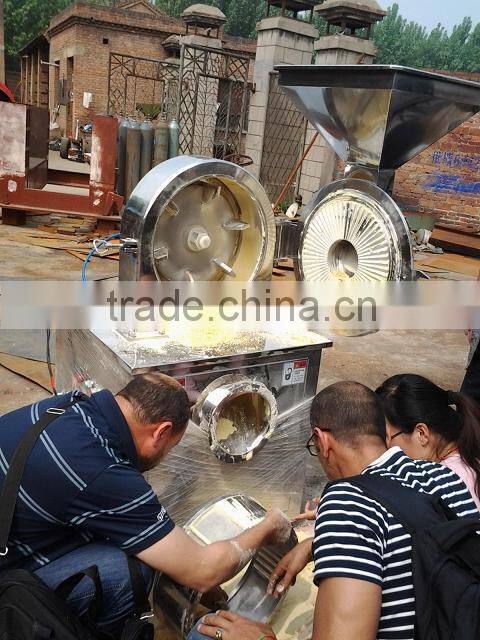

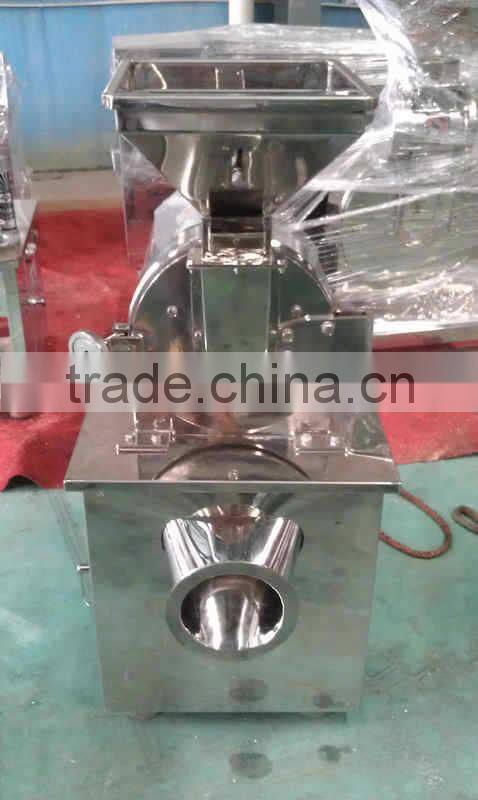

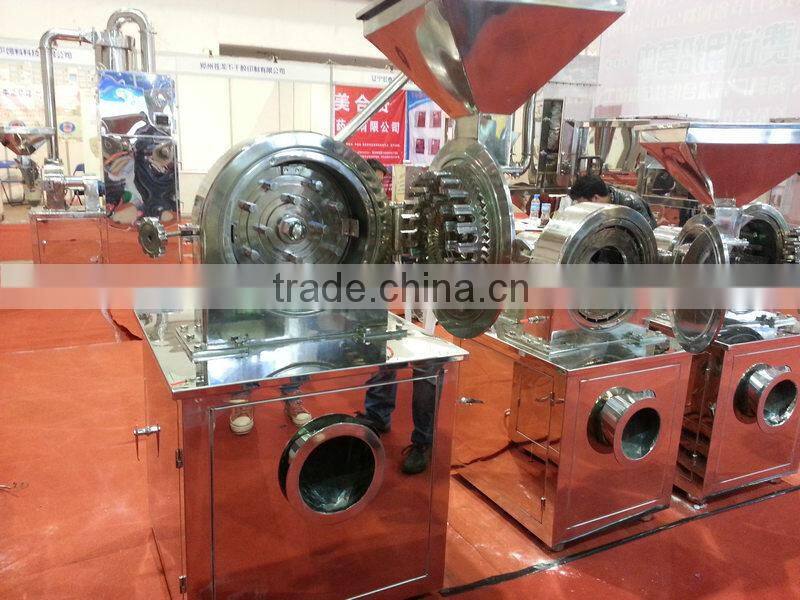

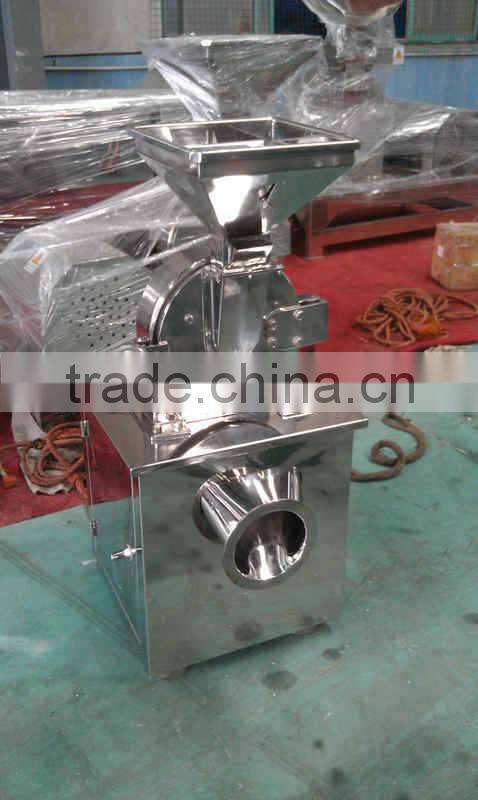

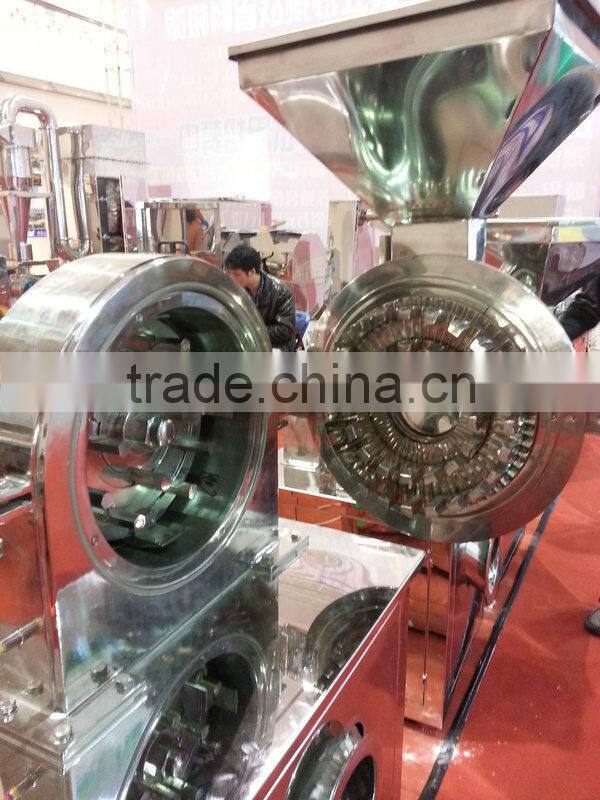

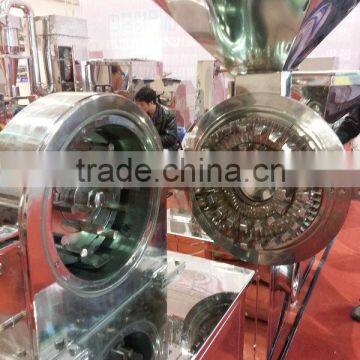

1, the structure: It includes main cabinet, door, turbo, spindle, screen, pulleys and motors and other component parts.
2, Working principle:

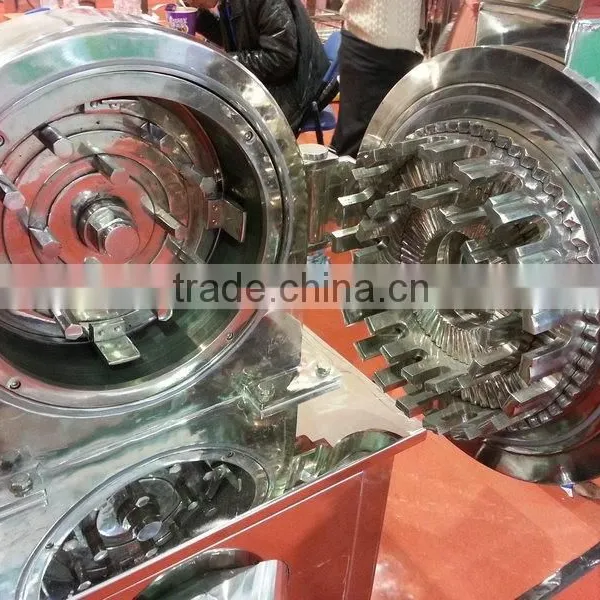

When it works, the motor drive shaft and the turbine speed rotation. Ring on the turbo and the screen broken grinding blocks, grinding vice, when the material from the hopper into the machine chamber, the material in the rotation of the turbine air flow closely friction and impact strongly on the inside of the turbine blades and vanes the gap between the blocks and grinding grinding again. In the crushed material while inhaling a lot of air turbine, which has played a cooling airflow machines, grinding materials and fine material transfer effect. Depends on the fineness of grinding material properties of the material and the mesh size, and the throughput of the material and the air.
3, Bearing parts equipment with a special labyrinth seal, can effectively prevent dust from entering the bearing cavity, thus extending the service life of the bearing. Machine equipped with a silicone rubber door seals, no dust leak and contaminate the operating environment.



Features:



1, Strong crushing ability, low energy consumption, product fineness relatively small.
2, large crushing chamber, turbo pressure generated during operation of high-strength, not only to increase production capacity and reduce the over-crush phenomenon, and can effectively avoid the material produced in the grinding process on the screen deposition and clogging. You can also maximize strength and pressure to take away the heat generated by crushing cavity.
3, due to enhanced shear, and therefore for the fibrous material and the grinding capacity equipment than the average high.
4, screen installation convenient, reliable positioning, are used plug-in. Will ring sieves with respect to the form of life a lot higher.
5, Built-in motor, lower the machine's center of gravity, effectively reducing device noise.



 Main technical specification:



MODEL

PSF-20

PSF-30

PSF-40

PSF-60

Output(kg/H)

60-150

100-300

160-800

500-1500

Rotated Speed

(r/min)

4500

3800

3400

2800

Final Mesh size

60-150

  60-120

60-120

60-120

Crusher Motor(kw)

4

5.5

11

15

Dust proof motor

1.5

1.5

1.5

2.2

Machine size mm

550*600*1250

600*700*1450

800*900*1550

1000*900*1680

Weight kg

180

250

360

550















































Multifunctional stainless crusher // hammer mill, drug mill, food millMultifunctional stainless crusher // hammer mill, drug mill, food millMultifunctional stainless crusher // hammer mill, drug mill, food millMultifunctional stainless crusher // hammer mill, drug mill, food millMultifunctional stainless crusher // hammer mill, drug mill, food millMultifunctional stainless crusher // hammer mill, drug mill, food mill
