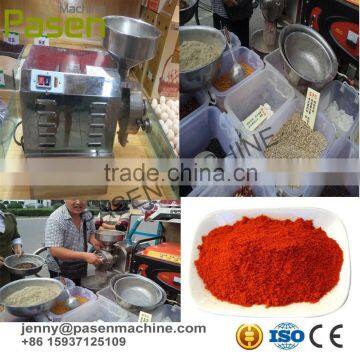

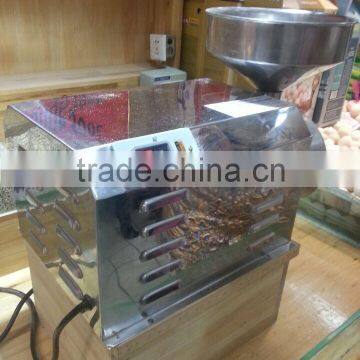

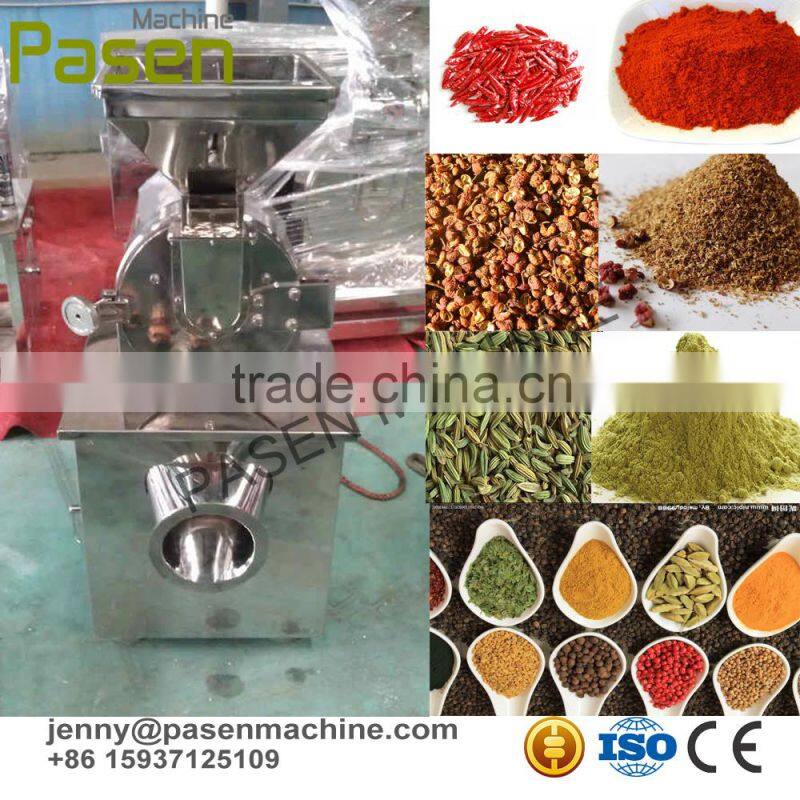

high efficiency industrial spice drying and grinding machine
Application:

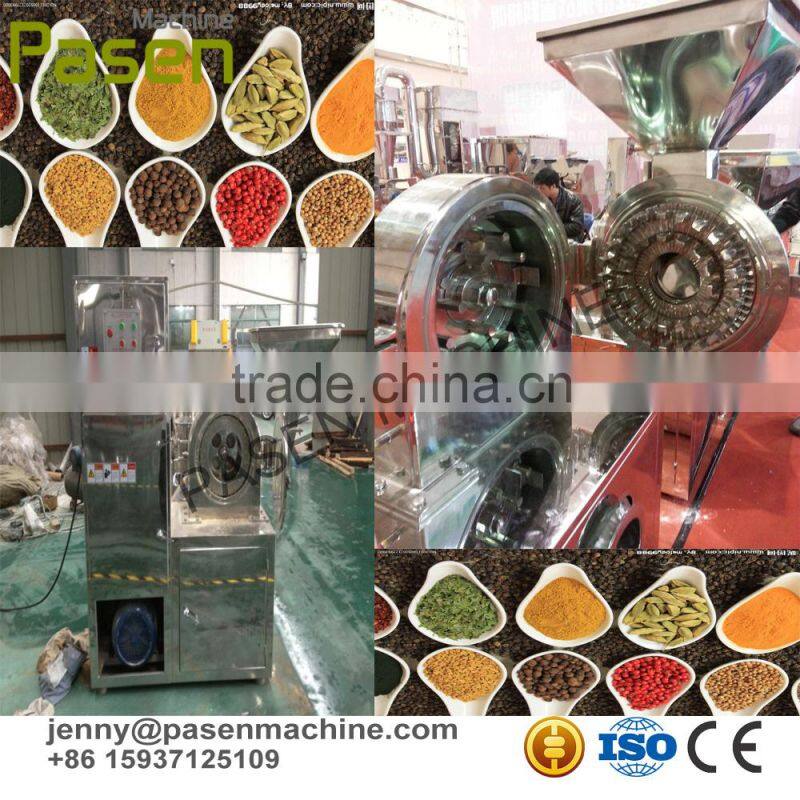

Mainly used in pharmaceutical, chemical, food (example: ginger, chili, pepper, oil, wheat, soy, star anise, cinnamon, dried vegetables, grain) and other low hardness material crushing process, fineness adjusted between 30-150 mesh, with high yield, fine grain size, low noise, low energy consumption, easy maintenance, easy installation, etc., especially for oily, viscous, heat-sensitive, low hardness and other fibrous materials crushing process.
Structure and working principle:

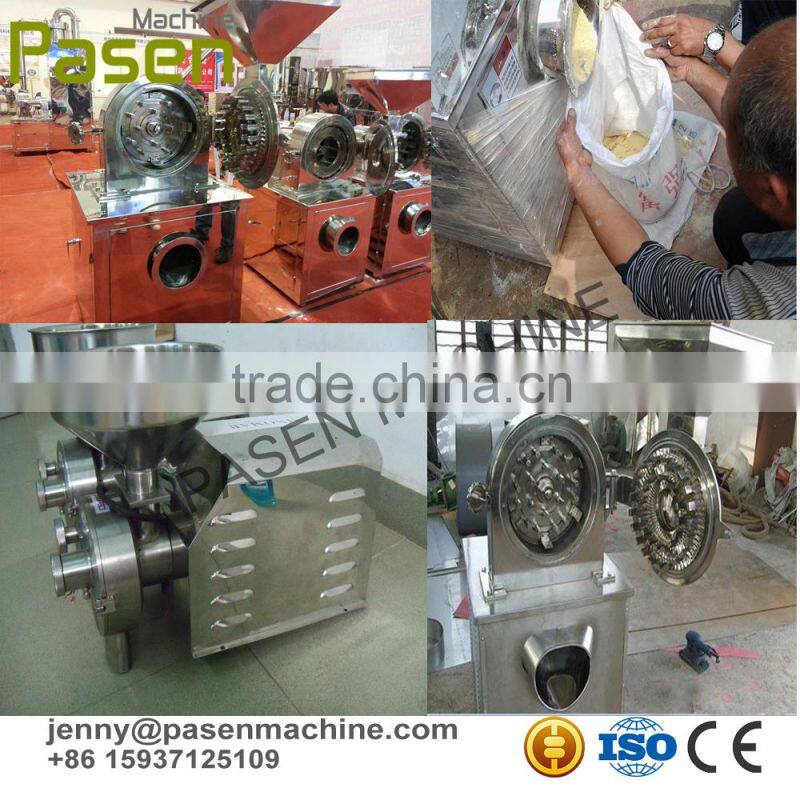

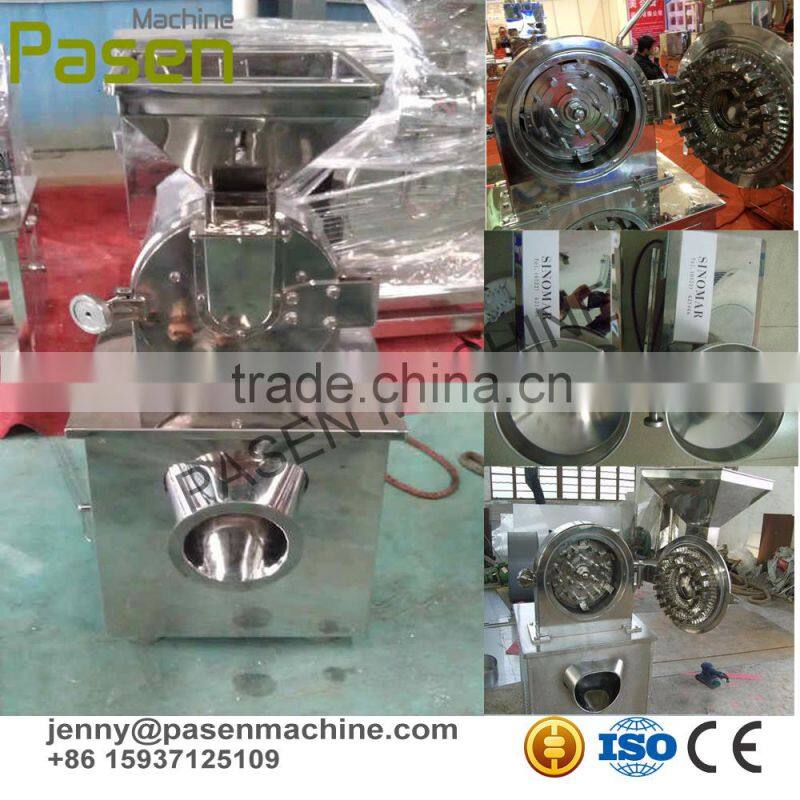

1, the structure: It includes main cabinet, door, turbo, spindle, screen, pulleys and motors and other component parts.
2, Working principle:
When it works, the motor drive shaft and the turbine speed rotation. Ring on the turbo and the screen broken grinding blocks, grinding vice, when the material from the hopper into the machine chamber, the material in the rotation of the turbine air flow closely friction and impact strongly on the inside of the turbine blades and vanes the gap between the blocks and grinding grinding again. In the crushed material while inhaling a lot of air turbine, which has played a cooling airflow machines, grinding materials and fine material transfer effect. Depends on the fineness of grinding material properties of the material and the mesh size, and the throughput of the material and the air.
3, Bearing parts equipment with a special labyrinth seal, can effectively prevent dust from entering the bearing cavity, thus extending the service life of the bearing. Machine equipped with a silicone rubber door seals, no dust leak and contaminate the operating environment.
Features:
1, Strong crushing ability, low energy consumption, product fineness relatively small.
2, large crushing chamber, turbo pressure generated during operation of high-strength, not only to increase production capacity and reduce the over-crush phenomenon, and can effectively avoid the material produced in the grinding process on the screen deposition and clogging. You can also maximize strength and pressure to take away the heat generated by crushing cavity.
3, due to enhanced shear, and therefore for the fibrous material and the grinding capacity equipment than the average high.
4, screen installation convenient, reliable positioning, are used plug-in. Will ring sieves with respect to the form of life a lot higher.
5, Built-in motor, lower the machine's center of gravity, effectively reducing device noise.
Main technical specification:
MODEL |
PSF-20 |
PSF-30 |
PSF-40 |
PSF-60 |
|
Output(kg/H) |
60-150 |
100-300 |
160-800 |
500-1500 |
|
|
Rotated Speed (r/min) |
4500 |
3800 |
3400 |
2800 |
|
Final Mesh size |
60-150 |
60-120 |
60-120 |
60-120 |
|
Crusher Motor(kw) |
4 |
5.5 |
11 |
15 |
|
Dust proof motor |
1.5 |
1.5 |
1.5 |
2.2 |
|
Machine size mm |
550*600*1250 |
600*700*1450 |
800*900*1550 |
1000*900*1680 |
|
Weight kg |
180 |
250 |
360 |
550 |
|
Packing & shipping
a. Machines are wrapped in plastic film first before packing, which is to avoid moisture on the sea.
b.The machines are putted in strong iron sheet case/wooden case which is free of fumigation, lined with metal wire if necessary.
Quality Guarantee Terms
Quality guarantee term is for one year. Malfunctions which are caused by machineself and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
After-sales Service
All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.
a, Before sending the machine, we will test and adjust, so you can use directly when you get it.
b, Operation video & instruction will be sent to clients, to help them use the machines better.
Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.
a, Any problems occur while using, professional advice will be offered.
b, All kinds of frequently used parts are supplied all the year round.
