10000Lbs Electric Winch for Car

10000Lbs Electric Winch for Car thumbnail-1
10000Lbs Electric Winch for Car photo-1
US$ 260 - 290 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Lift
Model Number:
sec-10000w
Contact Supplier Request Quote Chat Now
Yiwu Weigang Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Lift
Model Number sec-10000w
Power Source Electric
Application Other, car
Capacity 10000LB



Product Description

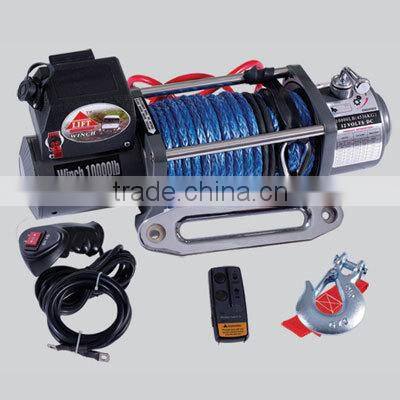

                                             10000Lbs Electric Winch for Car





SEC10000W LBS(12/24V)
10000 lbs Heavy Duty Electric Winch

10000 LBS FEATURES AND SPECIFICATIONS
Rated Line Pull 10000LBS (4536kgs) single line
Motor 5.5hp/4.0kw 12V 3.6hp/2.68kw 24V Series Wound
Control Remote switch, 12ft(3.7m)lead
Gear train 3 Stage Planetary
Gear train ratio 148.2:1
Clutch Sliding Ring Gear
Braking Action Automatic In-The-Drum
Drum Size Φ64mm×L223.5mm
Cable Φ8.3mm,28mm
Fairlead 4-Way Roller Fairlead
Remote Control Included
Battery Recommended:650CCA minimum for winching
Battery Leads 2 gauge,72"(183mm)
Finish Dark gray powder coat
Overall Dimensions 21.1"×6.3"×8.6"(537mm×160mm×218mm)
Mounting Bolt Pattern 254mm×114.3mm
Weight N.W.29kg     G.W.31kg
Packing Size 57×19×34.5cm    1PC/CTN


10000LBS LINE SPEED AND AMP DRAW (FIRST LAYER) 24V
Line Pull
lbs
 0
2000
4000
6000
 8000 10000
kg
 0
907
1814
2721
 3628 4536
Line Speed
ft/min
 38.9 16.3 12.3 10.4 8.6 5.8
m/min
 11.9 4.9 3.7 3.2 2.6 1.8
Motor
Amps
 50 100 145 190 230 290

10000LBS LINE SPEED AND AMP DRAW (FIRST LAYER) 12V
Line Pull
lbs
 0
2000
4000
6000
 8000 10000
kg
 0
907
1814
2721
 3628 4536
Line Speed
ft/min
 35.4 14.8 11.2 9.5 7.87 5.25
m/min
 10.8 4.5 3.4 2.9 2.4 1.6
Motor
Amps
 75 180 220 290 360 450


10000LBS LINE PULL AND CABLE CAPACITY
Layers of cable 1 2 3 4
Rated line pull per layer lbs 10000 7930 6566 5604
kg 4536 3596 2977 2541
Cumulative cable capacity ft 17 38.7 64.6 91.8
m 5.2 11.8 19.7 28

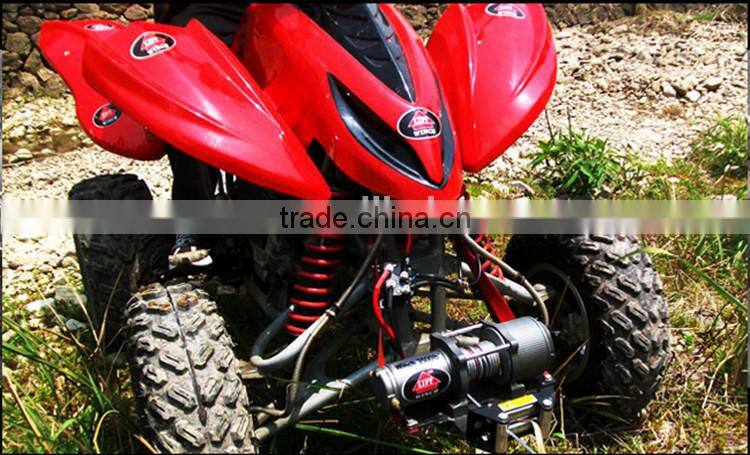

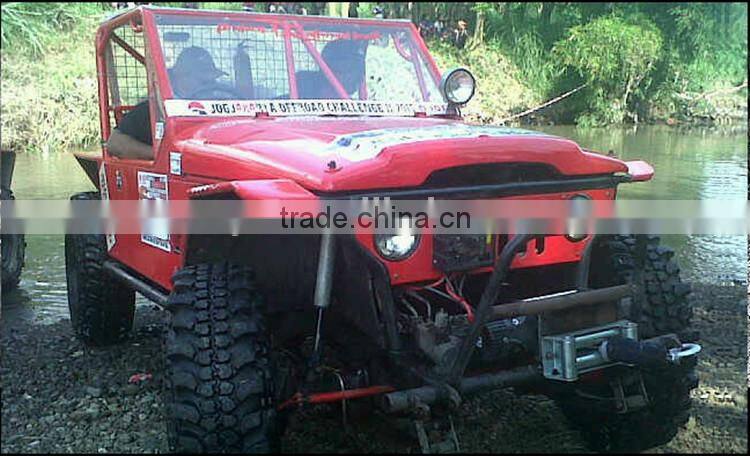

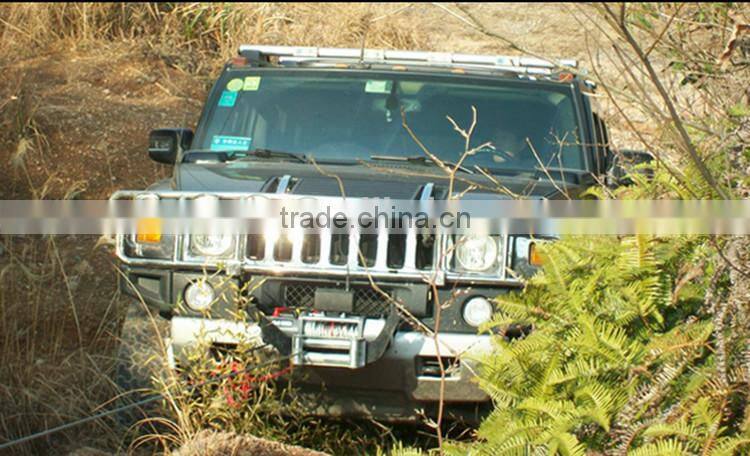

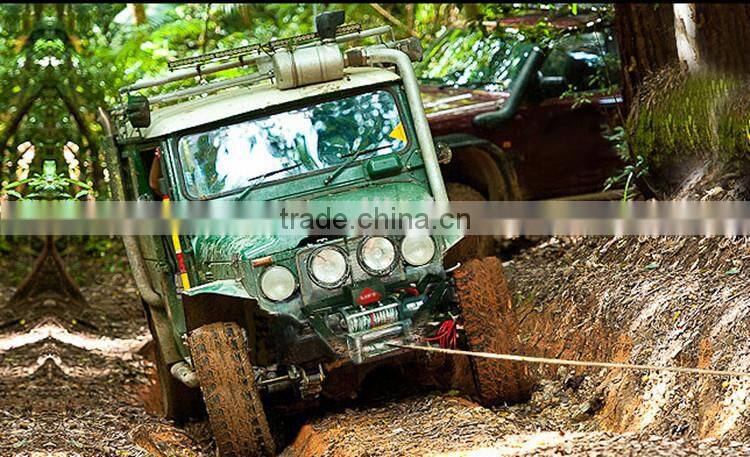

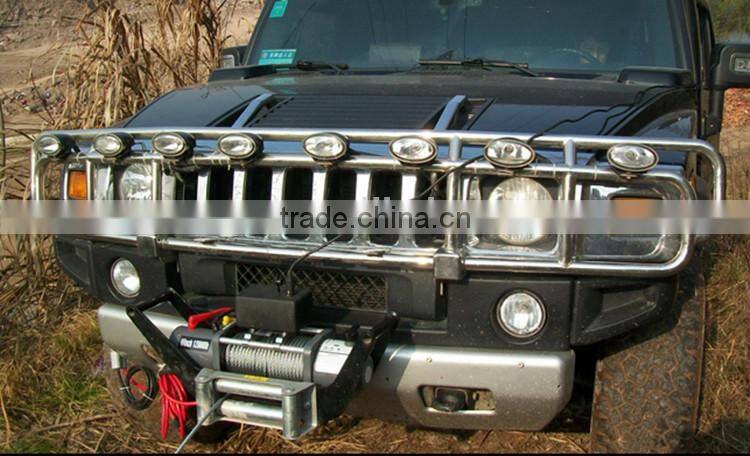

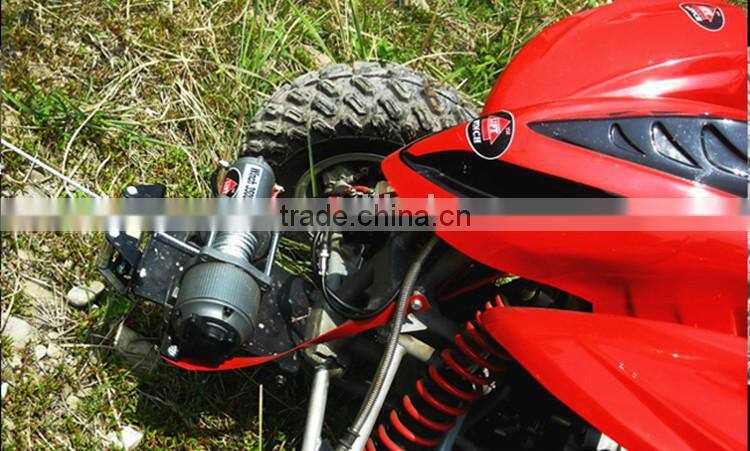

Used for where

 10000Lbs Electric Winch for Car10000Lbs Electric Winch for Car10000Lbs Electric Winch for Car10000Lbs Electric Winch for Car10000Lbs Electric Winch for Car10000Lbs Electric Winch for Car
