Sefri Dates Sultana Dates Process Pitting Pitter Machine

Sefri Dates Sultana Dates Process Pitting Pitter Machine photo-1
Sefri Dates Sultana Dates Process Pitting Pitter Machine photo-2
Sefri Dates Sultana Dates Process Pitting Pitter Machine photo-3
Sefri Dates Sultana Dates Process Pitting Pitter Machine photo-4
Sefri Dates Sultana Dates Process Pitting Pitter Machine photo-5
Sefri Dates Sultana Dates Process Pitting Pitter Machine photo-6
US$ 12,000 - 13,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Miracle
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao Dalian Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name Miracle
Model Number MRC-4G
Type Other, Pitter
Voltage 220V/380V
Power(W) 1.5kw
Weight 650kg
Dimension(L*W*H) 2500*1200*1300mm
Certification CE/ISO9001
Warranty 1 Year Guarantee
After-sales Service Provided Engineers available to service machinery overseas

Sefri Dates Sultana Dates Process Pitting Pitter Machine

Product Description

Sefri Dates Sultana Dates Process Pitting Pitter Machine is used for pitting fruits such as dates, plum, olive, etc. After removing the core, the fruits can be much more convenient to use. The most important thing is, after pitting, jujube still have high integrity flesh rate.



Application and Features Of Sefri Dates Sultana Dates Process Pitting Pitter Machine

  • Widely suitable to pit Dates, Cherry, Plum, Olive, Crab apple, Hawthorn and so on.
  • Adjustable mold according to different materials, with the diameter scope from 10mm to 40mm.
  • Frequency conversion technology makes the operation simple and high effective.
  • High integrity flesh rate.



Working Process Of Sefri Dates Sultana Dates Process Pitting Pitter Machine

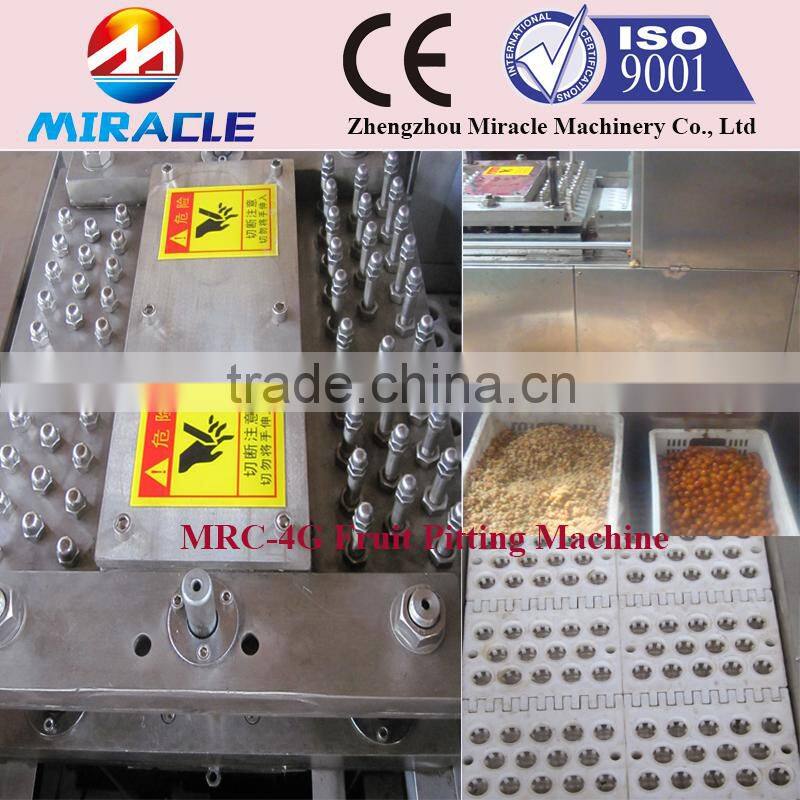

Sefri Dates Sultana Dates Process Pitting Pitter Machine adopts high speed sprinting and penetrating theory. It uses electromagnetic vibration feeder for automatic feeding, and rotating disc type feeder for loading material automatically. Then sends the fruit to pitting stations by the chain conveyor. Under the help of the upper die, the wedge centralizer die can finish automatic axis poisitioning and clamping. Then the punch-pin goes down and punch the fruit pit, subsequently the upper die goes back and separate the lower die by the elasticity. Finally the fruit pulp was sent to the discharge hole by chain conveyor. The faster of speed, The more integrated of fruit.



Technical Data Of Sefri Dates Sultana Dates Process Pitting Pitter Machine


Model

MRC-4G

Raw material size

 Φ12- Φ40mm

Capacity

1000-1100pcs/min

Pitting rate

98%

Motor

1.5kw

Dimension

2500*1200*1300mm

Weight

650kg

Machine material

Food grade SUS201

Operation degree

Semi-automatic



Detailed Images

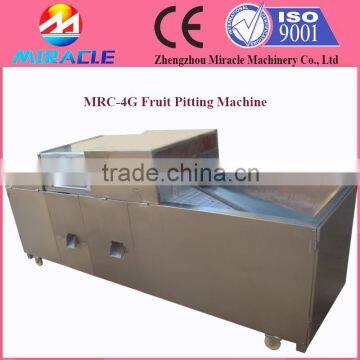

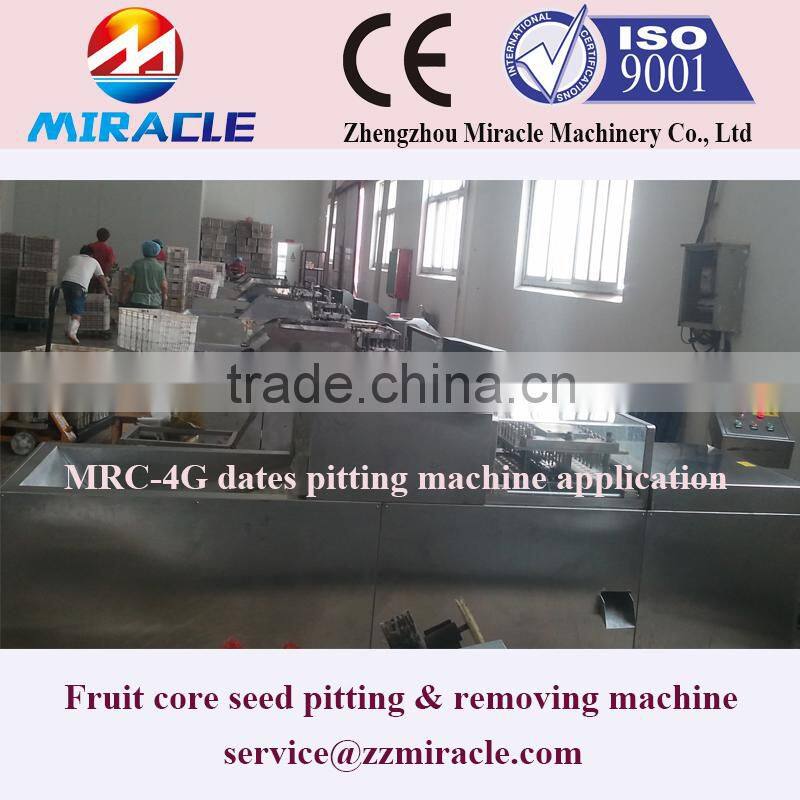

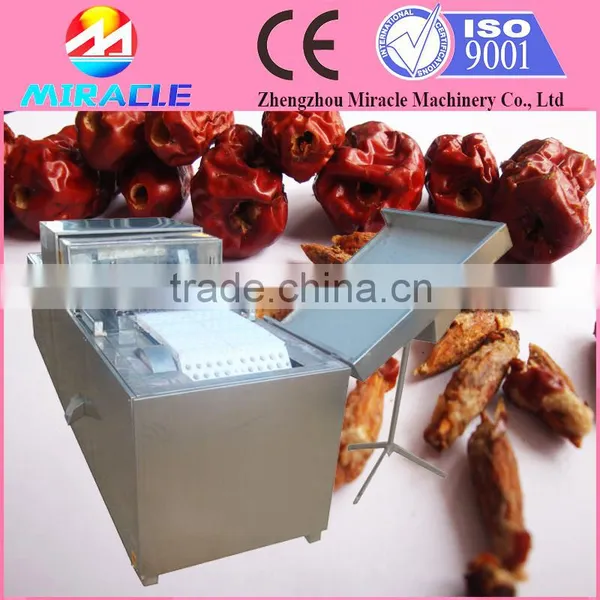

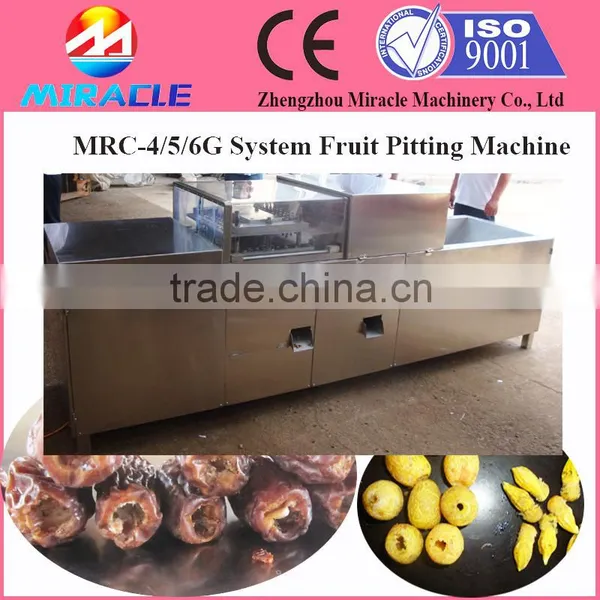

 Photo Show Of Sefri Dates Sultana Dates Process Pitting Pitter Machine

Sefri Dates Sultana Dates Process Pitting Pitter MachineSefri Dates Sultana Dates Process Pitting Pitter MachineSefri Dates Sultana Dates Process Pitting Pitter MachineSefri Dates Sultana Dates Process Pitting Pitter MachineSefri Dates Sultana Dates Process Pitting Pitter Machine

Sefri Dates Sultana Dates Process Pitting Pitter Machine

Packaging & Shipping

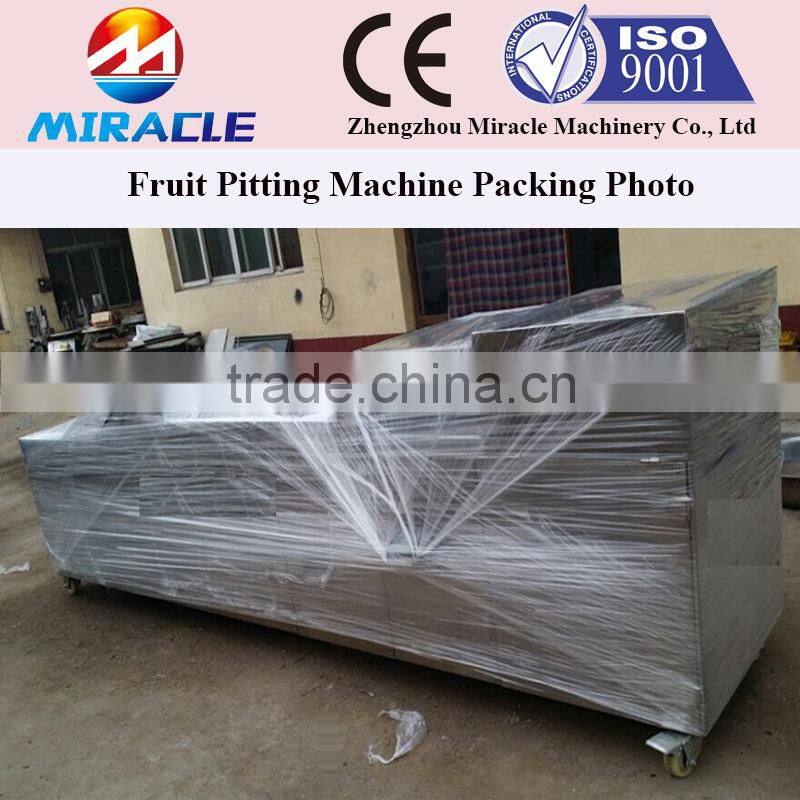

Sefri Dates Sultana Dates Process Pitting Pitter Machine will be coated with film firstly, and then packed with free-fumilgation wooden case. We could pack machines according to customer requirements.

We will deliver the Durable SS304 Olive And Cherry Core Seeds Pitting Machine after the deposit. And we will provide the complete documents that custom clearance required. Such as sales contract, commerical invoice, packing list, cerficate of origin if require.

Our Services



We provide the integrated customer service system

  • Pre sales: Consulting, Designing, Equipment selection, Technology discussion.
  • During sales: Programs and Drawings confirmed, Installation guide, Equipment debugging.
  • After sales: Testing acceptance, Customer training, Technical exchanges, Regular visits.
  • Warranty------We provide One year guarantee . Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.

We promise:

All products purchased in our company are guaranteed to keep in good repair for one year. If quality

problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.
