Specifications
wood laser engraving machinecnc machinery laser
1.IPG laser head with more than 100 thousands hours lifetime
2.15m/min cut
1. Applicable industry and materials of laser cutting machine eastern:
Applicable materials:
Suitable for two-color panels, plexiglass, glass, bamboo, paper, rubber, marble, granite, tile and other non-metal materials and carbon steel, stainless steel.
Applicable industry:
Advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, packaging and paper industry.
2. Features of laser cutting machine price:
1. X,Y axis adopted high precision and high speed Shanghai Fulong belt transmission.
2. Taiwan PMI linear square guide rail, high accuracy and long life time.
3. Adopting high-torque Leadshine stepper motor and drivers.
4. Exclusive no water warning and automatic protection system, to protect the working life of laser tube effectively. The power control system has exclusive automatic protection equipment to ensure the stability and safety of the machine to the best.
5. Control panel in English, convenience of operation control.
6. Has the function of re-carving after break point and power failure.
7. Offline control system which can not only work without computer, but also connect to U disk, USB communication.
8. Imported Singapore Wavelength mirrors and lens, with good ability of reflection and focusing, long working life.
9. Red light positioning system realizes the exact position without laser.
3. Technical parameters of laser cutting machine
NO. |
Description |
Parameter |
1 |
Engraving area |
1300*2500mm |
2 |
Laser power |
150w Hermetic Reci CO2 glass tube |
3 |
Cooling way |
Water cooling and protection system |
4 |
Table |
Blade table(Option: Honeycomb table) |
5 |
Drive system |
Stepper motor and drivers (Servo motor optional) |
6 |
Transmission |
Belt from Shanghai Fulong |
7 |
Mirror and lens |
Singapore Wavelength |
8 |
Dust collector system |
550W |
9 |
Air pump |
Air pump |
10 |
Water pump |
4m head delivery |
11 |
Control system |
Leetro 6585 control system |
12 |
System environment |
Windows 2000/ Vista/ Win 7/Win 8 |
13 |
Data transfer interface |
USB (offline) |
14 |
Engraving speed |
0-1200mm/s |
15 |
Engraving Depth |
0-3.5mm |
16 |
Cutting speed |
0-600mm/s according to different materials |
17 |
Minimum shaping character |
" Chinese: 2×2mm English: 1×1mm" |
18 |
Resolution ratio |
0.025mm |
19 |
Power supply |
220v, 2 phase, 50Hz |
20 |
Resetting positioning accuracy |
<0.01mm |
21 |
Number of hanged line |
68Line |
22 |
Software |
Lasercut 5.3 |
23 |
Gross Power |
1 Kw |
24 |
Operating temperature |
0-45°C |
25 |
Operating humidity |
5-80%(free of condensed water) |
26 |
Graphic format supported |
BMP,HPGL(PLT),JPEG,GIF,TIFF,PCS,TGA |
27 |
Machine dimension |
3150*1910*1020mm |
28 |
Weight |
720KG/950KG with package |
29 |
Packing |
Plywood case: 3250*2010*1280mm |
30 |
Optional Parts |
High-grade cooling system Up-down table Double-head Rotary system Auto-focus |

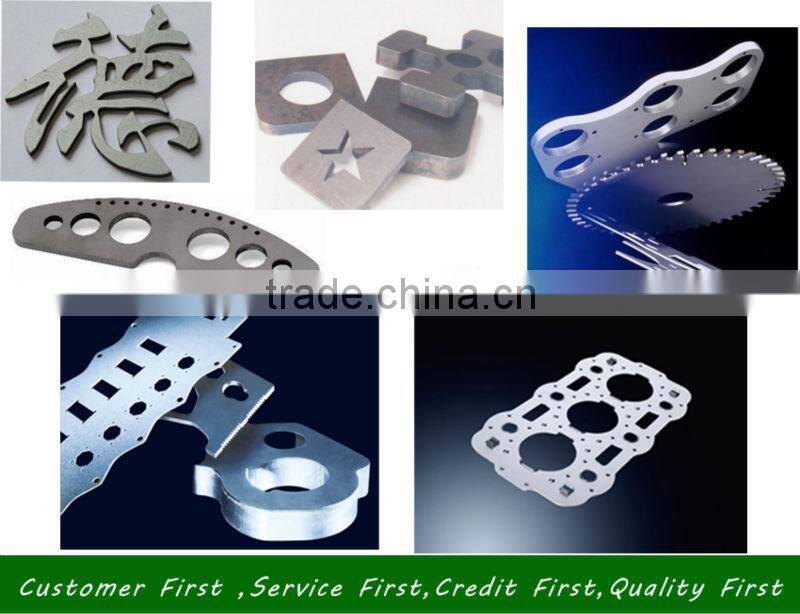

4. Samples

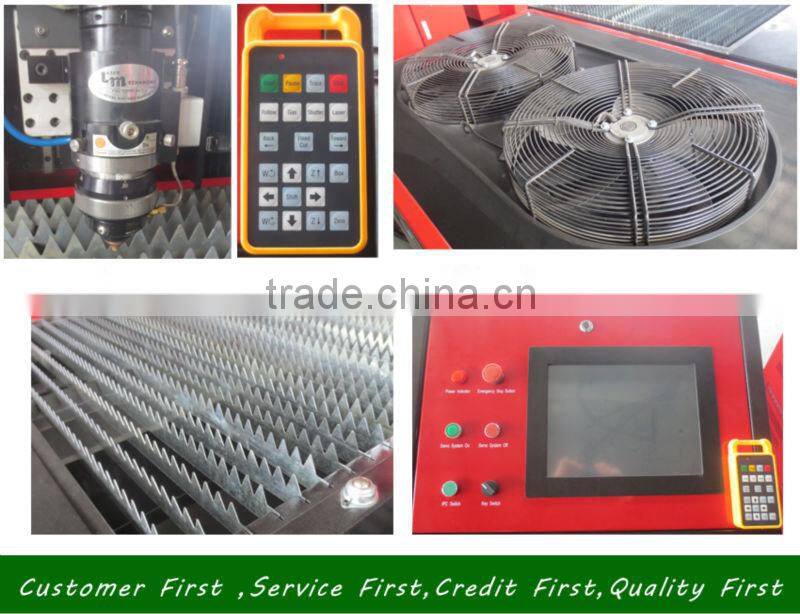

5. Parts of the machine
BCJ1325 BCAMCNC soft metal and acrylic laser cutter BCJ1325
laser cutting machine price with150W Reci Laser tube:
Package: Plywood
Machine size: 3150*1910*1020mm
Packing size: 3250*2010*1280mm
Weight: 720KG/ 950KG with package
Firstly, packed the laser machine with plastic sheet for clearing and damp proofing.
Secondly, then put the laser machine in the plywood case for safety and clashing.
Thirdly, transport the plywood case into the container.
7.The inner quality control:
#. In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
#. Every machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
#. 18 months guarantee of the whole machine.
#. Main parts(excluding the consumables) shall be changed free of charge if there is any problem
during the warranty period.
#. Lifetime maintenance free of charge.
#. We will provide the consumable parts at an agency price when you need replacement.
#. Machine has been adjusted before delivery.
#. Our staff can be sent to your company to install or adjust if necessary.
8. Why choose Bcamcnc company product?
1.Bcamcnc product is widely used in almost all the materials which you can think of.
2.Bcamcnc company is specialized in cnc router and laser machine manufacturing and selling. There is no middle man and no agent, so the price is best.
3.With high precision and high reputation is the most reliable goods you can choose.
4.Bcamcnc company has all kinds machines in store, the delivery time is much shorterthan other companies
5.Bcamcnc company has international tech service office and provides 24 hours online service.
