Specifications
BCJ-1325 laser diamond cutting machine1.CO2 laser power
2.for all nonmetal mateials
BCJ-1325 laser diamond cutting machine
Specifications
1.CO2 laser power
2.for all nonmetal mateials
Applications
The series of machine is suitable to art gift,advertisement decoration,toy,electron element,cutting of template,paper product,stamp and other industries, such as bamboo,putamina of coconut,paper,plexiglass,acrylic,marble,jade,crystal.Also can cut acrylic sheet,paper and so on.
Features
1.Lathe bed structure ensures the stable operation while carving and cutting at high speed
2.Beam is drawn out of high hardness alloy aluminum material and driven by a large power subdivision server-motor
3.Laser unit served by special radiator and protected without water makes it stable and safe with a longer life span
4.Advanced DSP control system, professional motion control chip, consecutive high-speed curve cutting and the shortest path selection function improve the working efficiency a lot.
Parameters
Model |
BCJ-1325 |
BCJ-6090 |
BCJ-1290 |
Option |
Working area |
1300*2500mm |
600*900mm |
1200*900mm |
customized |
Laser power |
80w(40w/60w/100w/130w/150w option) |
|||
Laser type |
Sealed CO2 laser tube |
|||
Cooling type |
Water cooling |
|||
Engraving speed |
0-60000mm/min |
|||
Cutting speed |
0-30000mm/min |
|||
Laser output control |
0-100% set by software |
|||
Min engraving speed |
Chinese: 2.0mm*2.0mm, English letter: 1.0mm*1.0mm |
|||
Locating precision |
+0.01mm |
|||
Controlling software: |
DSP control system |
|||
Graphic format supported |
DST PLT BMP DXF DWG AI LAS,etc |
|||
Compatible software |
TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,etc |
|||
Color separation |
Yes |
|||
Drive system |
High-precision stepper motor |
|||
Auxiliary equipments |
Exhaust fan and air exhaust pipe |
|||
power supply |
AC110V-220V+10%,50HZ/60HZ |
|||
Working environment |
Temperature:0-45, Humidity 5-95%(No condensate water) |
|||
Optional parts |
up&down table, Auto-focus device, rotary device etc |
|||
Samples

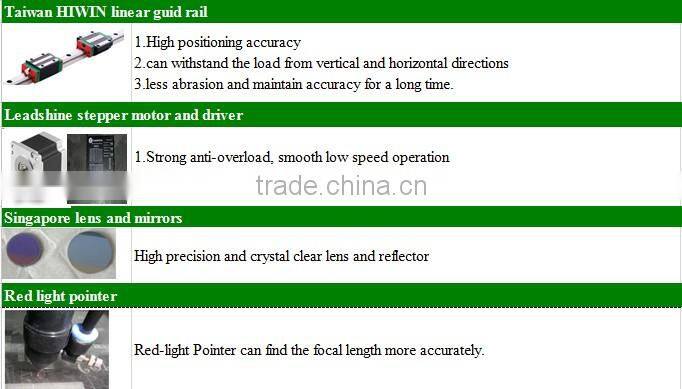

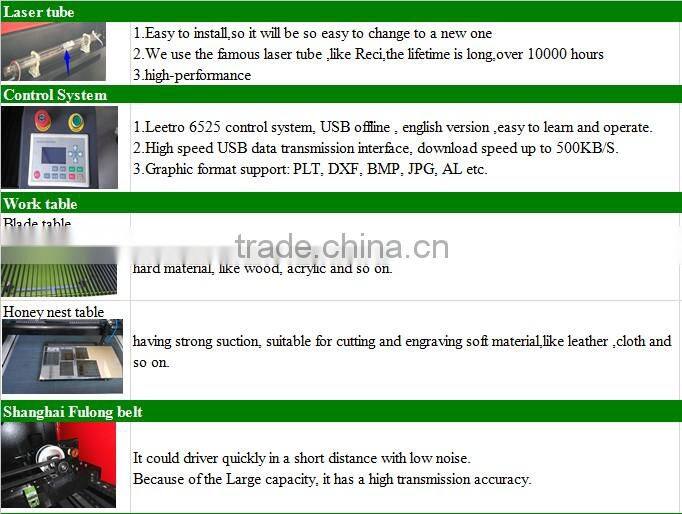

Machine parts
Our factory
Packaging:
1. Standard plywood case, its compressive strength and bearing quality is better.
2. the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3.when importing, the plywood case is with fumigation-free, the procedure is simple.
After sales service:
1. 18 months guarantee of the whole machine,We will provide the consumable parts at an agency price when you need replacement.
2. Our engineer could support you technology to your contry if necessary.
3. Our enginner could service on weekend even on vacation.
4. Our engineer could train you on at our factory for free.
5. Our engineer could service you 24 hours online by skype, yahoo, msn, QQ, or by cellphone.
Inner control quality system
How to choose a good machine
1)Machine's quality,if you want to choose a cheap one.Maybe the quality is too bad.And you must buy the other one after you use it for a period of the time.This situation will influence your production.So the quality of the machine is so important than others.
2)Many times after-sales service is very important too.Good after-sales service representative the image of the company .After you use the machine and find some problem of machine in some respect.A good after-sales can dealing with it effectively and protect the rights of consumers.
3)The third is technical support. Because of time difference,When you need help,other place maybe is sleeping. So the effectively contact information and serve is also useful to you.
4)The last is company. In order to ensure their image, good reputation company will produce good machine
