2016 year Best selling manufacturer price Automatic floating fish feed pellet machine
product description
1.This kind of Fish feed granulator is mainly used for making floating feed pellats of all kinds of animals inclouding fish,live stock,pets and poultry ,etc.
2.This kind of machine adopts combined modular spindle,Which shits mang different raw materials, easy operation and maintain.
3.This kind of amchine adopts international advanced technology,the pellets are even,and we can adjust the cutter to get different diameter and the length.

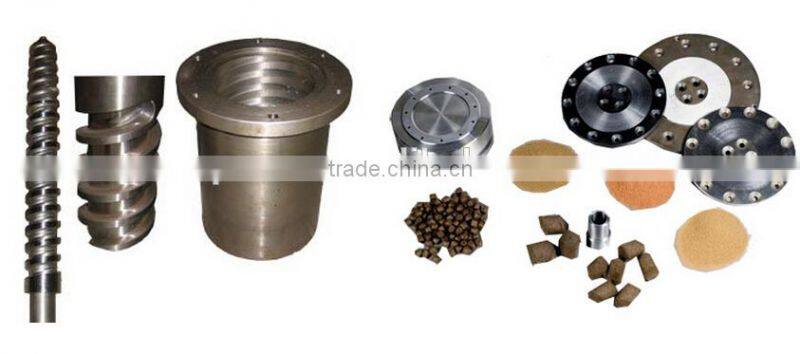

4.Screw sleeve of this machine adopts enchase alloy steel strip structure,which guarantees the long service life.
5.Main components of this machine use special alloy material made of heat-treated,strong abrasive resistance and long service life.
6.This Fish feed granulator widely used for extrusion of corns,beans,pet feed and other livestocks feed pellets.It is also used for rice husk fresh keeping and cotton seeds detoxication.it is an ideal tool for pellets processing industry.
method of application
1.Fish feed granulator with a screw thread inserts, mixing and kneading functionality.
2.Material into the puffing cavity after the material by extrusion, friction, shear, and other effects in between the collar of the screw, its internal pressure rising up to 4Mpa rising temperature up to 140 degrees Celsius.
3.The temperature and pressure in the time of 3-7s increased sharply,the organizational structure of the material changes, so that the starch further gelatinization, protein denaturation, crude fiber damage, to kill harmful bacteria Salmonella monocytogenes.
4. HPHT material out from the discharge port, the pressure is suddenly released in an instant, moisture flashed After cooling, the material was a porous structure, after the expansion of the material was slug a flocculent or macroclastic shape.
The advantage of machine
1. Fish feed granulator adopting international advanced technology, the pellets are very even.
2. We can adjust the cutter to get the different pellet diameter and the length
3. The electric heating device improve the feed expansion rate.
4. High temperature and high pressure can kill the salmonellosis and Bacterial infections.
5. Fish feed granulator can get the higher-protein animal feed.
6. The product of Fish feed granulator can floating for 12 hours.
7. The pellets no pollution and easy for working members to observe.
8. Fish feed granulator novel design, unique, simple structure, easy to install and easy to operate.
parameter of different model machine
Model |
P- FF52 |
P-FF65 |
P-FF75 |
P-FF95 |
P—FF105 |
P-FF 120 |
Capacity --- kg/h |
80-100 |
100-180 |
160-250 |
250-310 |
400-500 |
500-600 |
Pelleting Diameter--- mm |
1.2—6 |
1.2—10 |
1.2—10 |
1.2—10 |
1.2--12 |
1.2-12 |
Motor Power--- kw |
5.5 |
7.5 |
15 |
22 |
30 |
37 |
Cutting Power--- w |
750 |
750 |
750 |
750 |
1100 |
1100 |
Screw Rod Diameter-- mm |
52 |
65 |
75 |
95 |
105 |
120 |
Weight-- kg |
230 |
400 |
450 |
765 |
820 |
1200 |

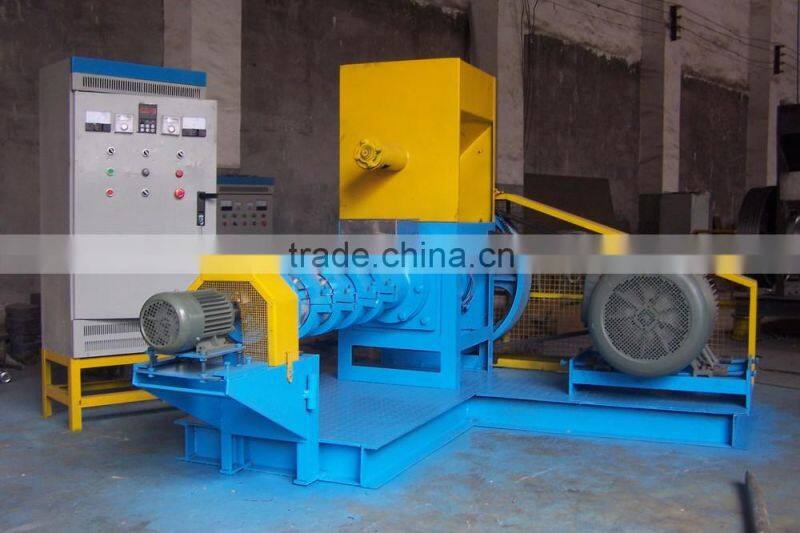

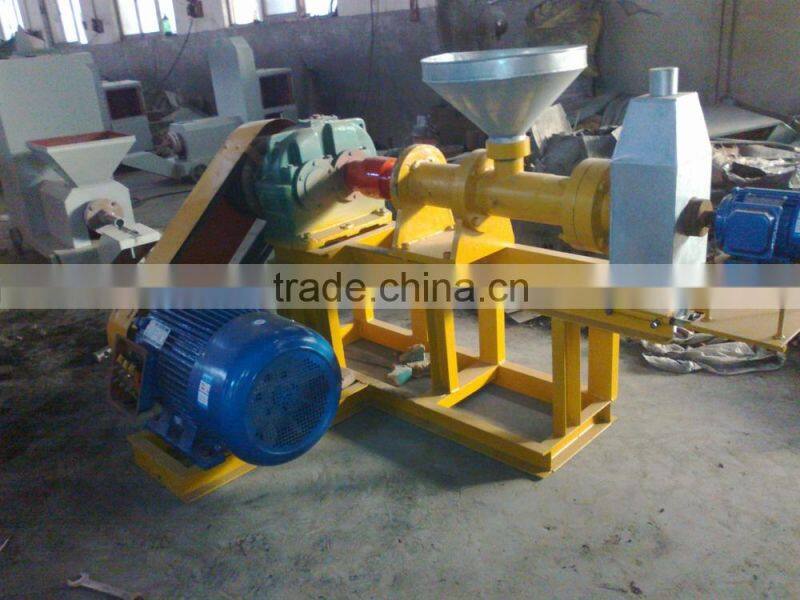

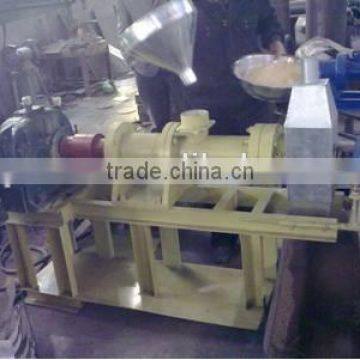

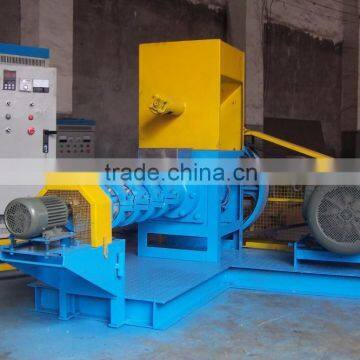

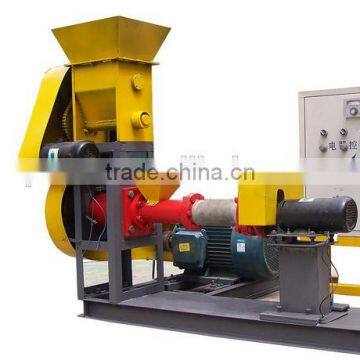

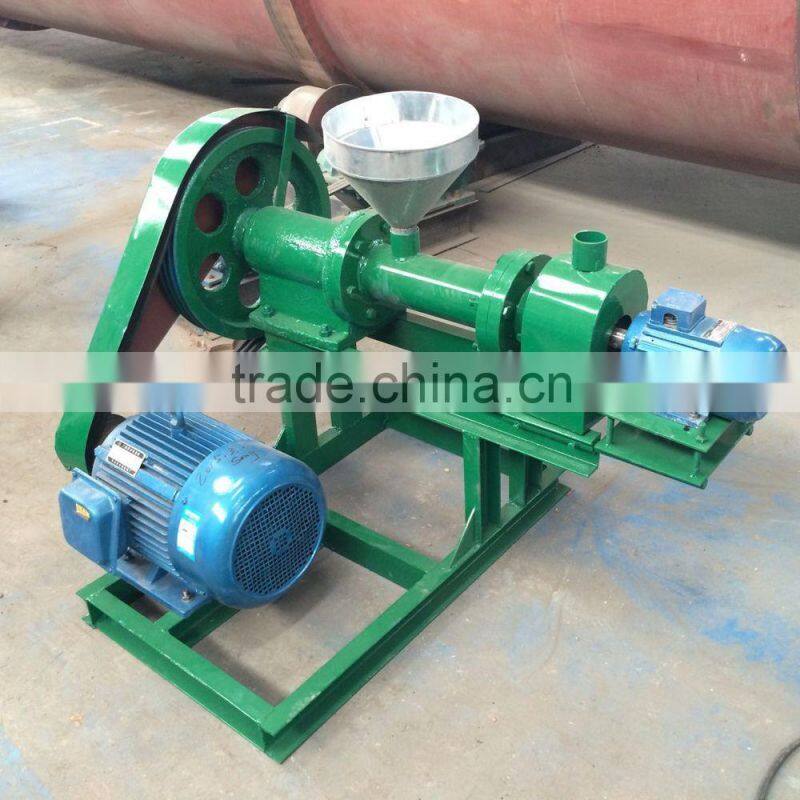

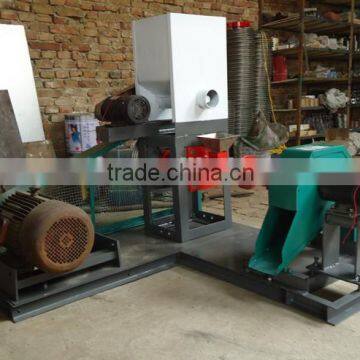

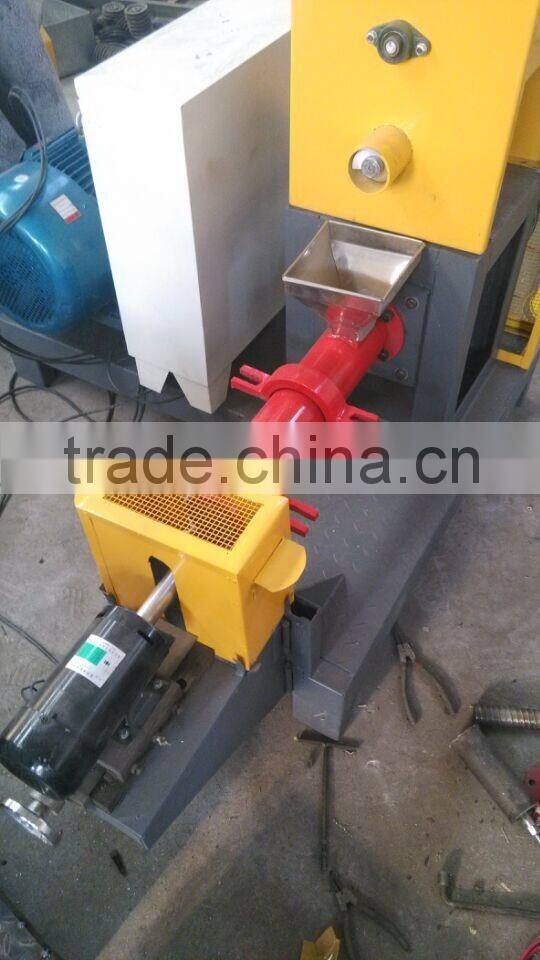

The photo of machine

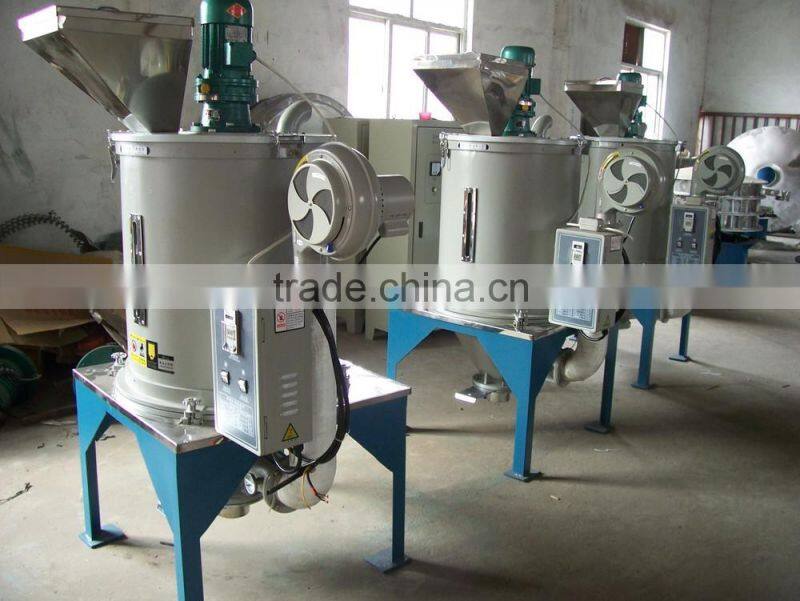

It is used for drying the finished fodder pellet; so as to make the fodder can keep longer time. (At least two months)
Model |
Capacity |
Net Size
(m)
|
Net Weight |
Motor |
P-H50 |
200-300 kg/h |
1.3*1.3*1.5 |
180 kg |
5 kw |

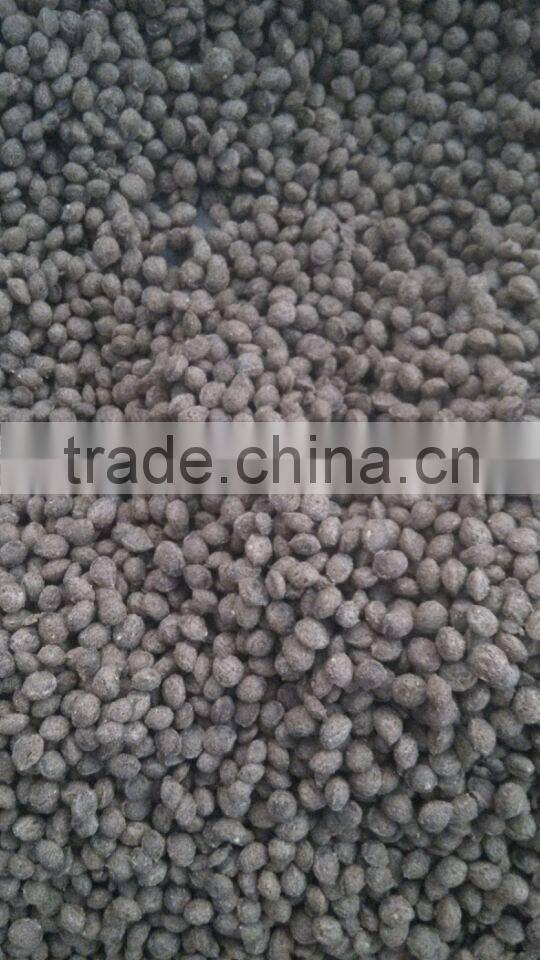

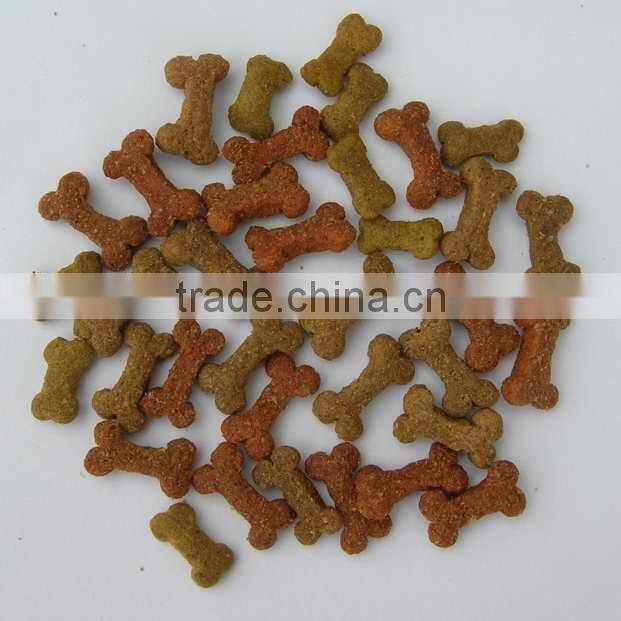

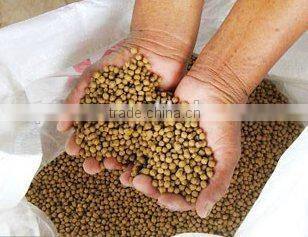

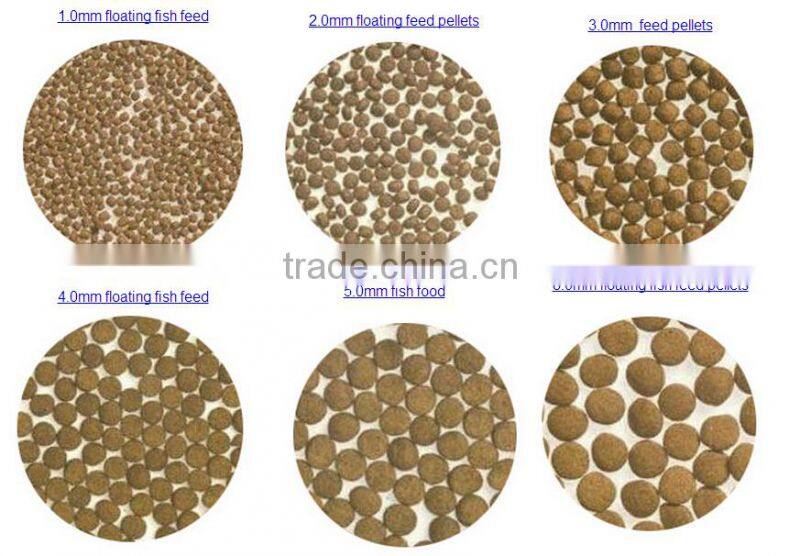

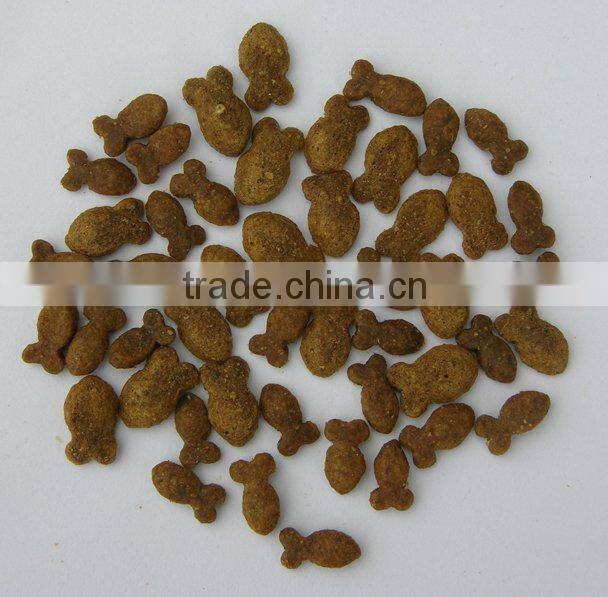

The final product
b.The machines are putted in strong iron sheet case/wooden case which is free of fumigation, lined with metal wire if necessary.
Quality guarantee term is for one year. Malfunctions which are caused by machineself and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
After-sales Service
All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.
a, Before sending the machine, we will test and adjust, so you can use directly when you get it.
b, Operation video & instruction will be sent to clients, to help them use the machines better.
Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.
a, Any problems occur while using, professional advice will be offered.b, All kinds of frequently used parts are supplied all the year round.
c, 24 hours hot line +86-15515581742.
