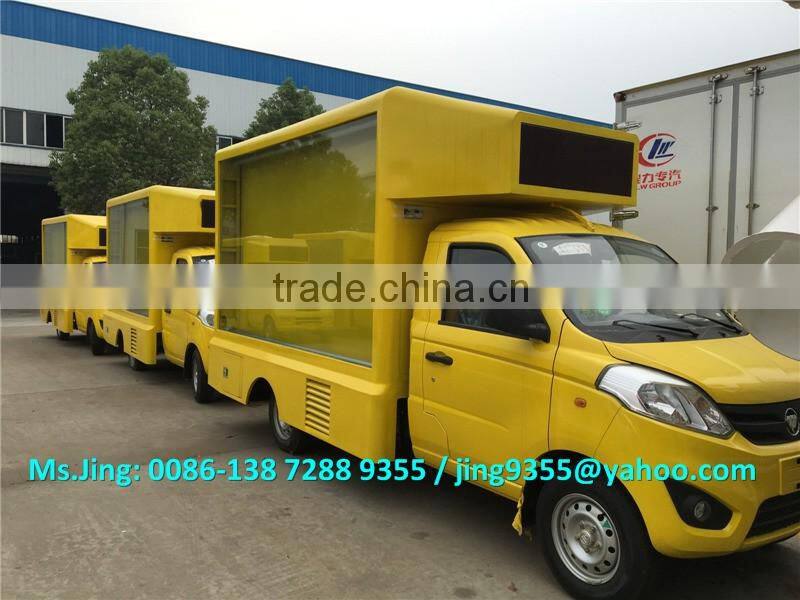

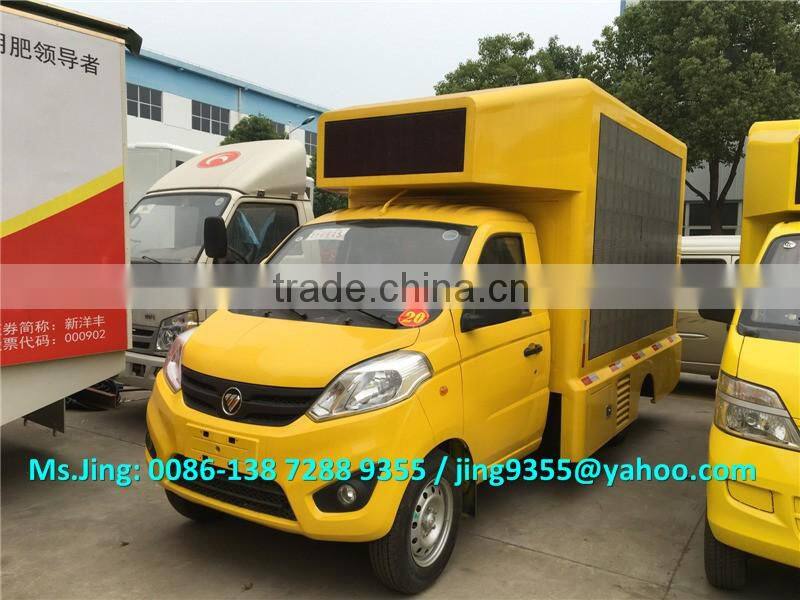

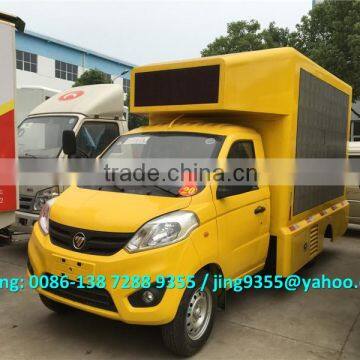

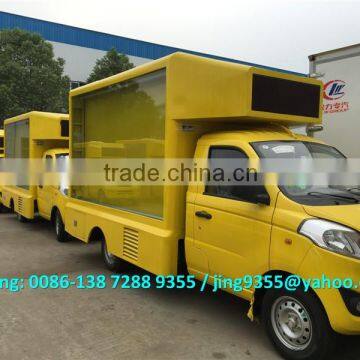

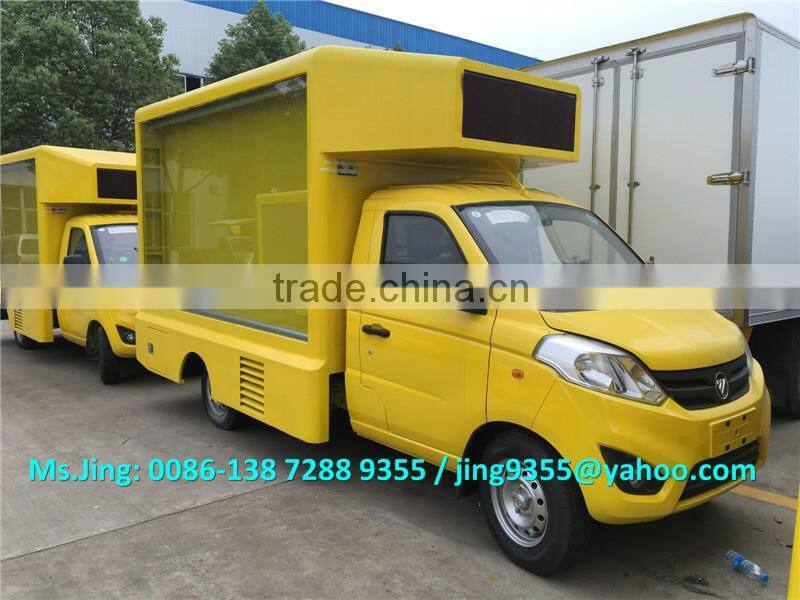

Foton Euro 5 mini mobile stage truck,small led mobile stage truck for sale in Colombia
Vehicle name : |
FOTON LED stage truck |
Overall dimension : |
5000*1900*2650 mm |
Emission standard : |
Euro V |
Body dimension : |
3000*1820*1880 mm |
Side roller dimension : |
2240*1440 mm |
Tail screen dimension : |
1280*960 mm |
LED screen parameters | |||
LED screen soecifications |
LED screen size |
LED screen area |
Module size |
P10 full color |
2560*1600 mm |
4.09 m2 |
320*160 mm |
P8 full color |
2560*1536 mm |
3.93 m2 |
256*192 mm |
P6 full color |
2496*1536 mm |
3.83 m2 |
192*192 mm |
Superstructure configuration | |||
Full color screen material : |
waterproof shockproof outdoor high-definition |
Monochrome screen material : |
red, white |
Audio brand : |
Wan Shengda waterproof frets |
Amplifier : |
Yi Wei Te Broadcast Power Amplifier |
Box material : |
5CM composite steel box |
Floor Material : |
waterproof wood floors |
Interior Material : |
High temperature resistant aluminum checkered plate |
Electronic control system |
internal and external network-wide intelligent automatic switching |
Electronic Control Security : |
leakage protection system / lightning protection system |
Roller lamphouse : |
Tempered glass |
Media Control System: |
Gigabit Ethernet Amethyst player |
Ventilation System : |
strong exhaust fan, ceiling vent sunroof |
Industrial Control Systems : |
optional I4 high with industrial control computer, or U disk-line video playback system |
||
Power supply system : |
optional high-performance vehicle or battery-powered generator set system plus 220V external power supply |
||
Whole vehicle parameters | |||
GVW : |
2250kg |
Approach/departure angle : |
39 / 17 º |
Loading capacity : |
-- |
Front / rear overhang : |
605/1325 mm |
Curb weight : |
2120kg |
Max speed : |
115 km/h |
Axle load : |
680/1570 kg |
|
|
Chassis parameters | |||
Chassis number : |
BJ1036V5JV5-D1 |
No.of axles : |
2 |
Fuel type : |
gasoline |
Wheelbase : |
3070 mm |
Passengers: |
2 |
No.of tires : |
4 |
Tire specification : |
175R14LT 8PR |
|
|
Price: FOB/DAF/CNF/CIF
For the accurate quotation, please contact me directly!
Payment term: T/T, prepay 30% as subscription, balance will be paid after the clients inspect the trucks in our factory before delivery.
Our factory passed the international quality in ISO9001:2008 system attestation completely.
Products passed 3C attestation.CLW, a well-known brand, believed in China.
1> Packaging: Nude,but waxed before shipment in our factory.
2> Shipping: Small type can be put into 20' or 40' container, big type must be shipped by bulk carriers or ro-ro ship or according to your requirements.
1. We are the biggest professional special trucks manufacturer in China,being in this field for 10 years.
2. We can supply more than 300 kinds of special trucks for your needing.
3. OEM Sevice: we can produce the trucks according to your request,such as the material,the size,the colour and the logo is optional for you.
1> Our company has solid technology, flawless inspection, advanced equipment, reliant quality and flexible modes operation.
2> We have roundly passed the certification of ISO9001-2008, the 3C (China Compulsory Certification) and other certifications that export needed.
3> We have more than 2000 workers and factory is more than 690,000m2, we have successfully exported to Ghana, Sudan, Kuwait,Nigeria, Angola ,Tajikistan, Azerbaijan,Namibia, Burma, Korea, Iran, Afghanistan,Iraq, Philippines ,Vietnam , Saudi Arabia ,Mexico,Chile ,Bolivia etc. more than 5000 trucks to many Africa & Asia countries.
4> We can produce 12,000 trucks every year, our brand "CLW" obtain "the Chinese well-known trademark".
5> We cooperate with famous chassis manufacturers, such as DONGFENG, FAW, FOTON, JMC, JAC, and NAVECO, etc.
Welcome to visit ChengLi Special Automobile Co.,Ltd !
