Help CenterLRF Hot-blast Boiler for Grain Industries,medicinal Materials
Related Products
-
Hot Air Boiler for Heating of Breeding Industry/plantUS$ 2,000 - 20,000MOQ: 1 Set -
Coal Gasification Generator Steam GeneratorUS$ 2,000 - 20,000MOQ: 1 Set
-
New Coal Gasification Steam Boiler PriceUS$ 2,000 - 20,000MOQ: 1 Set
-
New Technology Boiler Semi Coal Boiler Vertical Steam BoilerUS$ 2,000 - 20,000MOQ: 1 Set
-
New Coal Gasification Boiler Steam BoilerUS$ 2,000 - 20,000MOQ: 1 Set
Specifications
Compact structure,reasonable layoutHigh heat speed&efficiency,stable property
Less floor area,simple installment&operation
1.Characteristics of LRF series of hot-blast boiler:
a.Adopt spiral plate heat exchange technology,integrate combustion with heat exchange,so it has high heat speed and efficiency.
b.Taking pure air as thermal transfer medium,it has no pollution.
c.Use vertical multiple through structure,the temperature of hot air can reach above 600°C.
d.The heat supply has three types of high,medium&low temperature,user can choose arbitrarily according to their demands.

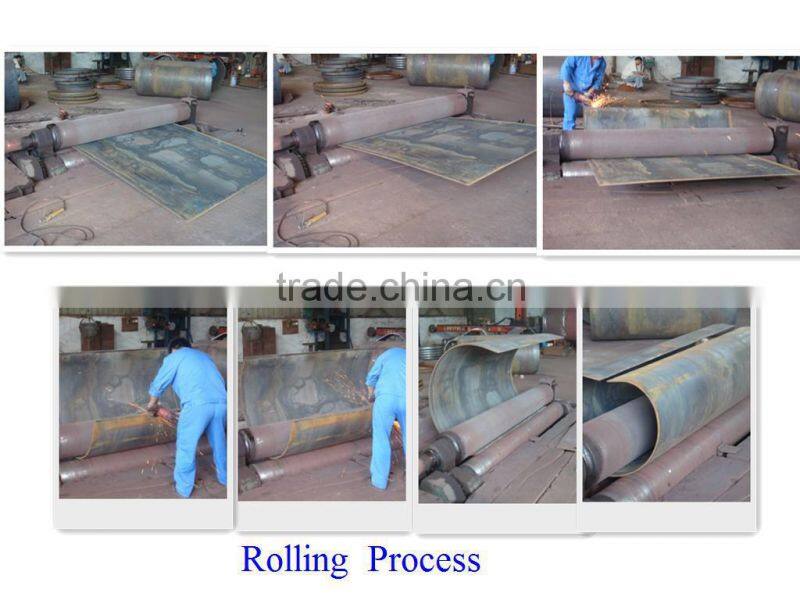

Manufacturing Procedure
2.Parameters of LRF series of boilers:
Model |
DLRF-20 |
ZLRF-40 |
GLRF-60 |
ZLRF-80 |
ZLRF-100 |
ZLRF-120 |
ZLRF-160 |
ZLRF-200 |
ZLRF-250 |
ZLRF-360 |
ZLRF-600 |
Rated heat supply(Kcal/h) |
20 |
40 |
60 |
80 |
100 |
120 |
160 |
200 |
250 |
360 |
600 |
Temperature |
150~500°C |
||||||||||
Medium |
Air |
||||||||||
Fuel |
II Bituminous Coals &III Anthracites |
||||||||||
Thermal efficiency |
82% |
||||||||||
External Dimension(mm) |
1466x 2800 |
1660x 3300 |
2060x 4520 |
2060x 4820 |
2400x 5700 |
2600x 5860 |
3000x 5960 |
3632x 6160 |
6000x36 00x5600 |
8100x36 00x5600 |
12000x36 00x5600 |
Coal consumption(kg/h) |
32 |
65 |
98 |
120 |
150 |
180 |
256 |
360 |
420 |
630 |
980 |
3.Certificaes and brand of our products
4.Applications of LRF hot-blast boilers:
They are widely used for stoving,flame plating,dewatering of chemical,
food industries,medicinal materials,tobacco,ceramics,building materials
and so on.It also can be used in heating of plant,hall,shed,barn and other
buildings and arefaction or rising temperature of underground mining areas,underground engineering and other places.
