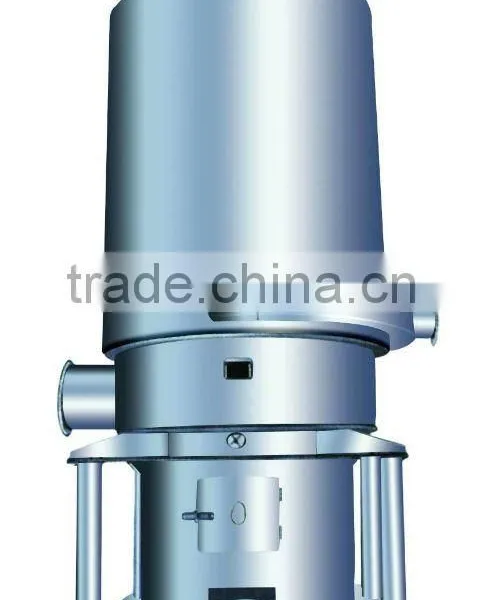

2011 Best selling industry Hot-blast stove

Specifications

2011 Best selling industry Hot-blast stove
1 energy-saved
2 environment-protected
3 stainless
4 for industry

2011 Best selling industry Hot-blast stove

Product characteristic:

1 The GLRF series high temperature hot-blast stove uses the vertical multi-return trip structure, its hot-blast temperature may reach 600°C above, is the domestic origination, once won the ministry-level outstanding product second prize.

2 This hot-blast stove widely applies in the grain, raw material for medicine, each kind of agricultural and subsidiary products and each material drying, the printing, the baking varnish and so on dry heat source, but may also use in the big workshop plastic bag awning warming up, as well as the underground mine, the understructure work and so on needs to dry the situation to dehumidify the elevation of temperature.

 Because the high temperature hot-blast stove its hot blast may reach 600°C, the especially qualify in profession productions and so on metallurgy, chemical industry, ceramics, forage grass, feed, its benefit is especially remarkable.



  Parameter:



Model  / Parameter  / Project	DLRF-20
The rating supplied quantity of heat           (Kacl/h)	20
Application temperature  (°C)	150-500
Actuating medium	Air
Design fuel	II kind of bituminous coal, III kind of anthracite
Fixed thermal efficiency   (%)	82
Outlook size    (mm)	1466*2800
Coal consumption   (kg/h)	32
Drawing fan model/power	Y112M-2/4
Air blower model/power	Y160M2-2/15



ZLRF -40	GLRF -60	ZLRF -80	ZLRF -100	ZLRF -120	ZLRF -160		ZLRF -200		ZLRF -250	ZLRF -360
40	60	80	100	120	160		200		250	360
150-500
Air
II king of bituminous coal, III kind of anthracite
82
1660 *3300	2060 *4620	2060 *4820	2400 *5700	2600 *5860		3000 *5960		3632  *6160	6000 *3600 *8100	8100* 3600* 5600
65	98	120	150	180		256		360	420	630
Y160 M2-2/4	Y160M2 -2/4	Y132S 2-2/7.5	Y132S 2-2/7.5	Y132S 2-2/7.5		Y132S 2-2/7.5		Y160M 2-2/15	Y160M 2-2/15	Y160L -4/18.5
Y160L -2/18.5	Y160- 4/18.5	Y160L- 2/18.5	Y200L -4/30	Y200L 1-2/30		Y200L 1-2/30		Y250M -4/55	Y250M -4/55	Y280 M-4/75
