Specifications
Long Lifetime hand held digital LED stroboscope1. America CREE lamp, long life
2.CE, ISO cert., EMC test report
Long Lifetime hand held digital LED stroboscope
1. INTRODUCTION
A stroboscope, also known as a strobe, is an instrument used to make a cyclically moving object appear to be slow-moving, or stationary so that the objects can be visible, otherwise, it can not be observed by naked eyes. The principle is by synchronizing the flash frequency to the movement of the observed object and emitting intensive light pulse of short duration, the object is always illuminated at the same point of its movement, so that it appears to the eye as if it were motionless. It is suitable for non-contact RPM measurement, inspection and observation of moving parts.
For example: a motor) speed and movement frequency (printed bags), can also take advantage of the frequency scintillation analysis of object vibration, the action of high-speed moving objects, as well as high-speed photography.
2. APPLICATIONS:
1). Measurement of rotation speeds, frequency and periods
2). Observation of thread movement on textile machines
3). Quality monitoring of web printing machines
4). Roll label inspections
5). Vibrations measurements
6). Observation of mechanical deformation
7). Packaging
8). Physic demonstrations
9). Printing press and gilding press
Our tachometer stroboscope are widely used in machine building, printing, light industry, textile, and electronic, pharmaceutical, food-processing industries.
3. FEATURES
1). German lamp, long lifetime
2). wide trigger frequency range, and have different types for your choice: 60 fpm / min -3600 fpm / min, 60 fpm / min -20000 fpm / min, 60fpm / min - 99999 fpm / min., 60 fpm / min--120000 fpm / min. Frequency of each unit can be easily adjusted
3). portable, rechargeable, easy to operate and adjust
4). accurate and simple yet highly stable, repeatable flash rate setting.
5). internal components are independent, thus easy to disassemabled for problem solving
6). accredited with ISO, CE certification and pass EMC test.
7). competitive price with high quality
8). fast delivery, environmental friendly paper packaging.
9). after sale service guaranteed
4. PRODUCT TECHNICAL PARAMETERS
Product Name |
Hand-held Rechargeable Digital LED Stroboscope |
Model |
DT325E |
Type |
Hand-held |
Power Type |
Powered by Rechargeable Battery |
Battery Type |
Lithium Chargeable Battery |
Battery Spec. |
DC10.8V, 2000MA |
Recharging Voltage |
DC16V |
Battery Recharging Time |
About 5 hours (have indicating light) |
Total Power |
Less than 15W |
Working Frequency |
50-60HZ |
Environment Illumination |
Less than 10000 Lux |
LED Lamp Spec. |
America CREE 10W LED |
LED Lamp Lifetime |
3-5 years |
Trigger Mode |
Internal Trigger |
Flash Frequency Range |
60-120000 FPM/min. |
Size |
208mm*70mm*60mm |
Net Weight |
380g |
5.WARRANTY
We offer 1 year warranty for our digital stroboscope lamp. If the strobe light is out of working order under proper usage per instructions manual within the warranty period, please contact us to obtain a merchandise return code and shipping instruction. Then, send it back at your shipping costs. After receiving your return item, it will take 7 days for evaluation and investigation. A brand new replacement unit will be sent to you at our shipping costs if it meets our warranty requirements.Porta Strob
6. CERTIFICATE
We have obtained the quality management system certificate of ISO9001:2008 and CE certificate. Besides, our digital tachometer stroboscopes have passed EMC test and other domestic test.
ble Strob
7.EXHIBITION
In the past years, our company had presented in many domestic and abroad exhibitions and fairs, and have been recognized by lots of enterprises.

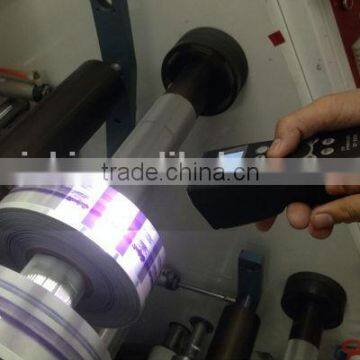

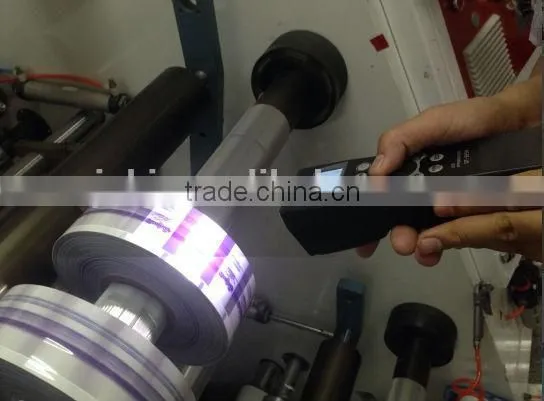

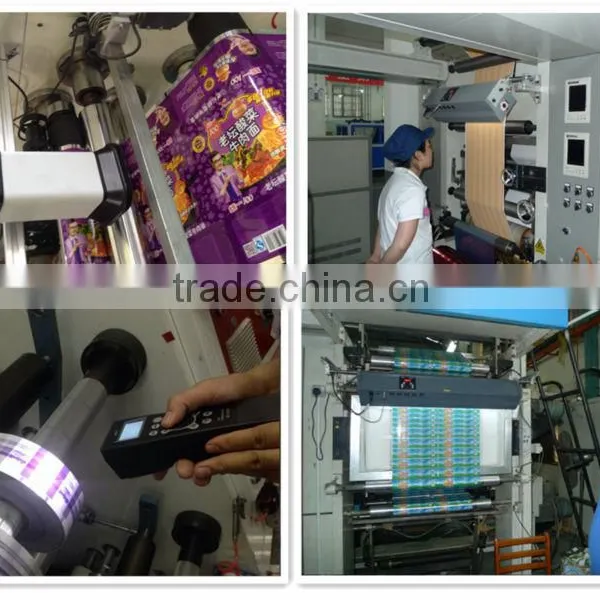

8. Photos taked whille products used by Thaliand customer.
