plastic plastic molding machine

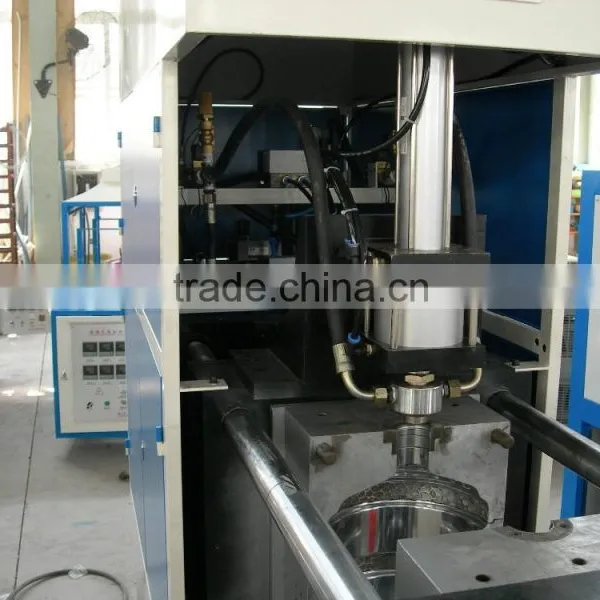

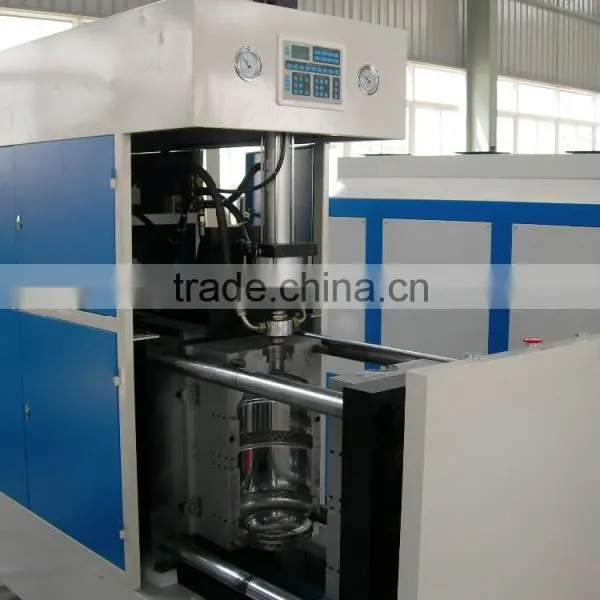

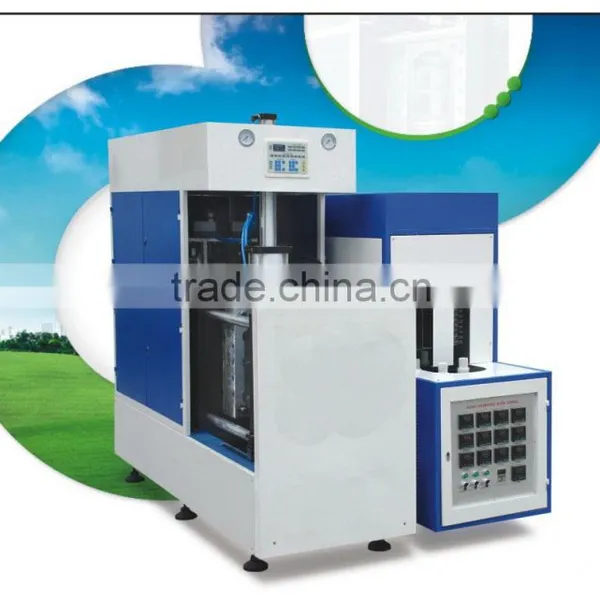

CM-12 Semi-automatic plastic molding machine is especially used to produce from 3 gallon to 5 gallon bottles and is widely used to produce any shapes of plastic bottles from PET with neck diameter from 15mm to 200mm.
*Perfect function with economic investment.
*Small size and compact construction with no space wasted.
*Easy to operate and maintain, operated by one person.
*Saving power and uneasy to worn out.
*Adopting new double crank four bars to lock mould, the cross fixed.Providing high pressure blowing system.
*We can provide preforms and various bottle&cap molds from 3 gallon to 5 gallon bottles to meet customer’s requirements.
| Model | ITEM | CM-12 | |
| Container | Product material | / | PET |
| Volume | L | 10-25(3-5gallon) | |
| Theoretical output | pcs/h | 90-180 | |
| Preform length | mm | ≤500 | |
| Preform inner diameter | mm | φ15-200 | |
| Mould | Max.mould plate Diameter(L*W) | mm | 420*500 |
| Max.mould thickness | mm | 400 | |
| Mould opening stroke | mm | 380 | |
| Machine size and Weight | Main machine (L*W*H) | cm | 2180*770*1960 |
| Main machine weight | kg | 1000 | |
| Heater (L* W*H) | cm | 2370*680*1650 | |
| Heater weight | kg | 318 | |
| Power | kw | 40 |
To get detail technology datas ,please chat with John Yi --the sale engineer,
1. can this pet bottle blowing machine blow 500ml PET bottle ?
Answer: Yes ,this machien can blow bottle volume 0.1-20L bottle ,but the blowing speed will be too slow for small bottle , this CM-12 designed to blow 10-20 L bottle , if you get blow small bottle you may get money lost on the electricity ,
2. is there complete machine include bottle mould and air compresor ?
Answer: Yes ,what we are provide is the complete system , not like other factory ,they may provide you main machine and you will need speed a lot to find the suitable air compresor and chiller...ect..
3.can we get extra bottle mould ?
Answer: Yes , we cam help you finish the mould design ,and the extra mould should be payed .
4.What is the language of the PLC and touch button ?
Answer: No metter where are you from , we can translate the PLC ,Touch Screen/button in your language ,make sure ytou will have a easy operation .
5.can you help us with the shipment of this machine ?
Answer: Yes , with honour ,we have our special shipment company which already cooperate more than 10 years , please
contact John for the freight , we will give you the best price we can .
Export to Kingdom of Saudi Arabic
