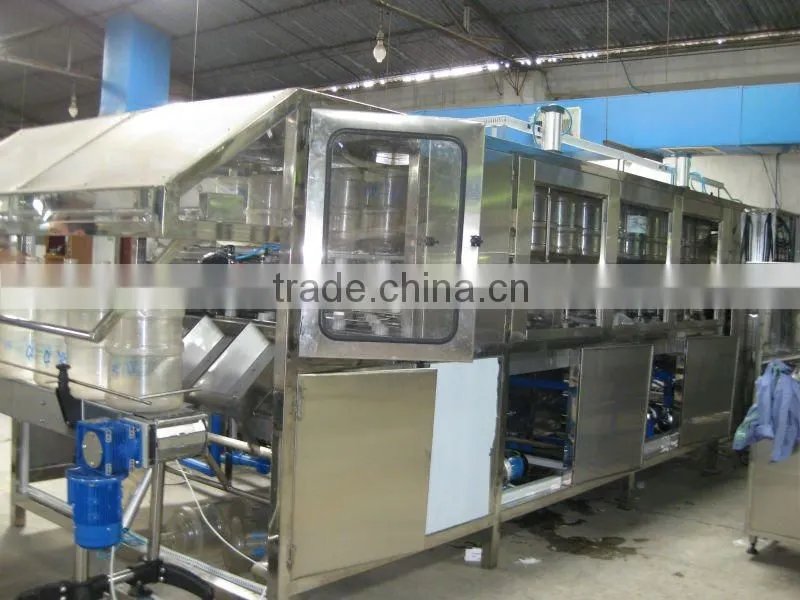

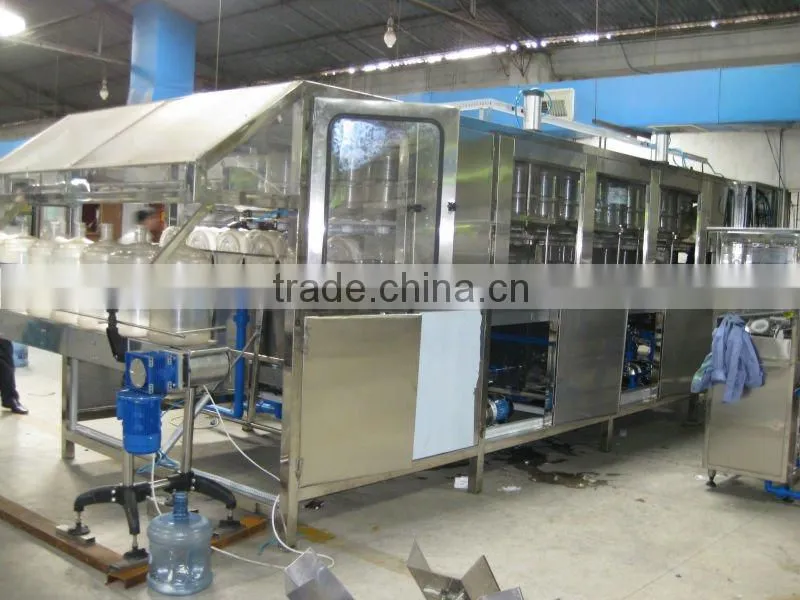

Help CenterFive Gallon Bottle Water Washing Filling and Capping Machine
Related Products
-
Semi Automatic 5 Gallon Filling PlantUS$ 1,000 - 1,500MOQ: 1 Set -
5 Gallon Bottle Washing Filling Capping MachineUS$ 3,500 - 3,580MOQ: 1 Set
-
20 Liter Bottled Water Filling Machine PriceUS$ 3,500 - 3,580MOQ: 1 Set
-
5 Gallon Bottle Washing Filling Capping MachineNegotiableMOQ: 1 Set
-
Automatic Mineral Water Bottle Sealing MachineUS$ 48,000 - 50,000MOQ: 1 Set
We are the filling machine manufacturers of water filling machine.
Our bottle water bottling machine can filling 5 gallon water bottles,3 gallon water bottles.
And our water filling machine are automatic filling machine
Water bottle filling machine for 5 gallon bottle (19.8Lts), suitable for 6 gallon water bottle for the automatic water bottling process. with multi stage bottle rinsing, fast speed filling with water level and PLC control system, chain type roller capping,automatic conveyor system.
Specification as following:
Model |
XG-100/J(300BPH)A |
XG-100/J(300BPH) |
XG-100/J(450)A |
XG-100/J(450BPH) |
XG-100/J(600BPH) |
XG-100/J(900BPH) |
Number of rinsing rows, filling nozzle, capping type (head/Chain) |
8-2-2(Capping head) |
8-2-1(Capping chain) |
8-3-3(Capping head) |
8-3-1(Capping chain) |
8-4-1(Capping chain) |
10-6-1(Capping chain) |
No. of bottle carrier each rinsing row |
2 |
2 |
3 |
3 |
4 |
6 |
Production capacity: 18.9L bottles/hr |
300 |
300 |
450 |
450 |
600 |
900 |
Applicable bottle specification: |
φ=270 H=490mm |
φ=270 H=490mm |
φ=270 H=490mm |
φ=270 H=490mm |
φ=270 H=490mm |
φ=270 H=490mm |
Caps specification |
Φ58 x 40mm |
Φ58 x 40mm |
Φ58 x 40mm |
Φ58 x 40mm |
Φ58 x 40mm |
Φ58 x 40mm |
Pressure (Mpa) |
P≥0.6 |
P≥0.6 |
P≥0.6 |
P≥0.6 |
P≥0.6 |
P≥0.6 |
Main Motor power (kw) |
6 |
6 |
7.14 |
7.14 |
8.24 |
12.64 |
Dimension (mm) |
3510 x 980 x 1660 |
3105 x 800 x 1660 |
3510 x 1200 x 1950 |
3050 x 1200 x 1950 |
3145 x 1500 x 1950 |
3150 x 2100 x 1950 |
Weight(kgs) |
600 |
850 |
980 |
1020 |
1350 |
1660 |
Complete set of the machinery include:
1) Automatic caps puller,
2) Automatic brush washer
3) Automatic bottle loader
4) Automatic washing filling capping machine
5) Automatic caps dosing system
6) Automatic caps sleeve label shrinking machine
