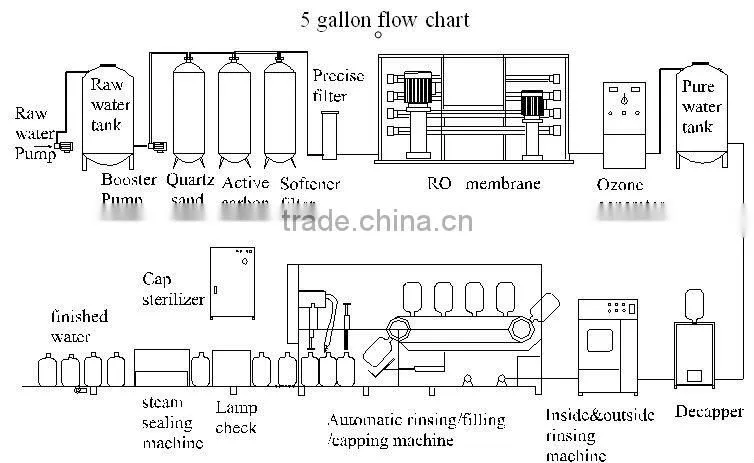

Complete set of the machinery include:
1) Automatic caps puller,
2) Automatic brush washer
3) Automatic bottle loader
4) Automatic washing filling capping machine
5) Automatic caps dosing system
6) Automatic caps sleeve label shrinking machine
The Filling Line mineral water bottle sealing machine
1.Automatic decapper JBG-1
This machine is used to remove the cap from the cyclic bottle
The main parameter of JBG-1
1. Power supply: |
220+5 % 50Hz |
|
2. input power: |
0.55kw |
|
3. working pressure of compressed air |
p/0.6mpa |
|
4. Bottle’s specification |
270x490x56mm |
|
5. Cap’s specification |
58x40mm |
|
6. cap-pulled capacity |
100-400pcs/h |
|
8. outsize |
610x530x1770mm |
|
7. packing size |
680x800x200 |
|
8. net weight |
45kg |
|
9. Gross weight |
70kg |
2. Inside and outside bottle brushing machine JNWX-2
1.Power supply: |
220+5 % 50Hz |
|
2.input power: |
0.92kw |
|
3.Bottle’s specification |
270x490x56mm |
|
4.bottle volume |
5 gallon |
|
5.bottle washing capacity |
400-450pcs/h |
|
6.outsize |
2000x1400x23200mm |
|
7.packing size |
2050x1450x2370mm |
|
weight |
280kg |
|
9.Gross weight |
320kg |
FOB price USD:7000.00
The price include 2 meters plastic conveyor.(one more meter USD:170.00 /m)
If want change into SS conveyor should inscrease USD:265.00 for one meter.
3.Automatic bottle loading machine JSP-2
1.Power supply: |
220+5 % 50Hz |
|
2.input power: |
0.55kw |
|
ing pressure ofcompressed air |
p/0.6mpa |
|
4.Bottle’s specification |
270x490x56mm |
|
5.bottle volume |
5 gallon |
|
6.bottle washing capacity |
300-450pcs/h |
|
7.outsize |
2100x640x1020mm |
|
8.packing size |
2250x890x1270mm |
|
weight |
150kg |
|
10.Gross weight |
200kg |

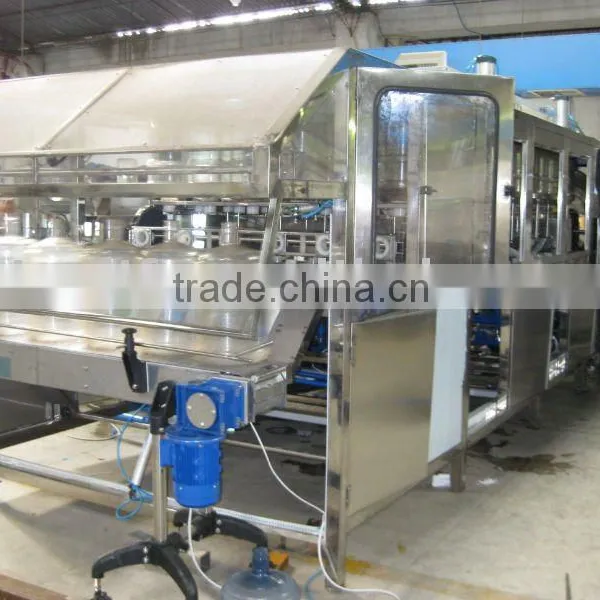

4.Full Automatic mineral water bottle sealing machine XG100/J 450 bottle/h
This machie can fulfill pure water washing, filling ,capping,
Main parameter
item |
specification |
|
Output capacity |
450 bottles/H |
|
Volume |
18.9L(5 gallon) |
|
| ||
Bottle’s specification |
φ270×490×φ56 |
|
Cap’s specification |
φ58×40 |
|
Total input power |
11.7KW |
|
Motors power |
Transmission Motors |
Loading 0.37KW |
Drug washing pump |
0.37KW (5 sets) |
|
Rinsing pump |
0.37KW (2 sets) |
|
Pure water rising |
0.37KW (1 set) |
|
Filling pump |
0.55KW (4 sets) |
|
Cap sorter |
0.06KW |
|
Power supply: |
AC three phase 380V±5% 50Hz |
|
Rated current |
32A |
|
Net weight |
500Kg |
|
Outsize |
5350×1015×1590(mm) |
|
Working pressure of compressed air |
0.1 M3 0.17M3/Min 0.8MPa/Cm2 |
|
water supply requirement |
11.5M3/H |
|
5.Cap sterilization machine
This machine is used to sterilize the cap before screwing on the bottle ,
6.Sealing machine
This machine used for seal the 5 gallon neck label .Adop the stream shrink the label
V. Service and guarantee
Installation
The buyer could send technicist to our factory to learn how to install and operate the machine for free, we also can send engineer to buyer's factory for installation and training, buyer shall offer the travel fee and all the room and board charges.if the necessary,the buyer supply the plant size.We also could design the equipment layout for the buyer information and give our’s suggestion.
After-sale service
We offer 12 months guarantee, if any parts broken in the guarantee time, the buyer send us the broken parts and we will find the the problem and solve it for free, after the guarantee time we will continue keeping the technical support ,but for offer the parts the buyer should pay for it.Moreover,we could aslo help the client purchase the accessory and the consumable items.
