Complete set of the machinery include:
1) Automatic caps puller,
2) Automatic brush washer
3) Automatic bottle loader
4) Automatic washing filling capping machine
5) Automatic caps dosing system

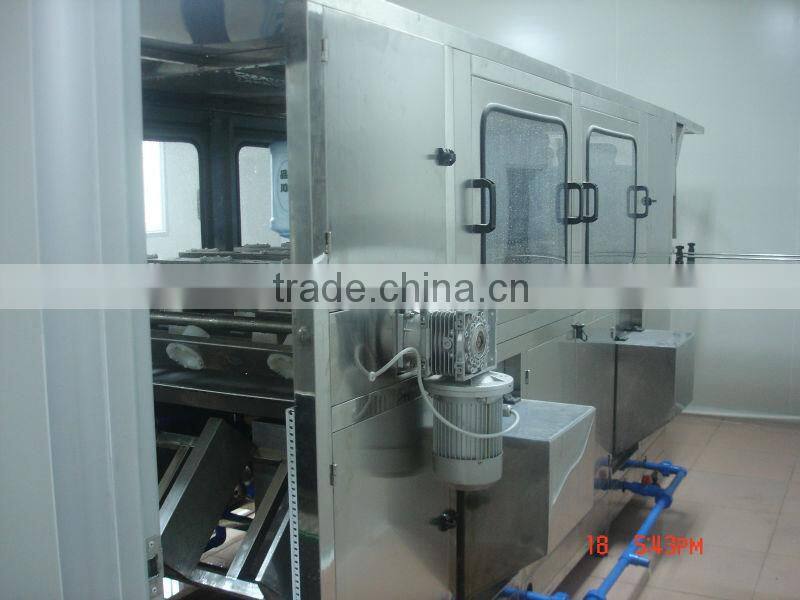

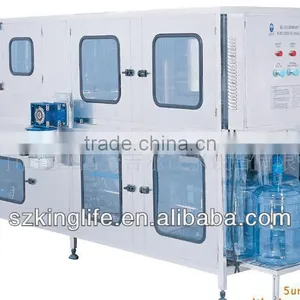

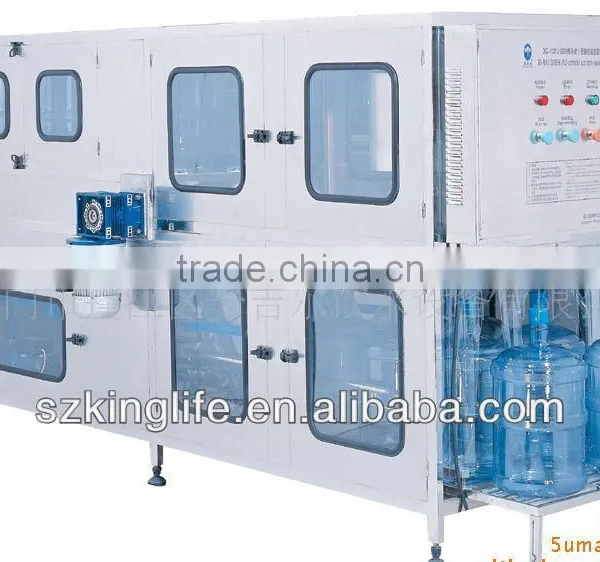

Bottle water filling machine
We are the filling machine manufacturers of water filling machine.
Our bottle water bottling machine can filling 5 gallon water bottles,3 gallon water bottles.
And our water filling machine are automatic filling machine
Water bottle filling machine for 5 gallon bottle (19.8Lts), suitable for 6 gallon water bottle for the automatic water bottling process. with multi stage bottle rinsing, fast speed filling with water level and PLC control system, chain type roller capping,automatic conveyor system.
Specification as following:
Model |
XG-100/J(300BPH)A |
XG-100/J(300BPH) |
XG-100/J(450)A |
XG-100/J(450BPH) |
Number of rinsing rows, filling nozzle, capping type (head/Chain) |
8-2-2(Capping head) |
8-2-1(Capping chain) |
8-3-3(Capping head) |
8-3-1(Capping chain) |
No. of bottle carrier each rinsing row |
2 |
2 |
3 |
3 |
Production capacity: 18.9L bottles/hr |
300 |
300 |
450 |
450 |
Applicable bottle specification: |
φ=270 H=490mm |
φ=270 H=490mm |
φ=270 H=490mm |
φ=270 H=490mm |
Caps specification |
Φ58 x 40mm |
Φ58 x 40mm |
Φ58 x 40mm |
Φ58 x 40mm |
Pressure (Mpa) |
P≥0.6 |
P≥0.6 |
P≥0.6 |
P≥0.6 |
Main Motor power (kw) |
6 |
6 |
7.14 |
7.14 |
Dimension (mm) |
3510 x 980 x 1660 |
3105 x 800 x 1660 |
3510 x 1200 x 1950 |
3050 x 1200 x 1950 |
Weight(kgs) |
600 |
850 |
980 |
1020 |
we provide bottle mould design and plant layout design service , if you do not have your own plan about this ,we can send you many design for you choose from .
we can arrange engineer of oversea machine installation,
After sales Service Terms: we provide one year limited warranty*1 and life long support service for all of our products.
During the warranty period, if any product purchased from our company malfunctions, we will provide necessary technical support, or even send engineers to solve the problem with the buyer providing proper accommodation, all the fees for transportation(the air tickets to you for economy class), insurance and medicines, and salary for our engineers*2 and 1 translater,the sallary based on USD60 per day.
