PVC Frabic HF Welding And Cutting Machine
Working principle of high frequency welding machine :
Plastic welding machine of high frequency is suitable for two-side welding package. Applying the heating principle of high frequency, the machine makes the intemal molecules of select heating principle of high frequency, the machine makes the intermal molecules of select material vibrating and causes heat energy welding.
Advantage of high frequency welding machine :
1. By adopting the same axle vibrator with specifical low loss.
2. It can adjust its output according to the mould’s specifications and the materials’ thickness.
3. When output of current protection is over large,the machine will cut off the output of the high frequency in order to protect the internal electric from damaging.
4. Apart from the heating of high frequency,the electric machine has 1000W heating wire and thermoset so that it can quicken welding time and get rid of sparks when the mould preheats.

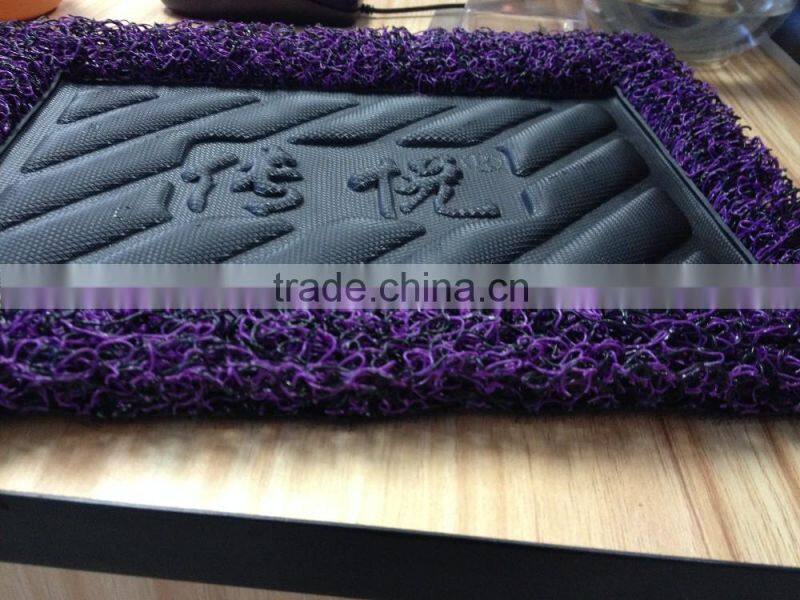

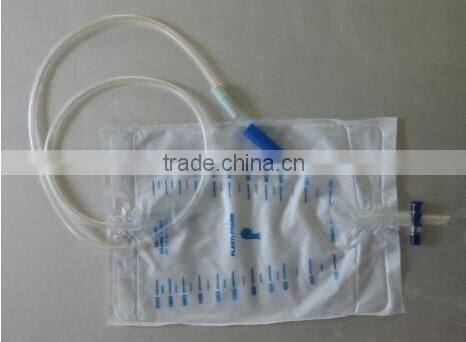

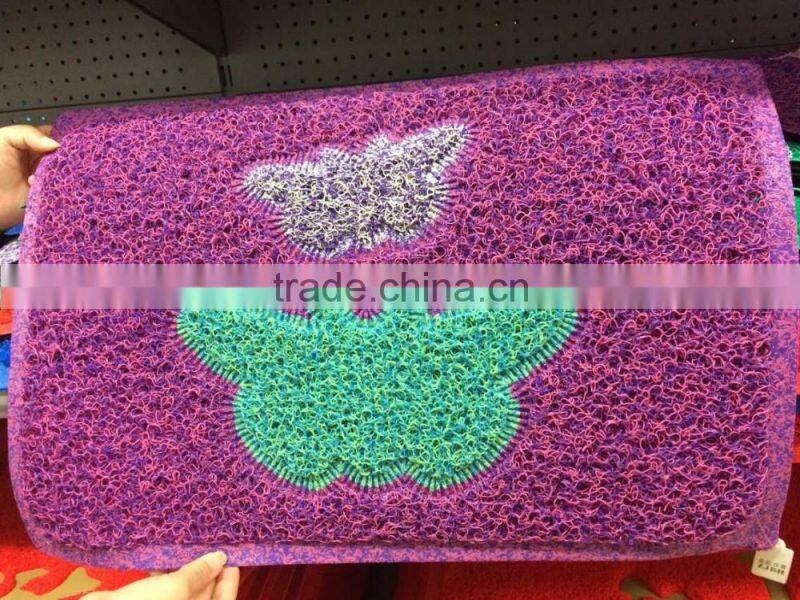

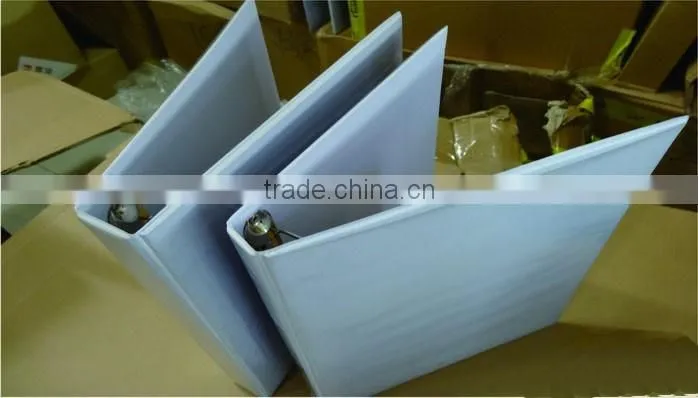

Application of high frequency welding machine:

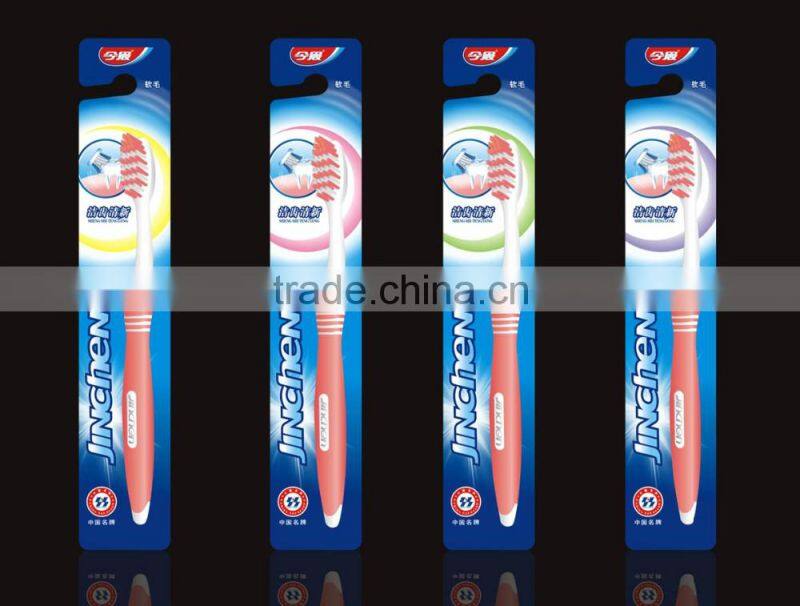

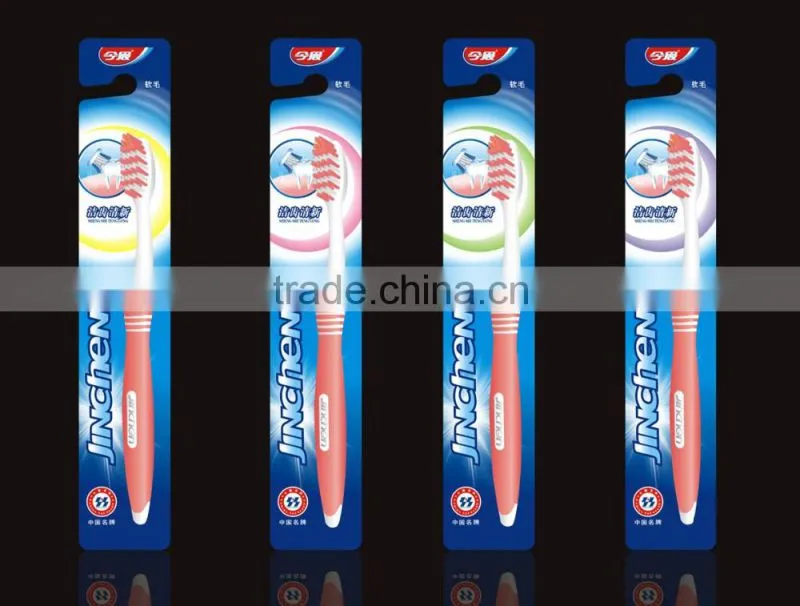

1. Welding without seam for sports shoes cover, packing for toothbrush etc.
2. Synthetic leather
3. Sun visor
4. Material covered with fabric
5. Blister with paper card
6. Trademark, watchband, leather belt, CD bag,
7. PET, APET, PETG, PP, PET, EVA etc
8. phone cover

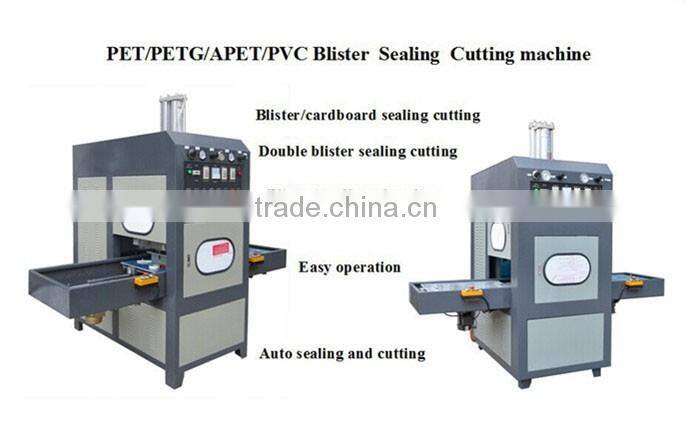

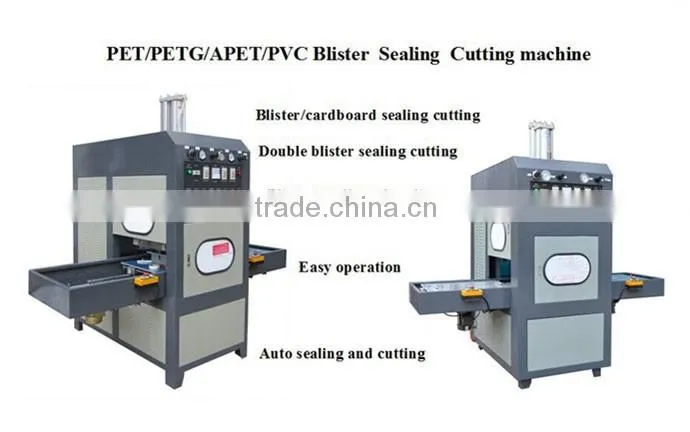

Machine features of High Frequency Welding Machine:
1. It adopts PLC and touch screen control to make the work precisely, and reduces operation difficulty.
2. Automatic slide table makes lower reject ratio and reduces labor intensity.
3. It requires low skill for operators. The operator can use it after short training.
4. The surface is perfect without seam, and the welding is strong, stiff and smooth.
5. It has big pressure, so it can cut the wasted edge in a short time after welding. So it makes the edge and pattern smooth and perfect.
6. Left & right slide table design, sometimes, 1 mold can be shared. So it saves the expensive mold cost.
7. It adopts high quality components, stable and low failure rate.
8. It adopts sensitive spark protection device. When it sparks, it will cut off the high frequency oscillation power, protect mold and material.
9. Without high frequency leakage because it adopts good shield device.
10. The mold can be changed easily and quicky because it adopts hanging mold device.
11. Safe & rational design to make sure the slide table will not hurt hands.
12. Special & strong head: Special design makes the pressure equably to make the products perfectly.
13. Heating device: It adopts heating device to increase the welding area for special material PET, PU, ETC.
14. Output power tuner: It can be adjusted according to different material to make sure the products can be made
perfectly.

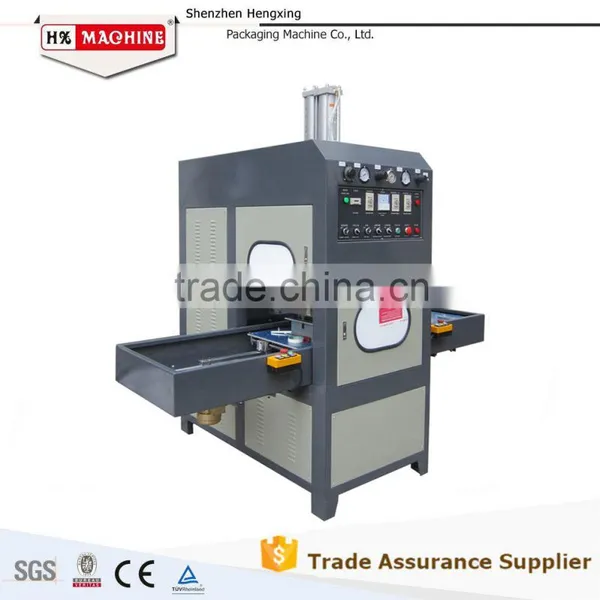

PVC Frabic HF Welding And Cutting Machine
| Items | Parameter | ||||||||||||||
| Model | HX-8KW-15T | ||||||||||||||
| Power supply | 380V/50HZ | ||||||||||||||
| Power | 15000W | ||||||||||||||
| Input Power | 16KVA | ||||||||||||||
| Oscillation frequency | 27.12MHZ | ||||||||||||||
| Dimension of upper board | 400*600 mm | ||||||||||||||
| Gap of Electrode | 110-250 mm | ||||||||||||||
| Air/Oil presure | 15 Ton | ||||||||||||||
| Vibration tub | 7T69RB | ||||||||||||||
| Automatic heating system | 30-250 | ||||||||||||||
| Machine size | 2310*1620*2020 mm | ||||||||||||||
| Weight | 1000kg | ||||||||||||||
