Home > Products > Filling Machine > HX-300 Portable Ultrasonic Plastic Spot Welder

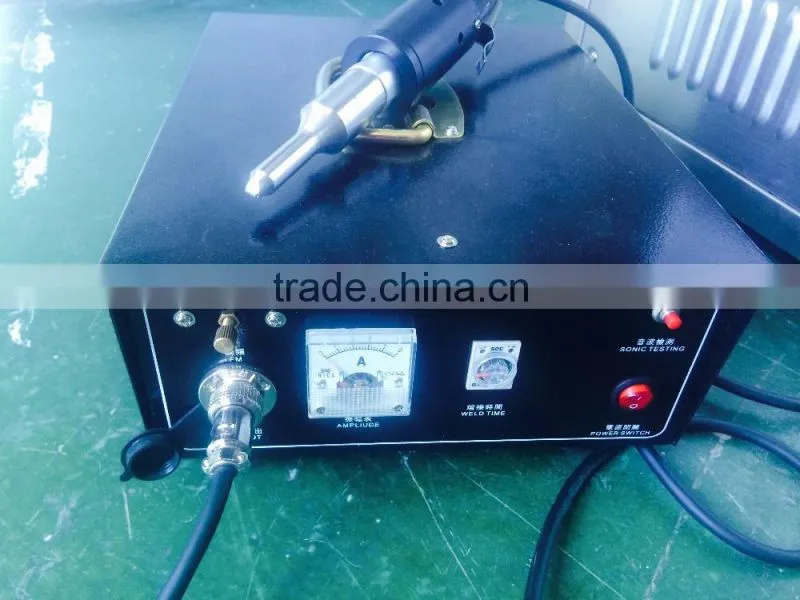

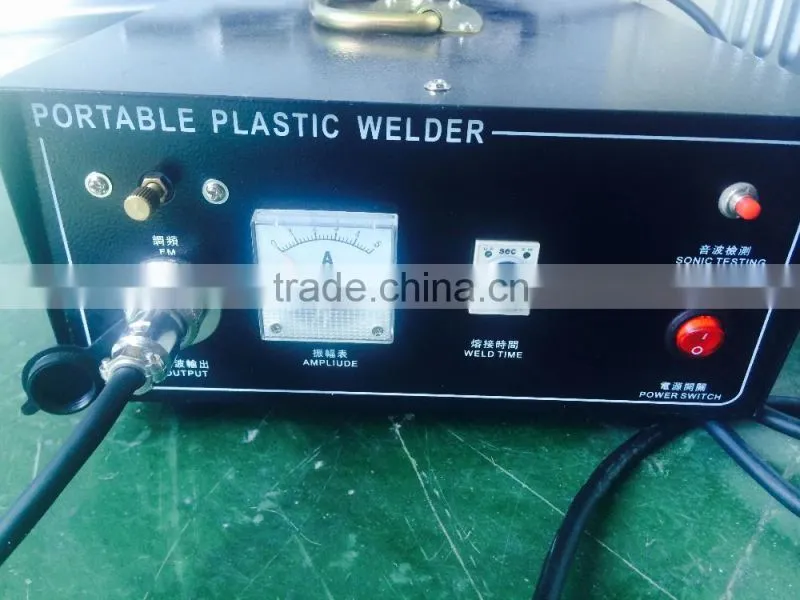

HX-300 Portable Ultrasonic Plastic Spot Welder
- 60 Set / Sets per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card
- Huitai hot selling OEM auto hot plate sheet board plastic pallet welding machine
- Auto Plastic Pallet sheet plate board Hot Plate Welding Machine for pallet
- automatic PP board edge sealing machine, coroplast sheet layer pads welding machine
- Huitai plastic capillary tube welding machine plastic welders pvc plastic hot plate welding machine bonding
- PP Membrane Hot Filter Plate Chamber Filter Press Plate and Frame Filter Plate welding machine
- Plastic PP Membrane Hot Chamber Filter Press vertical Frame Filter Plate welding machine plate-and-frame belt
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Hengxing | Model Number: | HX-300 |
Voltage: | 220V/50Hz 110V/60Hz | Power: | 300-800W | Frequency: | 20Khz |
Welding Area: | Depend | Dimensions: | 268*168*198MM | Weight: | 14KG |
Usage: | Ultrasonic Plastic Spot Welder, Ultrasonic Plasitc Welder | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Portable Ultrasonic Plastic Spot Welder
Pedal Control Portable Ultrasonic Plastic Spot Welder
Portable Ultrasonic Spot welder | |
Mainly application of handheld ultrasonic spot welder/spot welding | |
Spot welding, riveting, screw imbedding, appliqué welding, often used in the field of stationery industries, consume electronics industry and electronics industry, PVC,PET,acrylic,ABS,PP and other thermoplastic spot welding | |
Introduction of Ultrasonic Handheld spot welder/welding | |
ultrasonic welding machine is applied for plastic welding process, like, ultrasonic ABS welding, ultrasonic Acrylic welding, ultrasonic PVC and ABS welding, ultrasonic PA welding, ultrasonic PC welding, ultrasonic PE welding, ultrasonic pp welding, ultrasonic PE welding, ultrasonic PP welding, ultrasonic PS welding, ultrasonic PVC welding. | |
Characteristics of handheld ultrasonic spot welding | |
1.Proprietary anti-corrosion technology, even in the harsh acid salt (such as electroplating factory) working environment, the service life of up to ten years. | |
Advantages of handheld ultrasonic spot welder/welding | |
1:low power consumption, firm welding, low noise, small-sized, dust-proof, high performance 2:automatic frequency-tuned system: take PLL for the ultrasonic circuit control 3: with pedal switch to convenient control 4: compacted, space-saved, convenient to transport | |
|
HX-300 Portable Ultrasonic Plastic Spot Welder
Model | HX-300 |
Power | 300w,500w,800w,1500W |
Voltage | 220V/50Hz 110V/60Hz |
Output Frequency | 20khz/28kHz/35kHz/40kHz |
Cohesion Specification | 1-20mm/any shape and pattern |
Cooling mode | Fan cooling |
Welding material | PP/PE/PET/ABS/ACRYLIC/PVC/FABRIC/NON-WOVEN CLOTH/NYLON |
Working mode | Separated excited |
Volume | 268*168*198mm(L*W*H) |
Welding pressure | 5-6kgs/cm2 |
Net weight | 10KG |
Gross weight | 15kgs |
