20Liter Bottle Flushing Filling Capping Machine

20Liter Bottle Flushing Filling Capping Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, WATER
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Other, WATER
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220v
Power 1.5kw
Place of Origin Guangdong, China
Brand Name Kinglife
Model Number XG-100J
Dimension(L*W*H) 3105 x 800 x 1660mm
Weight 380kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Detailed Product Description

We are the filling machine manufacturers of water filling machine.

Our bottle water bottling machine can filling 5 gallon water bottles,3 gallon water bottles.
And our water filling machine are automatic filling machine

Water bottle filling machine for 5 gallon bottle (19.8Lts), suitable for 6 gallon water bottle for the automatic water bottling process. with multi stage bottle rinsing, fast speed filling with water level and PLC control system, chain type roller capping,automatic conveyor system.


Specification as following:

Model

XG-100/J(300BPH)A

XG-100/J(300BPH)

XG-100/J(450)A

XG-100/J(450BPH)

XG-100/J(600BPH)

XG-100/J(900BPH)

Number of rinsing rows, filling nozzle, capping type (head/Chain)

8-2-2(Capping head)
Linear type bottle output

8-2-1(Capping chain)
L shape bottle output

8-3-3(Capping head)
Linear type bottle output

8-3-1(Capping chain)
L shape bottle output

8-4-1(Capping chain)
L shape bottle output

10-6-1(Capping chain)
L shape bottle output

No. of bottle carrier each rinsing row

2

2

3

3

4

6

Production capacity: 18.9L bottles/hr

300

300

450

450

600

900

Applicable bottle specification:

φ=270 H=490mm

φ=270 H=490mm

φ=270 H=490mm

φ=270 H=490mm

φ=270 H=490mm

φ=270 H=490mm

Caps specification

Φ58 x 40mm

Φ58 x 40mm

Φ58 x 40mm

Φ58 x 40mm

Φ58 x 40mm

Φ58 x 40mm

Pressure (Mpa)

P≥0.6

P≥0.6

P≥0.6

P≥0.6

P≥0.6

P≥0.6

Main Motor power (kw)

6

6

7.14

7.14

8.24

12.64

Dimension (mm)
(washing/filling)

3510 x 980 x 1660

3105 x 800 x 1660
2275 x 720 x 1660

3510 x 1200 x 1950

3050 x 1200 x 1950
3000 x 660 x 1950

3145 x 1500 x 1950
3000 x 660 x 1950

3150 x 2100 x 1950
3600 x 600 x 1950

Weight(kgs)

600

850

980

1020

1350

1660



Complete set of the machinery include:

1) Automatic caps puller,

2) Automatic brush washer

3) Automatic bottle loader

4) Automatic washing filling capping machine

5) Automatic caps dosing system

6) Automatic caps sleeve label shrinking machine

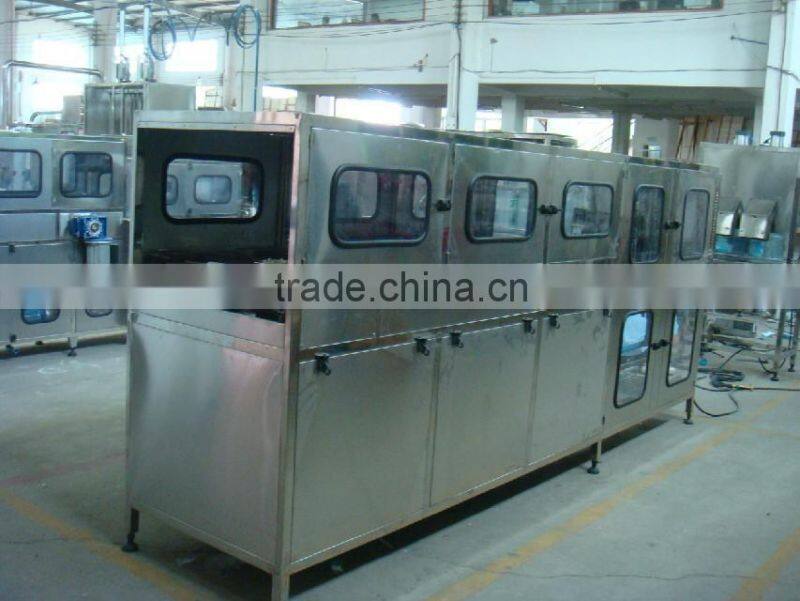

20Liter bottle flushing filling capping machine
