Automatic Vacuum Plate Vulcanizing Molding Machine Series High Quality
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
TW
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
400T Vertical Rubber Injection Molding Machine Low PriceNegotiableMOQ: 1 Set -
Rubber Strip CutterUS$ 1 - 2,000MOQ: 1 Set
-
300T Vertical Rubber Injection Molding Machine Low PriceNegotiableMOQ: 1 Set
-
100T Automatic Vacuum Plate Vulcanizing Molding Machine SeriesNegotiableMOQ: 1 Set
-
200T Vertical Rubber Injection Molding Machine Low PriceNegotiableMOQ: 1 Set
Condition
New
Place of Origin
Zhejiang, China
Brand Name
TW
Model Number
TWZ-100T
Power(W)
30kw
Dimension(L*W*H)
2600*2000*2100mm
Weight
7000kg
Certification
CE ISO9001
Warranty
one years
After-sales Service Provided
Engineers available to service machinery overseas

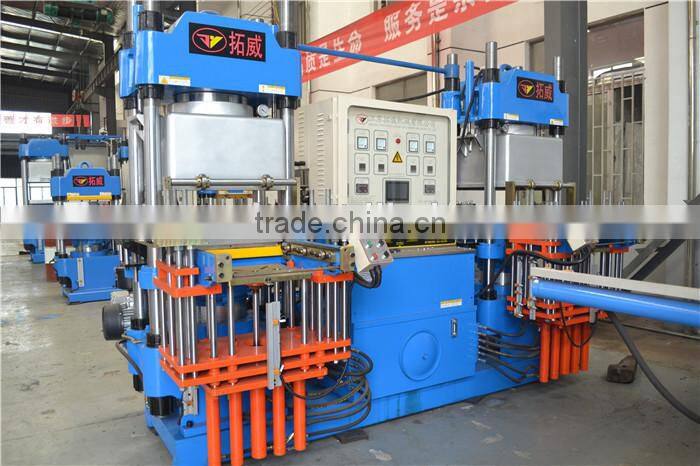

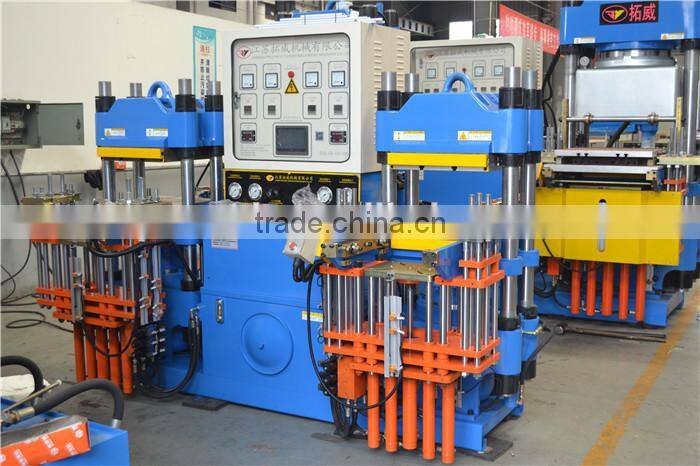

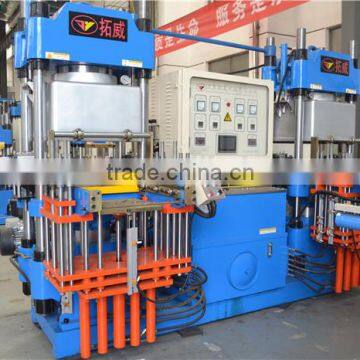

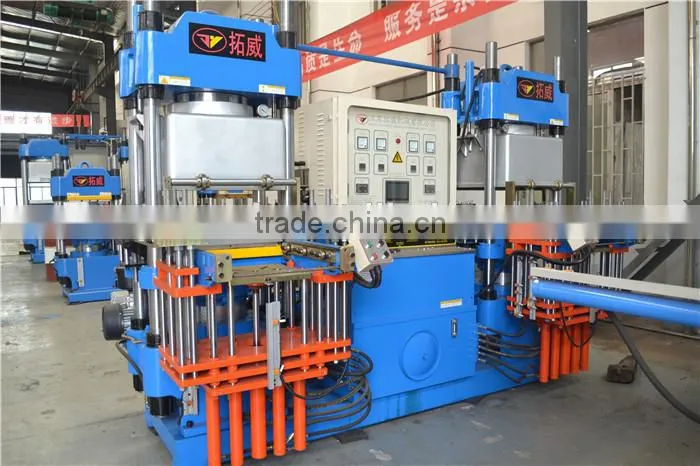

Automatic vacuum plate vulcanizing molding machine series high quality
Machine Characteristics:
(1) Double powers, double oil pumps, double motors and double oil coolers are applied for the two axles to work independently.

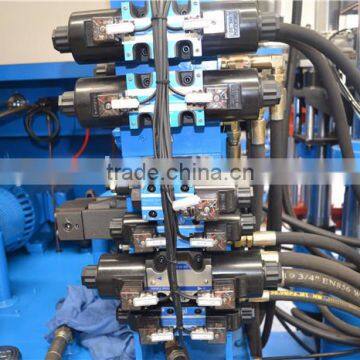

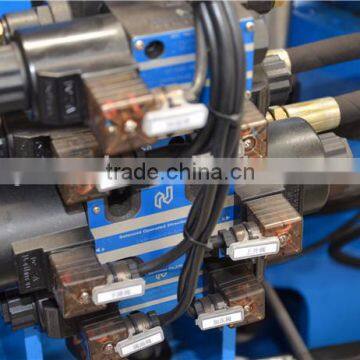

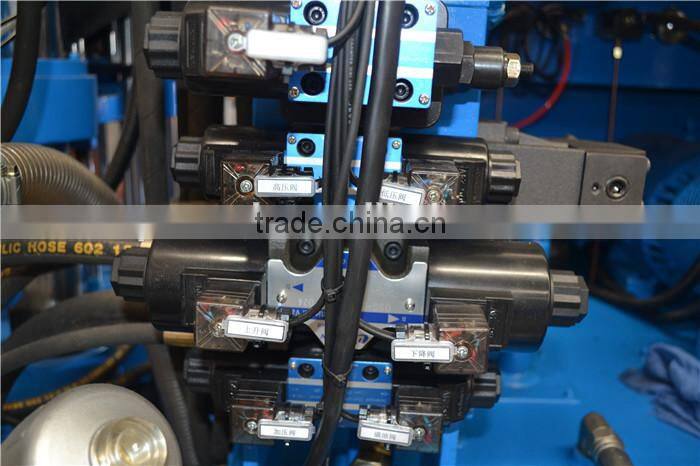

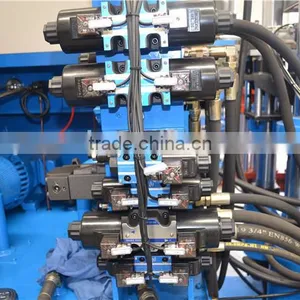

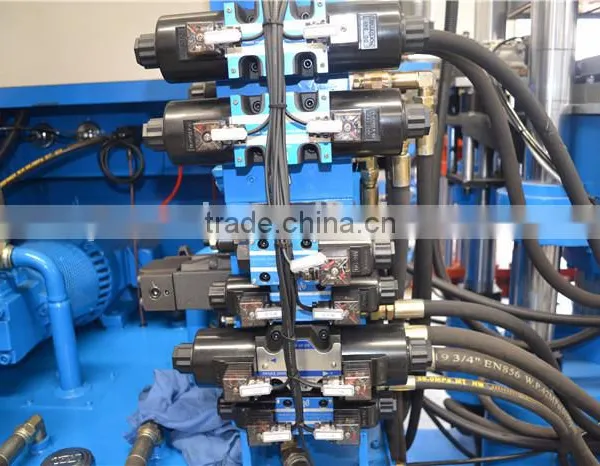

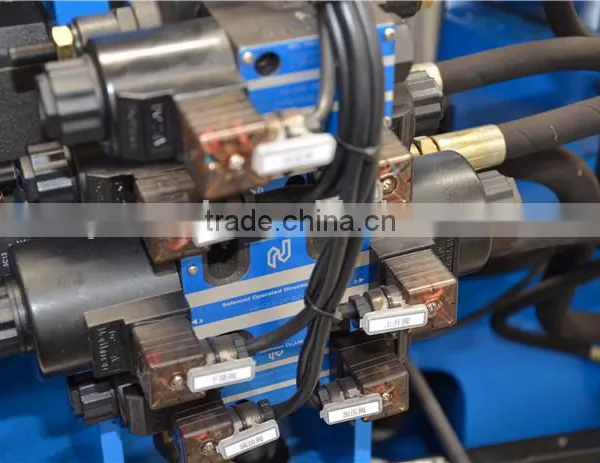

(2) The oil system is unique in design with good stability, faster lift-up and lift-down speed compared with other brands when unloading/loading mold.

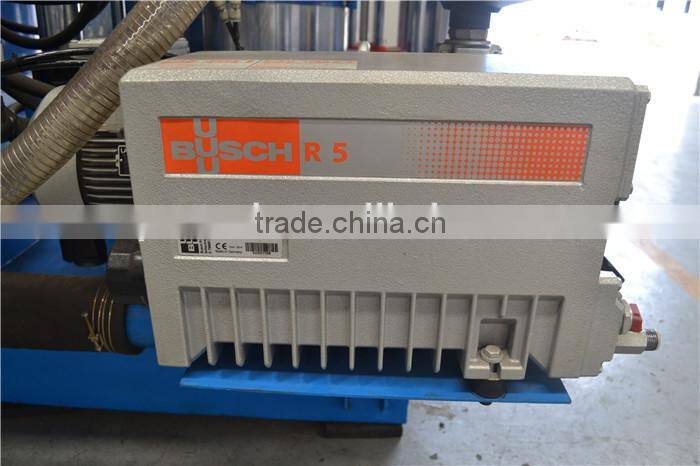

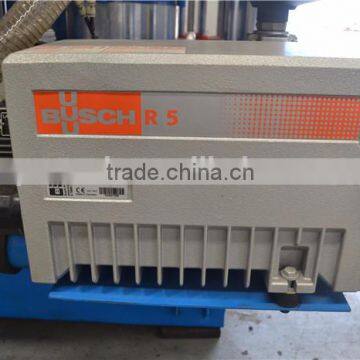

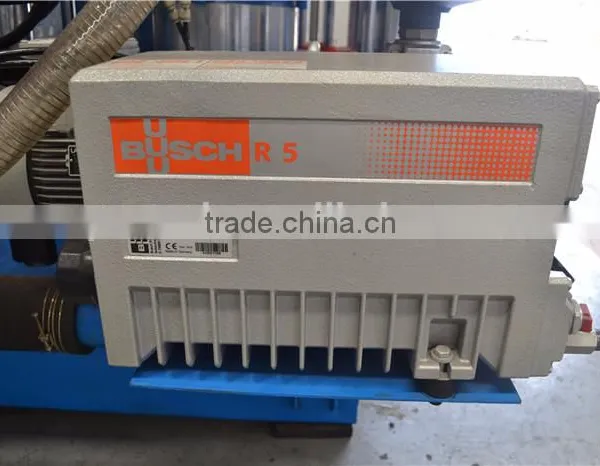

(3) High vacuum and the average pumping method are applied for the manufacturing of stable products and improving the quality and productivity.
(4) The pedestal vacuum oxygen tank provides large oxygen storage space.The new mold raising mechanism design has the advantages of long working life, quiet mold-unloading/loading, fastness and stability.
Specification:
Type |
TWZ-100T |
TWZ-200T |
TWZ-250T |
TWZ-300T |
TWZ-350T |
TWZ-400T |
TWZ-500T |
Clapping force(TON) |
100 |
200 |
250 |
300 |
350 |
400 |
500 |
Stroke(MM) |
250 |
250 |
300 |
300 |
300 |
300 |
300 |
Working Plate Size(MM) |
up:400×400 down:450×460 |
up:536×536 down:540×560 |
up:600×600 down:600×650 |
up:600×600 down:650×650 |
up:700×700 down:750×750 |
up:750×750 down:800×800 |
up:850×850 down:900×900 |
Dimeter of cyhnder(MM) |
250 |
355 |
400 |
450 |
475 |
500 |
560 |
Horse powet(HP) |
7.5×2 |
10×2 |
10×2 |
10×2 |
15×2 |
15×2 |
15×2 |
Heater power(KW) |
16 |
25 |
31 |
34 |
40 |
57 |
58 |
Total power(KW) |
30 |
45 |
52 |
55 |
68 |
83 |
86 |
Type of mold openning |
2RT/3RT/4RT UP/DownIn/Out-2RT/3RT/4RT |
||||||
Gross weight(KG) |
7000 |
9000 |
11500 |
13500 |
16000 |
20000 |
35000 |
Machine size(MM) |
2600×2000×2100 |
3000×2200×2500 |
4100*2400*2500 |
3500×2700×2600 |
3700*2800*2700 |
3700*2800*2900 |
3900*2900*3000 |
Type |
TWZ-100T |
TWZ-200T |
TWZ-250T |
TWZ-300T |
TWZ-350T |
TWZ-400T |
TWZ-500T |
Clapping force(TON) |
100 |
200 |
250 |
300 |
350 |
400 |
500 |
Stroke(MM) |
250 |
250 |
300 |
300 |
300 |
300 |
300 |
Working Plate Size(MM) |
up:400×400 down:450×460 |
up:536×536 down:540×560 |
up:600×600 down:600×650 |
up:600×600 down:650×650 |
up:700×700 down:750×750 |
up:750×750 down:800×800 |
up:850×850 down:900×900 |
Dimeter of cyhnder(MM) |
250 |
355 |
400 |
450 |
475 |
500 |
560 |
Horse powet(HP) |
7.5 |
10 |
10 |
10 |
15 |
15 |
15 |
Heater power(KW) |
8 |
12.5 |
15.5 |
17 |
20 |
28.5 |
29 |
Total power(KW) |
18 |
25.5 |
29 |
30.5 |
37 |
44.5 |
46 |
Type of mold openning |
2RT/3RT/4RT UP/DownIn/Out-2RT/3RT/4RT |
||||||
Gross weight(KG) |
4000 |
4500 |
5700 |
6700 |
8000 |
10000 |
15000 |
Machine size(MM) |
1900×2000×2100 |
2300×2200×2500 |
2700*2400*2500 |
2900×2700×2600 |
3200*2800*2700 |
3200*2800*2900 |
3200*2900*3000 |

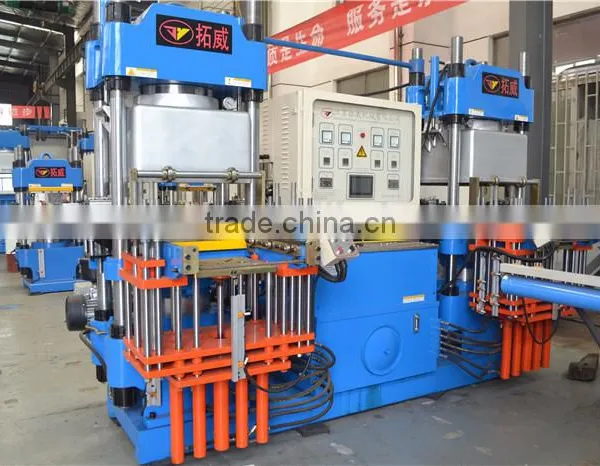

Automatic vacuum plate vulcanizing molding machine series
If you interested, please conatct Tammy Yan!
