BP93420IE Pressure Transmitter

BP93420IE Pressure Transmitter thumbnail-1
BP93420IE Pressure Transmitter thumbnail-2
BP93420IE Pressure Transmitter photo-1
BP93420IE Pressure Transmitter photo-2
US$ 40 - 45 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
Hengtong
Model Number:
BP93420IE
Contact Supplier Request Quote Chat Now
Baoji Hengtong Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xi/an Airport
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shaanxi, China
Brand Name Hengtong
Model Number BP93420IE
Product Description

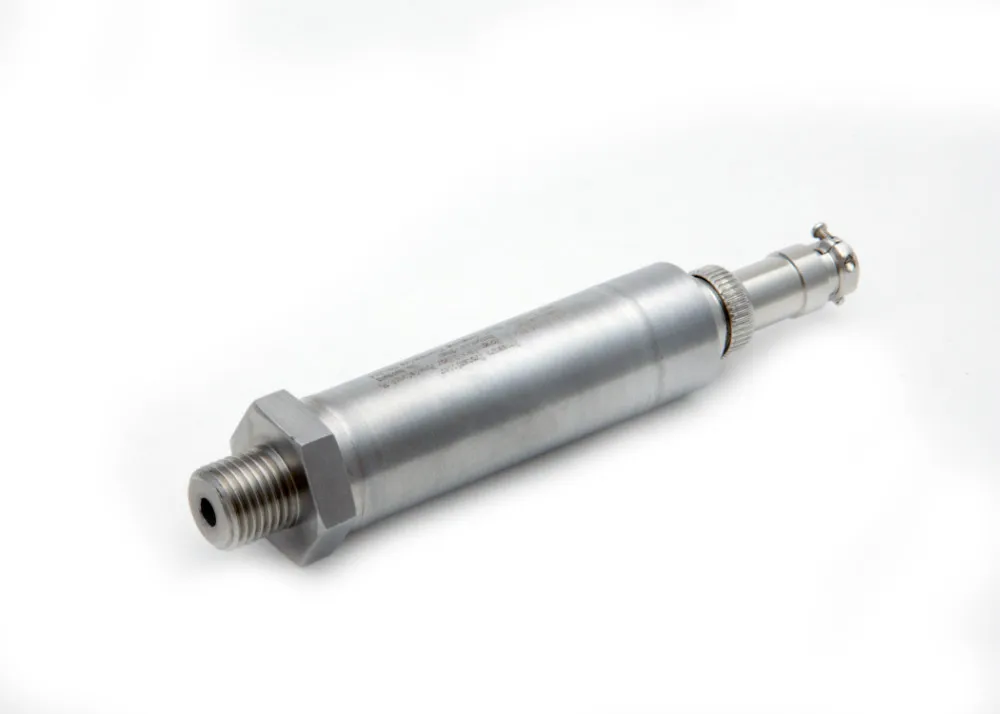

BP93420IE Pressure Transmitter

BP93420IE pressure transmitter use HT series piezoresistive silicon oil-filled sensor as measurement component. Sensor’s output transferred to standard output signal via integrated amplify circuit. Have high reliability &stability

Feature

Aviation connector Protection: IP65; Various output signal
Marking: ExiaIICT6; CE certification Application

Compatible with 316LSS,noncorrosive gases & liquids
Apply in measuring pressure of liquids&gases in surroundings have shock
Petroleum industry, chemical industry, metallurgy industry, electric power, hydrology etc





Measurement Range
-0.1．．．0~0.01．．．~100MPa
Proof pressure
≤1.5X rated pressure or 110MPa which ever is less
Pressure type
Gauge, absolute ,sealed gauge
Accuracy
±0.25%（typical） ±0.5%（Max.）
Long term stability
±0.1%F.S/year（typical） ±0.2%F.S/year（Max.）
Temperature Error- Zero
±0.03%F.S/℃（≤100KPa） ±0.02%F.S/℃（＞100KPa）
Temperature Error -Span
±0.03%F.S/℃（≤100KPa） ±0.02%F.S/℃（＞100KPa）
Operating Temperature Range
-20℃~80℃
Storage Temperature Range
-40℃~120℃
Power supply
15～30VDC
Output signal
4～20mA 0～10/20mA 0/1～5/10VDC
Pressure port
M20×1.5,G1/2 or customize
Housing material
1Cr18Ni9Ti stainless steel
Diaphragm material
316L
O-ring
Fluororubber
Cable
polyethylene
Insulation resistance
100MΩ,100VDC
Protection
IP65
Detailed Images
