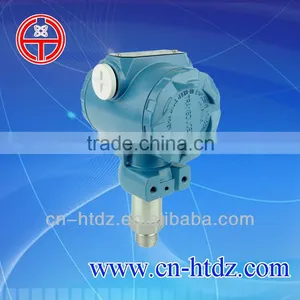

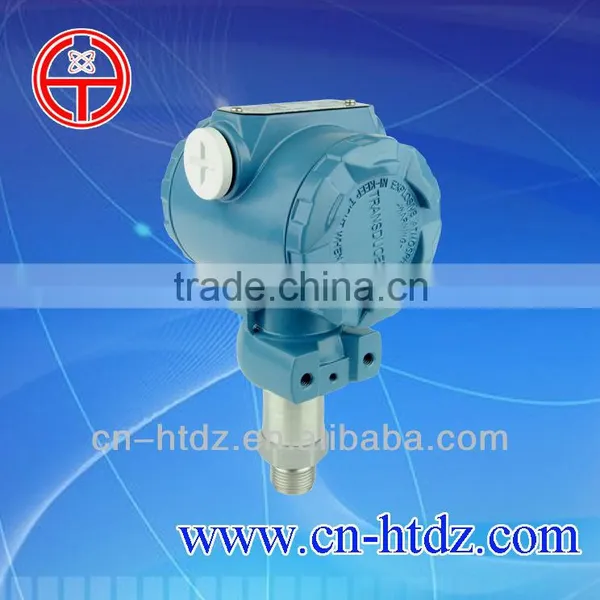

Help CenterPiezoresistive Silicon Pressure Transmitter With 2088 Housing
Related Products
-
4~20ma Flush Diaphragm Pressure TransmitterUS$ 1 - 100MOQ: 1 Piece -
Hight Temperature Common Pressure TransmitterUS$ 1 - 100MOQ: 1 Piece
-
BP93420-IQT High Temperature Pressure TransmitterUS$ 80 - 100MOQ: 1 Piece
-
Low Cost Pressure TransmitterNegotiableMOQ: 1 Piece
-
Pressure TransmitterUS$ 60 - 120MOQ: 1 Piece
Specifications
Wide range, cast aluminium & explosion-proof housing,Various pressure port
Various output signal, scene adjustable
Description
BP93420IIC pressure transmitter uses HT series piezoresistive silicon oil-filled sensor as the signal measuring element. Signal processing circuit located in the stainless steel housing, can convert sensor signal into standard output signal. All the products through components and semi-finished products test, finished products burn-in screening, are with stable and reliable performance. Have strong anti-interference performance, can working in harsh environment conditions for long term.
Feature
² Wide range, cast aluminium & explosion-proof housing,
² various pressure port
² Various output signal, scene adjustable
² Multiple protect, strong anti-interference capability.
² Marking: ExiaIICT6.
Application
² Compatible with 316LSS, noncorrosive gases & liquids.
² Special use in harsh environment conditions
Specification
Measurement Range |
-0.1….0~0.01...~100MPa |
Proof pressure |
≤1.5X rated pressure or 110MPa which ever is less |
Pressure type |
Gauge, absolute ,sealed gauge |
Accuracy |
±0.25%(Typical) ±0.5%(Max.) |
Long term stability |
±0.2%F.S/year |
Operating Temperature Range |
-20°C~80°C |
Storage Temperature Range |
-40°C~120°C |
Power supply |
15~30VDC |
Output signal |
4~20mA 0~10/20mA 0/1~5VDC |
Pressure port |
M20×1.5 or customize |
material |
1Cr18Ni9Ti stainless steel |
Diaphragm material |
316L |
O-ring |
Fluororubber |
Electrical housing |
Cast aluminium alloy(2088housing) |
Insulation resistance |
100MΩ,100VDC |
Protection |
IP65 |
