Bus Wash

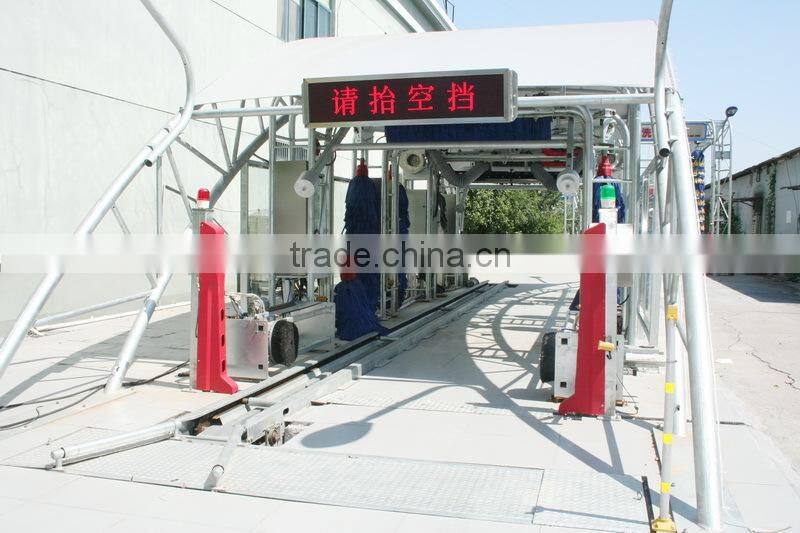

Automatic Bus Wash
Bus Washing Machine
Product Name |
Automatic Bus Wash |
Model No. |
BS-9000 |
Washing Type |
Automatic Water Spray, Automatic Shampoo Spray and Automatic Brush Washing |
Max. Cleaning Dimension |
W*H=2600*4200mm or customized size |
Machine Dimension |
L*W*H=12000mm*5360mm*4950mm |
Total Machine Net Weight |
6200KGS |
Packing Volume |
44.63CBM |
Power Supply Requirement |
Three-phase AC380V/17.5KW or customized voltage |
Water Consumption |
About 100L/Bus |
Electricity Consumption |
0.4 KW-0.5KW/Bus |
Washing Speed |
60 buses/Hour |
Standard configuration | |
|

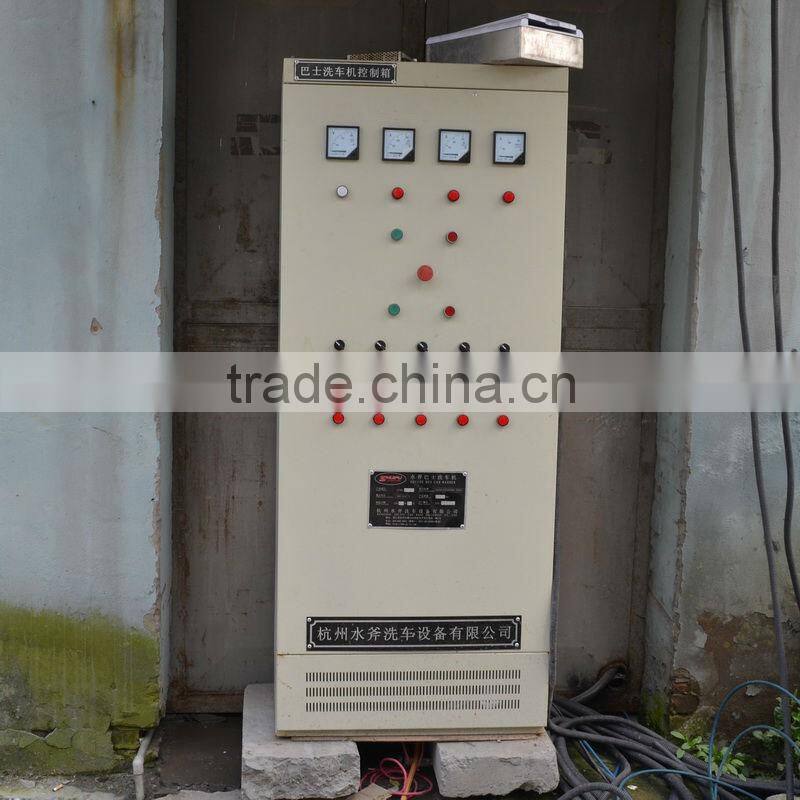

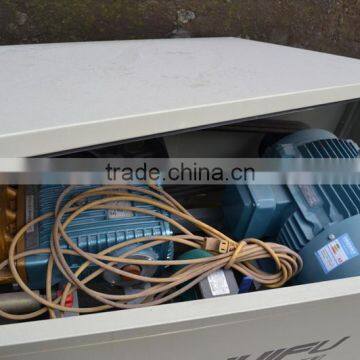

1set high quality frame with hot galvanizing treatment 1set main body with hot galvanizing treatment 2sets brush base with hot galvanizing treatment 4sets brush swing bar with hot galvanizing treatment 4sets checking device for the location of brush swing bar 4sets brush 2sets Pneumatic control cabinet, stainless steel 1set computer control cabinet, stainless steel 1set electric control cabinet, stainless steel 1set high quality water pump, model XBD7.2/1.67-40ALDGX6 1set water pump box, stainless steel 1set water spray system for the entrance, galvanized tube 1set water spray system for the exit, galvanized tube 1set foam spray system, galvanized tube | |
Optional Functions | |
Roof |
Optional |
Top Brush |
Optional |
Top Dryer |
Optional |
Side Dryers |
Optional |
Chassis Cleaning Device |
Optional |
Machine Features

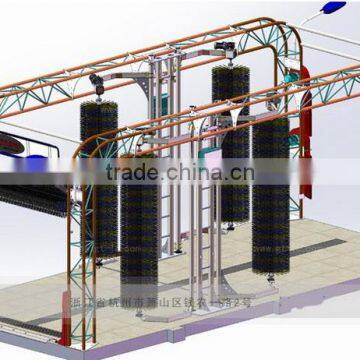

Equipment Shape Design
Bird's nest design concept is the first design in the world. This design has features of luxury, reasonable layout, fine quality, complete functions and lighting system.
Antirust process

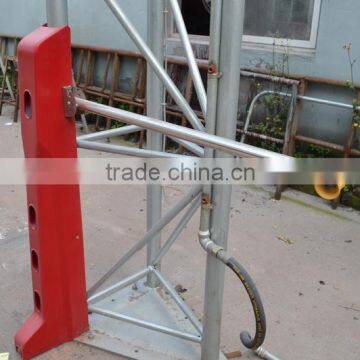

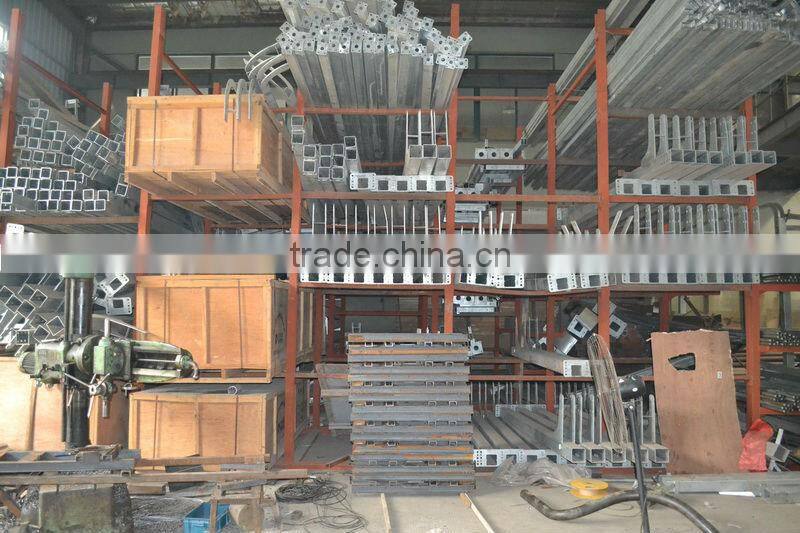

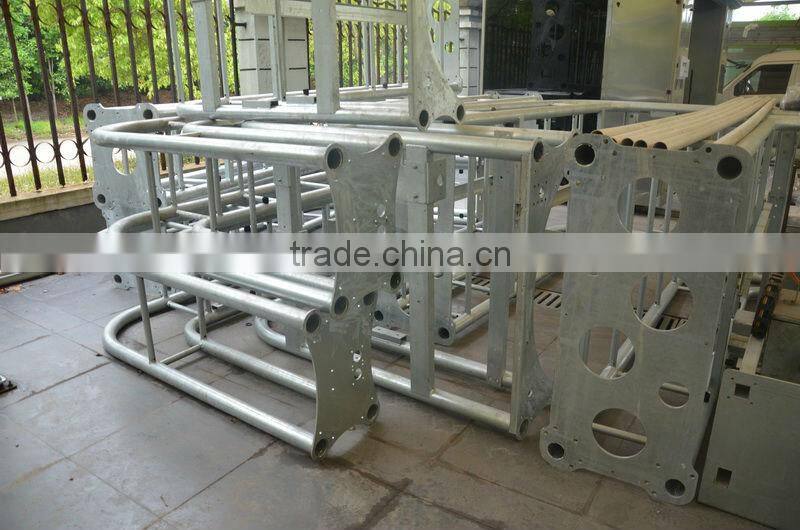

Machine frame uses high quality section bar steel tube and galvanized pipe with features of high strength and high performance. The steel surface is treated with sand blast, hot galvanizing and epoxy coating. The life span of machine frame is above 10years.

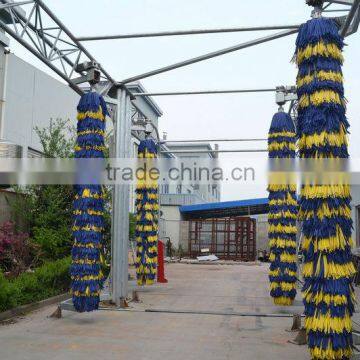

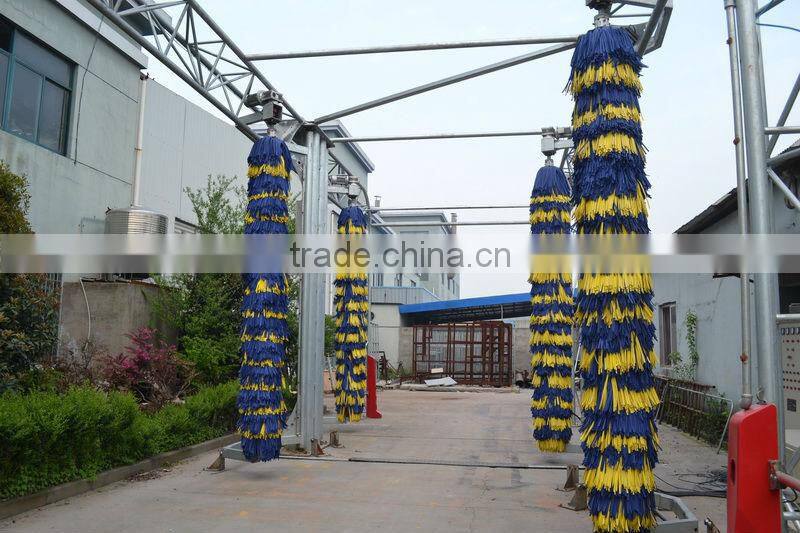

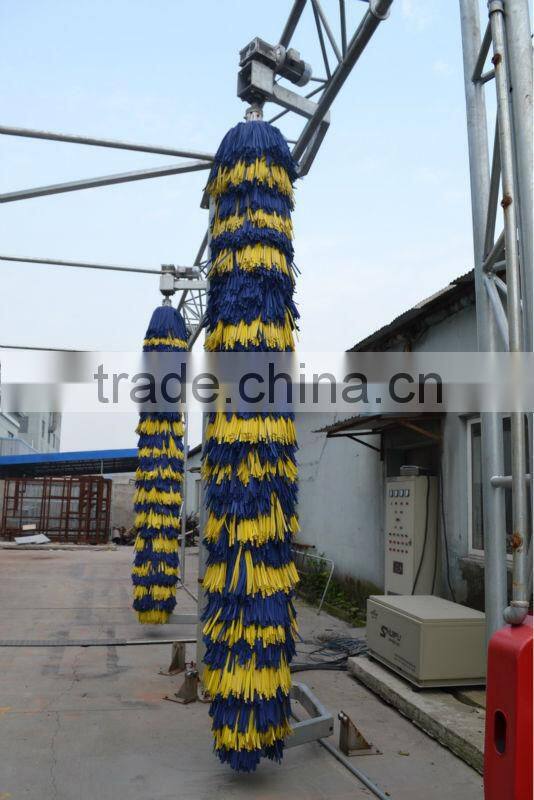

High quality brush
Imported brush can wash 400000Cars. Brush bar is made by high quality alloy section bar with features high strength, no distort and no deformation.
High pressure spray nozzle
Spray nozzle is made by forged alloy, no rust and good performance under high pressure.
The angle of spray nozzle is adjustable according to the car.
PLC
Delta brand PLC can adopt bad operating environment, strong anti-interference ability, high reliability and high system stability.
Motor
IP76 high waterproof motor, low noise, low failure rate and long life span.
Pneumatic Components
AIRTAC brand pneumatic components make sure that air circuit is in good condition.
Induction System
Photoelectric sensor and approach switch uses Japan Omron brand with features of high precision, fast response and non-contact.
Protection System
Relay, AC contactor uses Schneider brand. The machine is equipped with earth leakage protection.

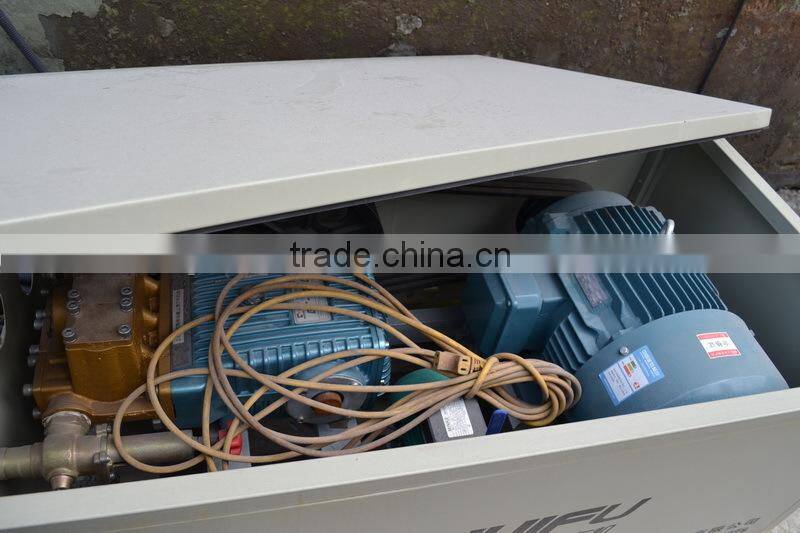

High Pressue Water Pump for Chassis Washing
