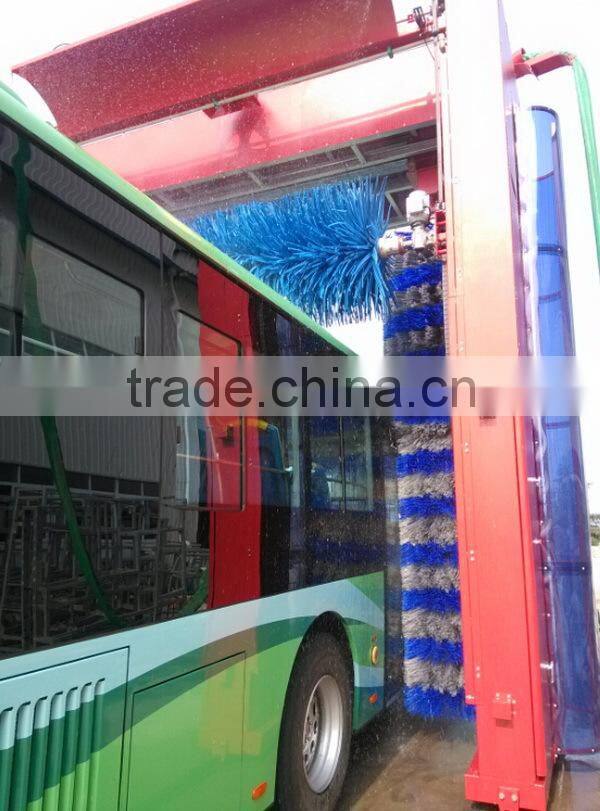

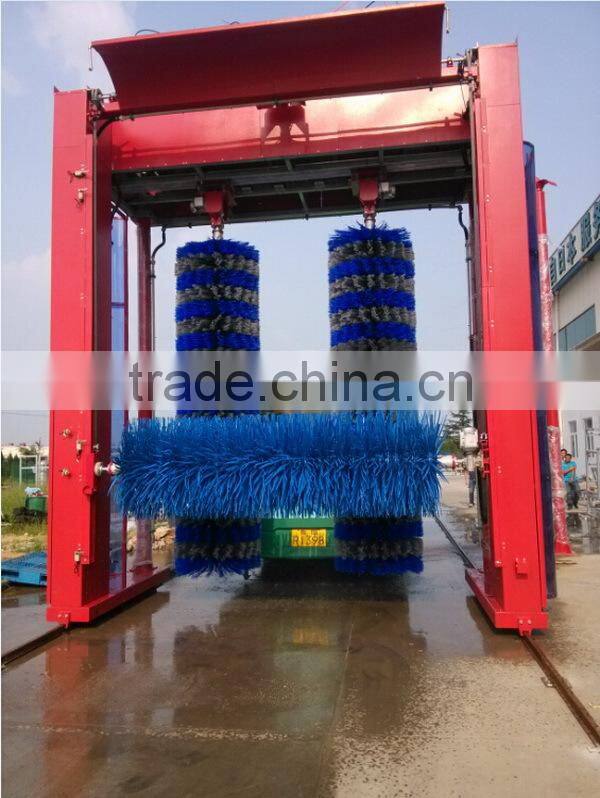

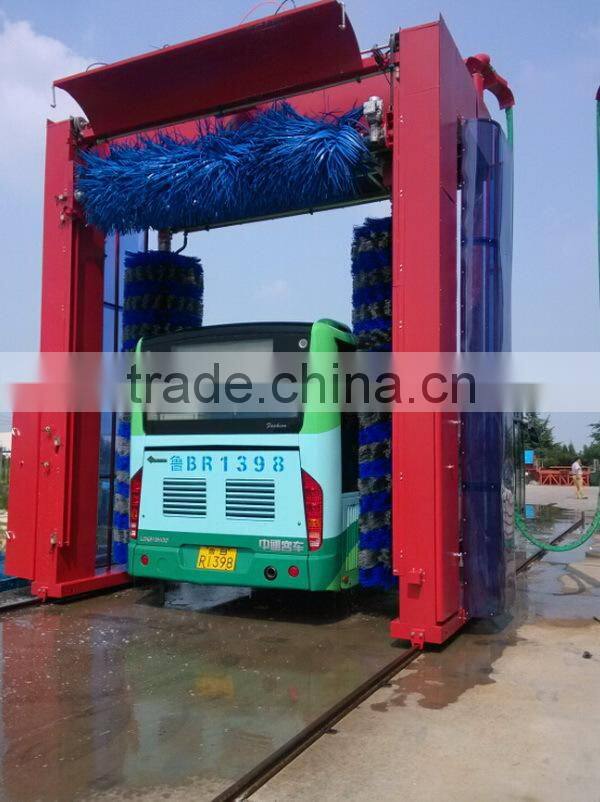

lavado de autobuses
Bus Wash System |

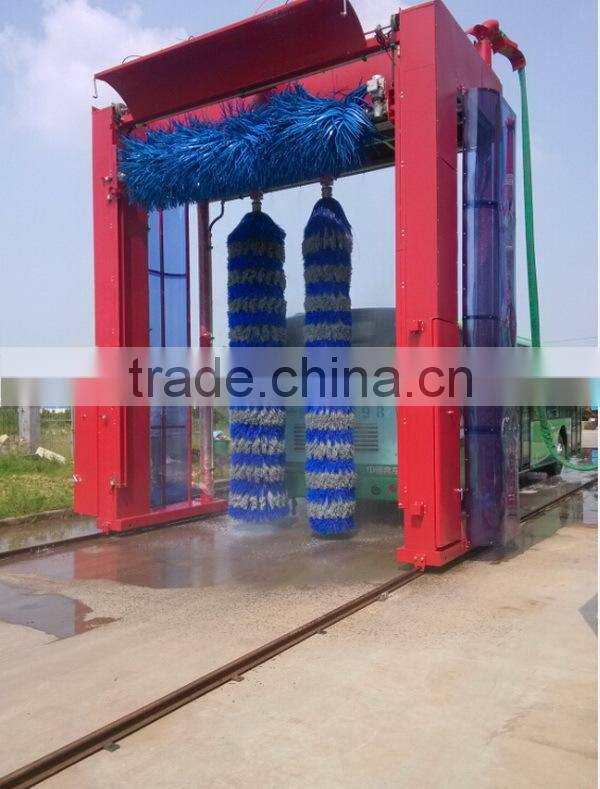

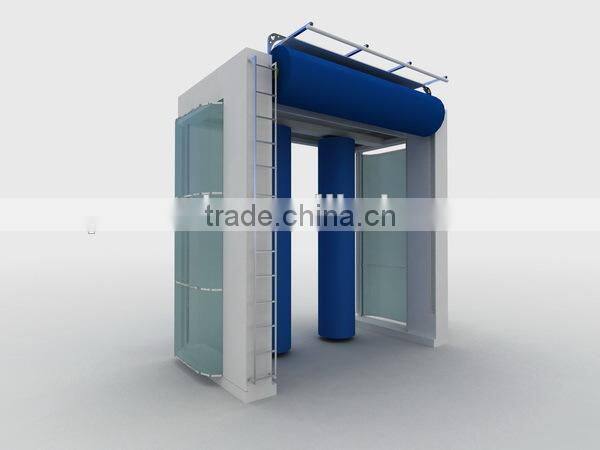

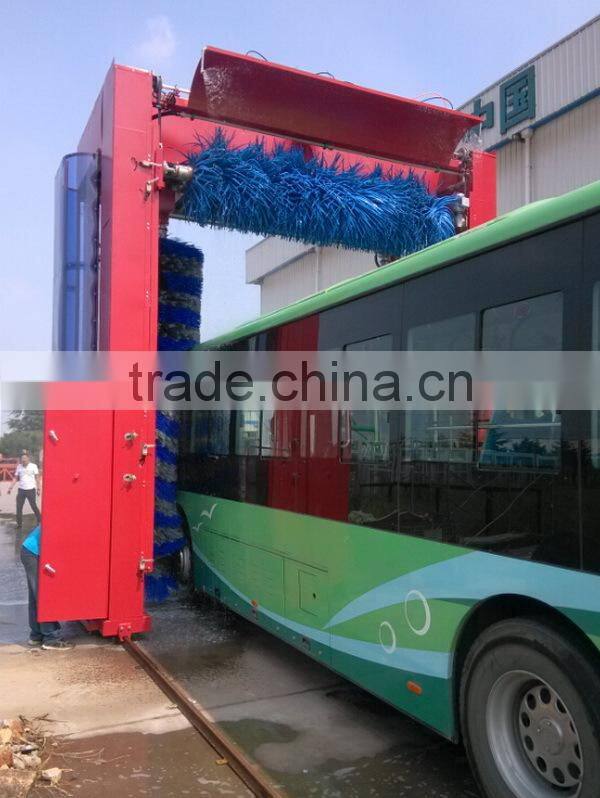

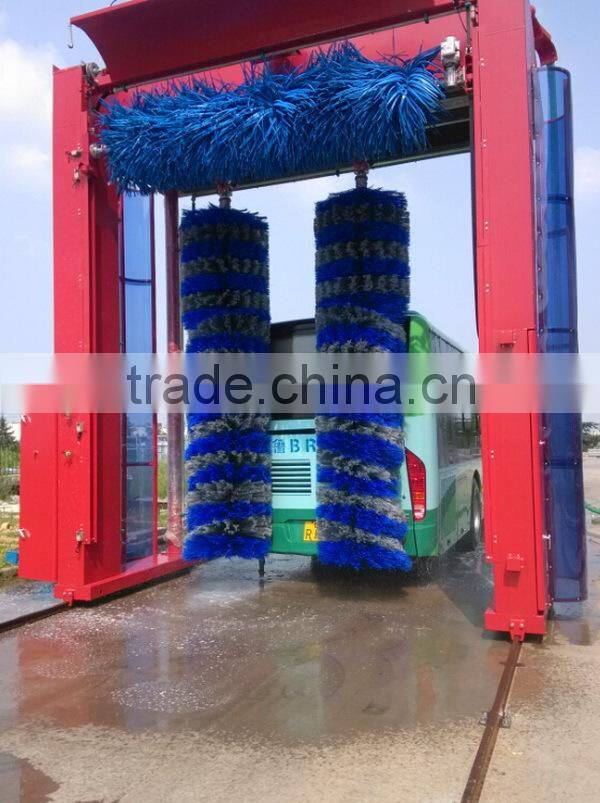

Fully Automatic Rollover Bus Wash Machine |
Model |
PE-730H |
Machine Size |
L41100mm×W6214mm×H5600mm |
Track size |
L=32000mm |
Total machine power |
8.86kw |
Size Brush O/P Motor |
0.37kw×2 |
Side brush motor |
0.75kw×2 |
Top brush motor |
0.75kw |
Top brush lifting motor |
0.55kw |
Driving motor |
0.66kw×2 |
Pump motor |
4.0kw |
Top electric capacity |
8.86kw |
Washing models |
Bus/Double-decker bus |
Washing size |
L26000mm×W2600mm×H4600mm |
Normal wash car ways |
three brush half rollover/three brush one rollover/two brush half rollover |
Wash time |
8-10trucks/h |
Usage cost |
Calculate according to local water and electricity prices |
Water consumption |
250L/car |
Electricity consumption |
0.59kwh/car |
Shampoo consumption |
25ml/car |
Installation range |
L21000mm×W5200mm,bothsides should keep checking passageway |
Move range |
L32000mm×W6200mm |
Power supply |
three-phase AC380V/220v,50Hz/60Hz or customized voltage |
Water supply |
Pipe diameterDN25 flow rate≥120L/min |
Other requirement |
Ground roughness≤10mm |
Frame |
Galvanizing by dipping |
Brush material |
Aluminum alloy brush pipe,The integral type nylon Brush |
Side brush motor |
SITI (Itlia) |
Top brush motor |
SITI (Itlia) |
Driving motor |
Thunis |
Water pump |
CNP |
Warranty |
1 year limited warranty |
List of parts | ||
Standard Parts |
Quantity |
Remark |
Shampoo sprinkling system |
1 set |
-- |
High pressure water device |
1set |
optional |
Vehicle bottom wash |
1 set |
optional |
High pressure water gun |
1 set |
optional |
Intelligent equipment data |
-- |
available |
Fault self-detection |
-- |
available |
Frame |
1 set |
hot-dip galvanized |
Electronic control system |
1 set |
MK cabinet |
Wearproof walking system |
4 set |
-- |
Voice prompt function |
-- |
Without |
Foam brush |
3 set |
-- |
Photoelectric sensor |
-- |
-- |
Approaching sensor |
-- |
-- |
Walking reduction gears |
-- |
-- |
Side brush motor |
-- |
ITALY SITI |
Top brush motor |
-- |
ITALY SITI |
Walking reduction gears |
-- |
China |
Water pump |
-- |
China |
Machine Features
1. Can identify the bus model with photoelectric sensor controlled by PLC.
2. ZAM alloy or hot-dip galvanized frame keep the machine long life use.
3. Inclinable side brush strengthens cleaning ability around the car.
4. The dovetail foam brush makes the car washing more quiet and clean.
5. High quality motor on top brush from Italy with light weight.
6. The high sensor on the top brush can keep the bus from damage.
7. High quality explosion proof reduction motor can work well in any conditions.
8. Fully automatic and easy to operate, high efficiency and energy conservation.
9. With on-site installation for free and long time quality guarantee
