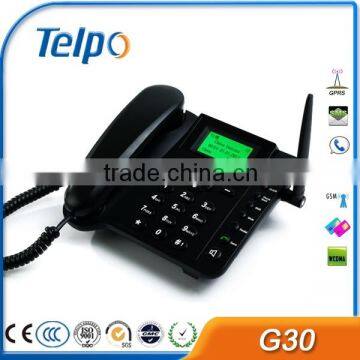

Telpo 3g telephone gsm fwp desk telephone

FOB Price

USD $1 - $30 / Piece

1 Piece(Min.Order)

Supply Ability 200000 Piece / Pieces per Month
Port FOSHANG CHINA
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Telepower
Model Number	HA6966TI%28LCD%29-G30%28D%29 / wireless gsm desktop phone	Type	GSM
Port Number	2	Working Frequency	GSM850/900/1800/1900MHZ

Product Description

Specifications

1.Choice ring sounds
2.Two Way SMS, Voice Mail and caller ID
3. 850/900/1800/1900MHz
4.wcdma

Product Description

3g telephone gsm fwp desk telephone

Telpo wireless gsm desktop phone / GSM Fixed wireless phone (FWP China Manufacturer)

1. GSM Fixed Wireless Phone / GSM FWP
2. Choice ring sounds, Power On/Off
3. Two Way SMS, Voice Mail and caller ID Speaker

4. FWP Manufacturer

5. More than 500K units sold for Mobile Operator's bid.

6. Ideal Product / competitive for bids

7. GSM FWP bids.

Specifications

Hardware/Software/Mechanical	CPU	SIM540 or SIM800
	Memory	128M in the GSM module, more than 200 SMS can be saved, sent or received .

	Display	128*64 pixels
	Keyboard	26 keys
	Battery	Battery type: Ni-MH 1200 mAh Standby time: 100 hours Talk time: 150-180 minutes
	Developing environment	OS of SIM340 for design
	Dimensions	215x185x75mm
	Weight	≈0.7kg
Power supply	AC input voltage	AC 90~240 V
Power supply	Power adaptor output	DC 4.6V /1.2A
Application environment	Operating temperature	–10°C~60°C
	Relative humidity	5%~95%
	Data Service	Optional,IS-99,IS-707, Up to 153Kbps
	Connectors	Antenna (Fixed or TNC type), USB port
	Frequency bands	Single band,CDMS 450 / 800 / 1900MHz
	Receiving sensitivity	< –100dBm
Transmitter Specification	Operating Frequency	824MHz ~ 849MHz (Cellular Band)
	RF Output Power	Maximum 0.2W,Minimum 10nW (-50dBm)
	Frequency Stability	/- 300Hz
	Open Loop Power	RX= -25dBm TX = -57.5 ~ -38.5dBm
	Control output Power	RX= -65dBm TX = -17.5 ~ -1.5dBm
	Control output Power	RX= -93.5dBm TX = 10.5 ~ 29.5dBm
	Spurious Emission	-42dBc/30kHz (885k
		-54dBc/30kHz (1.98M
		-13dBm/1MHz (4.0M
Receiver Specification	Operating Frequency	869MHz ~ 894MHz (Cellular Band)
	Receiver Sensitivity	-104dBm @FER 0.5%, -101dBm @ FER 1%
	Single Tone Desensitization	(FC /-900KHz @–30dBm)
	IMD	(FC /-900KHz, FC /-1700KHz @–43dBm)
		-90dBm @ FER 1%
		(FC /-900KHz, FC /-1700KHz @–32dBm)
		-79dBm @ FER 1%
		(FC /-900KHz, FC /-1700KHz @–21dBm)
	Conducted Spurious Emission	RX band -76dBm @1MHz RBW
	Conducted Spurious Emission	TX band -61dBm @1MHz RBW
	Other Frequencies	-47dBm @30KHz RBW

Packaging & Shipping

Our Services

1) Trade Terms: FOB, FCA, EXW, CIF

2) Payment Terms: T/T, Western union, LC

3) Payment Condition: 30% deposit in advance, 70% balance before delivery

4) Delivery time: Sample-Within 2 to 3 days after payment, Batch order up to order quantity

5) Packing: Neutral Carton

6) Shipping: By sea, by air and by express delivery

7)We provide 1 year warranty for main device as well as 24 hours online service to help you out.

Company Information

FAQ

Q1. How to check the software version

A: Turn on the device, it will show the software version number on the screen during startup.

Q2. How to enter factory test mode

A: (1) For some old version, when the device is under standby state, click keys *#55#, it will enter factory test mode

(2) For new version, after press power on key, when the device is in startup, click the key “Cancel”.

It will show “Factory Mode”, then input keys *#55#, and click key “Menu”, then it will enter factory test mode.

In factory test mode, you can test lots of hardware function such as test printing, test keypad, test LCD, test GPRS connection, test SMS and so on.

Q3. Can not Turn On

A: Check the power adapter, or try to change another workable power adapter.

Check the battery, or try to change another normal battery.

Remove the battery, and only connect the power adapter. Or only use battery, and do not connect power adapter to test it. Then check the Power Supply Circuit and switch on/off the circuit according the test result.

If the circuit has no problem, and it still can not turn on, please try to discharge.

Q4. Can not detect the SIM CARD

A: Please check whether the SIM card is installed well.

Install the SIM CARD again.

Change another SIM card

Scrape the surface of the metal spring in the SIM CARD slot with knife.

Check whether all the weld point of the SIM CARD slot is welded well or not.. If not, please weld it again.

Replace the part of the SIM CARD slot.

Q5. Can not detect wireless signal

A: Please check whether it has GSM wireless signal in this place. If it has no GSM wireless signal or the signal is very weak, please try to test the terminal in another place with good GSMwireless signal.

Otherwise, please open the shell of the device, and check if the antenna is connected well.
