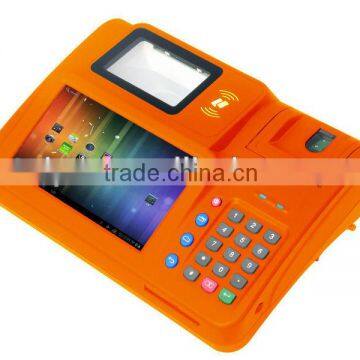

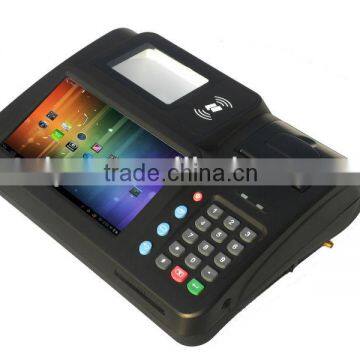

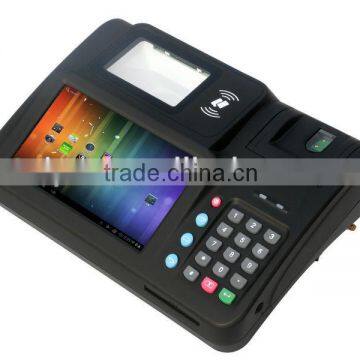

TPS550 Top Up Android POS Terminal

Processor

A9

Memory

1GB RAM, 8GB FLASH, Ext. TF(micro SD) card

OS

Android 4.3

Display

7", TFT 800*480

Keypad

12 alphanumeric keys, 7 function keys

Battery

Lithium Polymer rechargeable battery
7.4V, 2200mA, Li-ion.

7.4V, 2500mA, Li-ion(Optional)

Power Supply

Input:100-240VAC, 50Hz/60Hz,1.0A;output:12VDC, 2A

Dimensions(mm)

290(L)×219(W)×85(H)

Weight

1500g

Certification

CE

Magnetic card reader, Track 1/2/3, bi-directional swipe, ISO7810, ISO7811, ISO7812

(Optional)

Smart card reader, ISO 7816

(Optional)

Contactless card reader,
ISO14443 Type A/B, Mifare®

(Optional)

SAM Slots: 2 SAM Slots, ISO7816

(Optional)

SIM Slots

1

2(Optional)

Communications

GPRS & Ethernet
WiFi/3G/4G/CDMA1x/Dail-Up(Optional)

Peripheral Ports

2 USB Host, 1 mini USB(OTG) , 1 RJ45

 RJ11,  PS2, DB9(Optional)

Buzzer single tone beeper

Support

Digital Audiosynthesizer with built-in speaker

Support

Built-in Fingerprint Module

(Optional)

Built-in Camera (5 MP, Barcode reader 1D/2D)

(Optional)

Certificate camera(5MP, Take photo for person)

(Optional)

Printer

Thermal graphic printer

Speed

18 lines/sec

Print paper width

58mm

Working Environment:

Temperature:0°C~50°C; R.H.:  10%~90% (non-condensing)

Storage Environment:

Temperature:-20°C~70°C;  R.H.:  5%~95% (non-condensing)

Q1. How to turn on

 A: Press the power on key for 3 seconds to turn on the POS.

Q2. How to turn off

 A: If the POS is on, press the power on key for about 3 seconds to turn off the POS.

Q3. How to check the hardware version

  A: Open the back cover of the device. Remove the battery, it printed the hardware version on the PCD board beside the SIM card slot such as V2.1, V2.2,V2.3, V2.4.

Q4. How to check the software version

  A: Turn on the device, it will show the software version on the screen when startup.

Q5. How to enter into factory test mode

  A: (1) For some old version, when the device is in standby state, press keys *#55#, it will enter into factory test mode

      (2) For new version, after press power on key, when the device is in startup, press the key “Cancel”. It

      will show “Factory Mode”, then input keys *#55#, and press key “Menu”, then it will enter into factory test mode.

      In factory test mode, you can test many base hardware function such as test print, test keypad, test LCD, test GPRS connection, test SMS and so on.

Q6. Can not Turn On

  A: Check the power adapter, or try to change another normal power adapter.

      Check the battery, or try to change another normal battery.

      Try to remove the battery, and only connect the power adapter. Or only use battery, and do not connect power adapter to test it. Then check the Power supply Circuit and switch on/Off

      circuit according the test result.

      If the circuit has not any problem, and it still can not turn on, please try to discharge.

Q7. Can not detect the SIM CARD

  A: Please check whether the SIM card is installed well.

      Install the SIM CARD again.

      Change another SIM card

      Scrape the surface of the metal spring in the SIM CARD slot with knife.

      Check whether all the weld point of the SIM CARD slot is welded well or not. If not, please weld it again.

      Replace the part of the SIM CARD slot.

Q8. Can not detect wireless signal

  A: Please check whether it has GSM wireless signal in this place. If it has not GSM wireless signal or the signal is very lower, please try to test the terminal in another place with good GSM

      wireless signal.Otherwise, please open the shell of the device, and check if the antenna is connected well or not.
