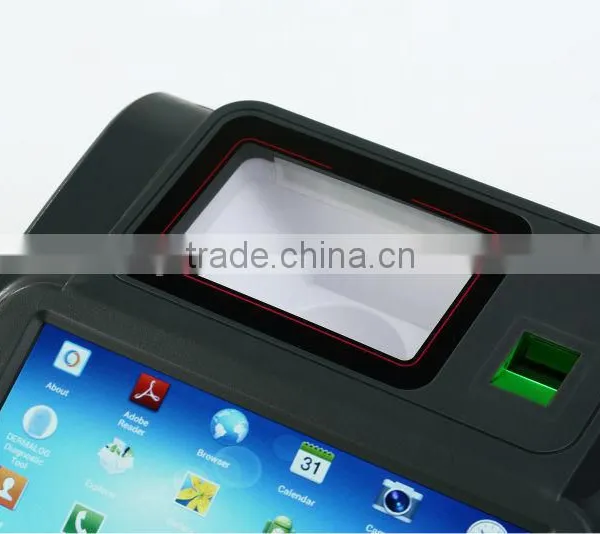

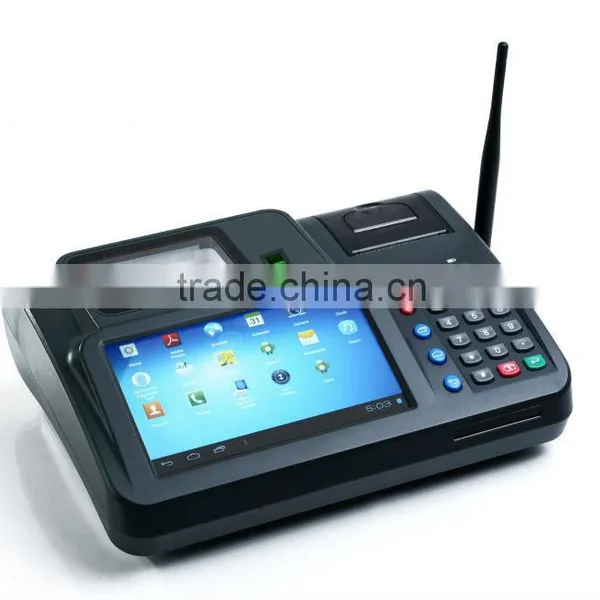

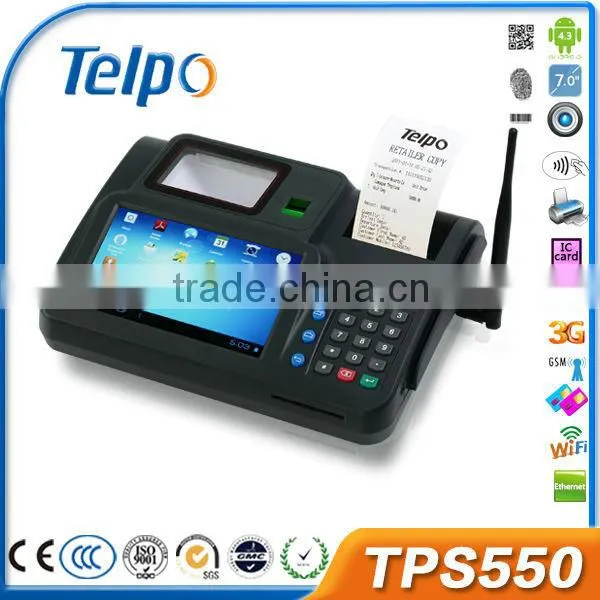

Help Center2014 Telpo TPS550 Android Pos Termianl Machine With Thermal Printer/ Camera, 2D Barcode Scanner, FingerPrint Scanner
Related Products
-
Telpo TPS550 Barcode Android Pos Terminal With Camera, 1D/2D Barcode Scanner, Finger Print ScannerUS$ 1 - 300MOQ: 200 Units -
Telpo TPS550 Thermal Printer Android With Camera, 1D/2D Barcode Scanner, Finger Print ScannerUS$ 1 - 300MOQ: 100 Units
-
Telpo GSM TPS550 Android POS Terminal With 7 Inch Color Trouch ScreenUS$ 1 - 300MOQ: 100 Units
-
***Telpo TPS550 Android POS Terminal With Camera, 1D/2D Barcode Scanner, Finger Print ScannerUS$ 1 - 300MOQ: 200 Units
-
TPS550 Top Up Android POS TerminalUS$ 1 - 300MOQ: 1 Unit
Specifications
android pos terminal machine with printer1.airtime, top up
2.Electronic Voucher Distribution
3. Barcode Scanner, Fingerprin
Telpo gprs/3G/wifi android pos with fingerprint scanner, barcode reader, thermal printer, card reader, camera TPS550
1. Registration: Biometric Verification of SIMs/Vistors Registration/Voting
2. Prepaid Airtime: Electoronic prepaid card/PIN-LESS Top-up/Calling card
3. Bill payment: Electricity/Water/Gas/DTH/TV Recharges/Internet/Broadband/Insurance/Charity
4. E-ticketing: Railway/Ait/Bus/Movie
5. Money Transfer: Deposit/Withdrawal/Remittance
6. Loyalty Program: Loyalty card/Rewards card/Points card/Advantage card/Club card
7. Lottery: Lotto game/Bingo game/Casino game/
8. O2O Shipping
Specification
| Processor | A9, CPU1.2GHz |
| Memory | 1GB RAM, 8GB FLASH, Ext. TF(micro SD) card |
| OS | Android 4.2 |
| Display | 7’, TFT 800*480 |
| TFT1024*600(Optional) | |
| Keypad | 12 alphanumeric keys, 7 function keys |
| Battery | Lithium Polymer rechargeable battery |
| 7.4V, 2200mA, Li-ion. | |
| 7.4V, 2500mA, Li-ion(Optional) | |
| Power Supply | Input:100-240VAC, 50Hz/60Hz,1.0A;output:12VDC, 2A |
| Dimensions(mm) | 290(L)×219(W)×85(H) |
| Weight | 1500g |
| Certification | CE |

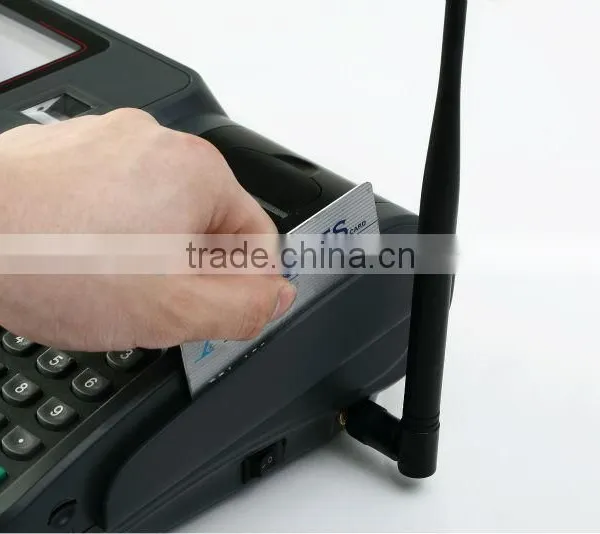

| Card Reader | Magnetic card reader, Track 1/2/3, bi-directional swipe, ISO7810, ISO7811, ISO7812(Optional) |

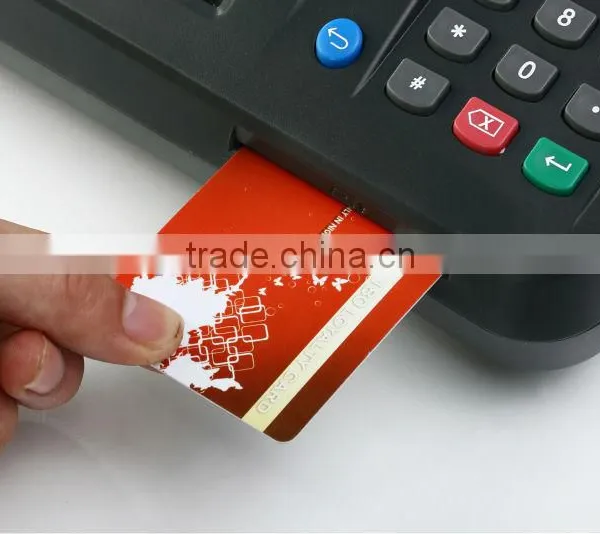

| Smart card reader, ISO 7816(Optional) | |
| Contactless card reader, ISO14443 Type A/B, Mifare®(Optional) | |
| SAM Slots: 2 SAM Slots, ISO7816 | (Optional) |
| SIM Slots | Single SIM |
| Dual SIM(Optional) | |
| Communications | GPRS/ Ethernet |
| WiFi/3G/4G/CDMA1x/Dial-Up(Optional) | |
| Peripheral Ports | 2 USB Host, 1 mini USB(OTG) , 1 RJ45 |
| Optional: RJ11, PS2, DB9(Optional) | |
| Buzzer single tone beeper | Support |
| Digital Audiosynthesizer with built-in speaker | Support |
| Built-in Fingerprint Module | (Optional) |
| Built-in Camera (5 MP, Barcode reader 1D/2D) | (Optional) |
| Certificate camera(5MP, Take certificate photo for person) | (Optional) |
| Printer | Thermal graphic printer |
| Speed | 18 lines/sec |
| Print paper width | 58mm |
| Working Environment: | Temperature:0°C~50°C; R.H.: 10%~90% (non-condensing) |
| Storage Environment: | Temperature:-20°C~70°C; R.H.: 5%~95% (non-condensing) |
1) Trade Terms: FOB, FCA, EXW, CIF, CNF
2) Payment Terms: T/T, Western union, LC
3) Payment Condition: 30% deposit in advance, 70% balance before delivery
4) Delivery time: Sample-Within 2 to 3 days after payment
Batch order up to order quantity
5) Packing: Neutral Carton
6) Shipping: By sea, by air and by express delivery
7) We provide 1 year warranty for main device as well as 24 hours online service to help you out.
Q1. How to check the software version
A: Turn on the device, it will show the software version number on the screen during startup.
Q2. How to enter factory test mode
A: (1) For some old version, when the device is under standby state, click keys Telpo hot sale Magnetic Lotto POS terminal android pos terminal TPS550, it will enter factory test mode
(2) For new version, after press power on key, when the device is in startup, click the key “Cancel”.
It will show “Factory Mode”, then input keys Telpo hot sale Magnetic Lotto POS terminal android pos terminal TPS550, and click key “Menu”, then it will enter factory test mode.
In factory test mode, you can test lots of hardware function such as test printing, test keypad, test LCD, test GPRS connection, test SMS and so on.
Q3. Can not Turn On
A: Check the power adapter, or try to change another workable power adapter.
Check the battery, or try to change another normal battery.
Remove the battery, and only connect the power adapter. Or only use battery, and do not connect power adapter to test it. Then check the Power Supply Circuit and switch on/off the circuit according the test result.
If the circuit has no problem, and it still can not turn on, please try to discharge.
Q4. Can not detect the SIM CARD
A: Please check whether the SIM card is installed well.
Install the SIM CARD again.
Change another SIM card
Scrape the surface of the metal spring in the SIM CARD slot with knife.
Check whether all the weld point of the SIM CARD slot is welded well or not.. If not, please weld it again.
Replace the part of the SIM CARD slot.
Q5. Can not detect wireless signal
A: Please check whether it has GSM wireless signal in this place. If it has no GSM wireless signal or the signal is very weak, please try to test the terminal in another place with good GSM wireless signal.
Otherwise, please open the shell of the device, and check if the antenna is connected well.
Q6. Print unconventionality
A: If it can’t print, or has other print problem, please check the problem device according to following steps:
(1). Open the shell of the POS.
(2). Clean the printer header with ethanol.
(3). Check the connector cable
(4). Disconnect the cable, and clean the connector of the cable
(5). Reinstall, and test it again.
Q7. Print blurred
A: If it prints out blurry receipt, please do following steps.
(1). Clean the print header
Maybe it has some carbon accumulation on the print header.
(2). Check whether the print header installed well or not
Open the cover of the POS. Dismantle the print header.
There are two spring button on the print header.
Q8. Not feed paper
A: The POS does not feed paper during printing. But it can print out the receipt if you pull out the paper while printing.
(1). Check whether the paper installed well or not.
(2). Check the wheel of the roller
Check the wheel. If the gear wheel becomes bad or broken, please replace the roller.
(3). Check the wheel of the print header
Check the wheel. Is there anything block the wheel running? If yes, please clean it.
If the gear wheel becomes bad or broken, please replace print header.
(4). Test print without paper
Do not install paper, blot out the light sensor for pretending it from installing paper. Then try to print, check whether the wheel can run or not. If the wheel does not run, try to replace print PCB board, or try to replace the print head.
Q9. LCD screen problem
A: If the LCD screen shows abnormally, please check the problem according to following steps:
(1). Open the shell of the POS.
(2). Check the connector cable
Disconnect the LCD cable, and clean the connector surface of the LCD cable with absolute alcohol.
(3). Reinstall, and test it again.
To view more information, pls gp to
