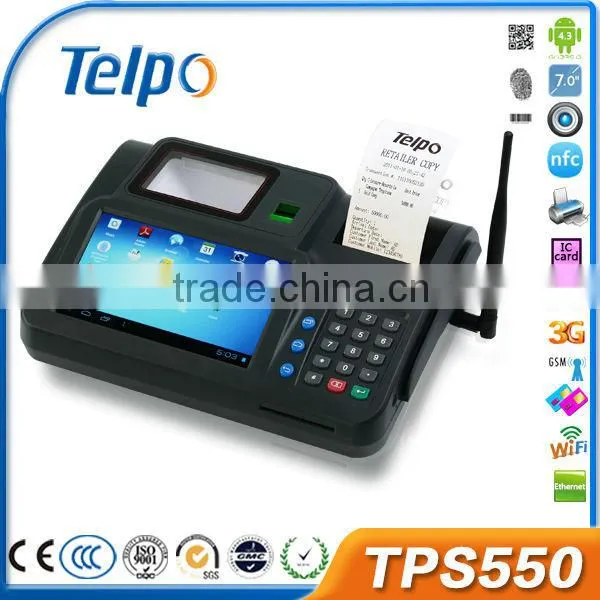

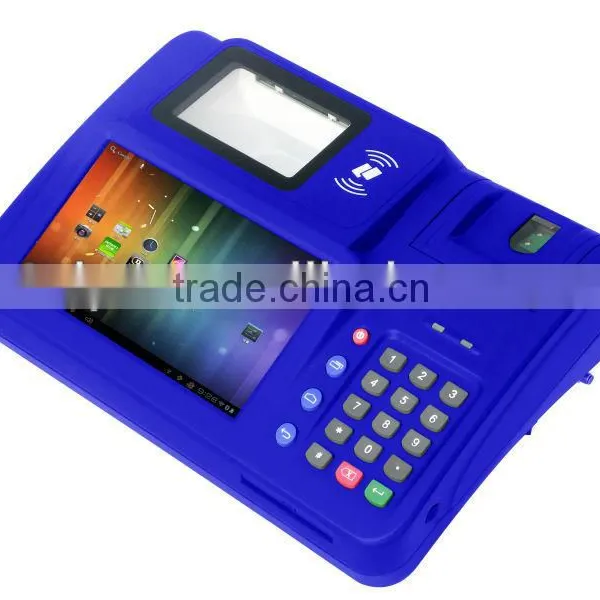

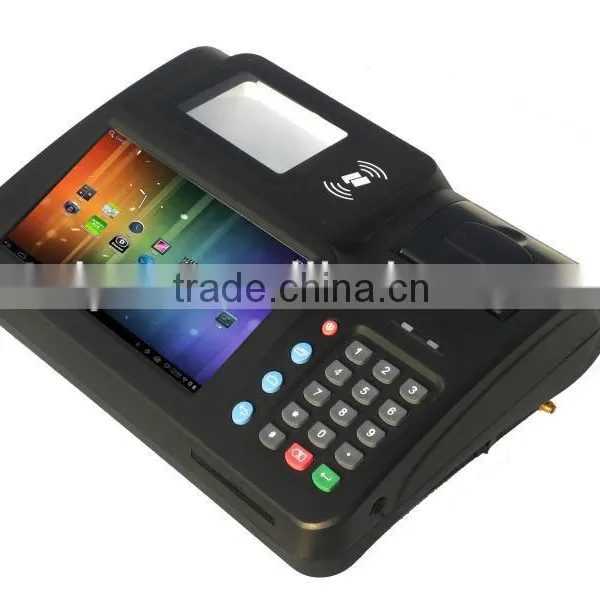

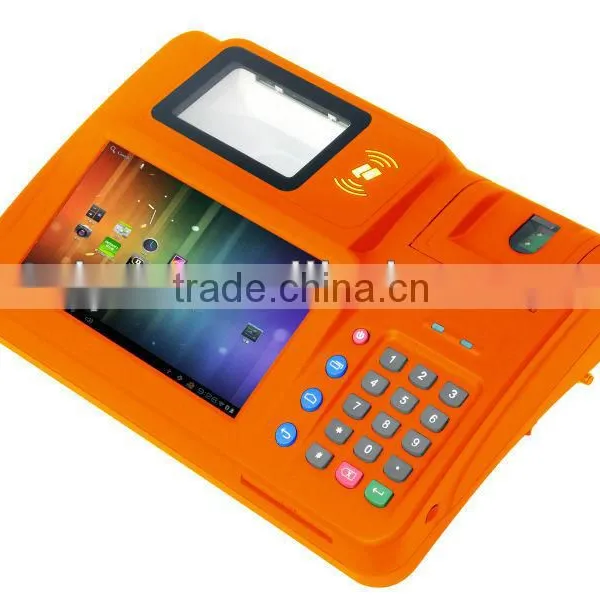

Help CenterTelpo TPS550 Wireless 7' Android Rfid Barcode Reader/finger Printer/card Reader/bluetooth Pos Terminal
Related Products
-
Telpo TPS550 Android Thermal Printer for Airtime Top Up, Utilities, Loyalty ProgramsUS$ 1 - 300MOQ: 100 Units -
Telpo TPS550 Android Thermal Printer POS Printer With Camera, 1D/2D Barcode Scanner, Finger Print ScannerUS$ 1 - 300MOQ: 200 Units
-
2014 Telpo TPS550 Android Pos Termianl Machine With Thermal Printer/ Camera, 2D Barcode Scanner, FingerPrint ScannerUS$ 1 - 300MOQ: 200 Units
-
Telpo TPS550 Barcode Android Pos Terminal With Camera, 1D/2D Barcode Scanner, Finger Print ScannerUS$ 1 - 300MOQ: 200 Units
-
Telpo TPS550 Thermal Printer Android With Camera, 1D/2D Barcode Scanner, Finger Print ScannerUS$ 1 - 300MOQ: 100 Units
Specifications
Android POS Terminal1. nfc,rfid,smart card, magenetic card
2. gprs,wcdma,wifi,etherent
3. Barcode Scanner, Finger print
Telpo TPS550 with camera, 1D/2D Barcode Scanner, Finger Print Scanner, printer android pos 3g/wifi/wcdma/nfc/gors/wirless android pos device for gas station android pos
Application:
1. Registration: Biometric Verification of SIMs/Vistors Registration/Voting android pos
2. Prepaid Airtime: Electoronic prepaid card/PIN-LESS Top-up/Calling card
3. Bill payment: Electricity/Water/Gas/DTH/TV Recharges/Internet/Broadband/Insurance/Charity adroid pos
4. E-ticketing: Railway/Ait/Bus/Movie
5. Money Transfer: Deposit/Withdrawal/Remittance
6. Loyalty Program: Loyalty card/Rewards card/Points card/Advantage card/Club card android pos
7. Lottery: Lotto game/Bingo game/Casino game/
8. O2O Shipping
Processor |
A9, CPU1.2GHz android pos |
Memory |
1GB RAM, 8GB FLASH, Ext. TF(micro SD) card andr android pos oid pos |
OS |
Android 4.2 |
Display |
7’, TFT 800*480 android pos TFT1024*600(Optional) |
Keypad |
12 alphanumeric keys, 7 function keys android pos |
Battery |
Lithium Polymer rechargeable battery android pos 7.4V, 2500mA, Li-ion(Optional) android pos |
Power Supply |
Input:100-240VAC, 50Hz/60Hz,1.0A;output:12VDC, 2A |
Dimensions(mm) |
290(L)×219(W)×85(H) android pos |
Weight |
1500g android pos |
Certification |
CE |
Card Reader |
Magnetic card reader, Track 1/2/3, bi-directional swipe, ISO7810, ISO7811, ISO7812(Optional) |
Smart card reader, ISO 7816(Optional) android pos | |
Contactless card reader, ISO14443 Type A/B, Mifare®(Optional) | |
SAM Slots: 2 SAM Slots, ISO7816 |
(Optional) |
SIM Slots |
Single SIM Dual SIM(Optional) android pos |
Communications |
GPRS/ Ethernet |
Peripheral Ports |
2 USB Host, 1 mini USB(OTG) , 1 RJ45 Optional: RJ11, PS2, DB9(Optional) android pos |
Buzzer single tone beeper |
Support |
Digital Audiosynthesizer with built-in speaker |
Support android pos |
Built-in Fingerprint Module |
(Optional) |
Built-in Camera (5 MP, Barcode reader 1D/2D) |
(Optional) android pos |
Certificate camera(5MP, Take certificate photo for person) |
(Optional) android pos |
Printer |
Thermal graphic printer android pos |
Speed |
18 lines/sec android pos |
Print paper width |
58mm android pos |
Working Environment: |
Temperature:0°C~50°C; R.H.: 10%~90% (non-condensing) |
Storage Environment: |
Temperature:-20°C~70°C; R.H.: 5%~95% (non-condensing) |
1) Trade Terms: FOB, FCA, EXW, CIF, CNF android pos
2) Payment Terms: T/T, Western union, LC
3) Payment Condition: 30% deposit in advance, 70% balance before delivery
4) Delivery time: Sample-Within 2 to 3 days after payment, Batch order up to order quantity
5) Packing: Neutral Carton
6) Shipping: By sea, by air and by express delivery
7)We provide 1 year warranty for main device as well as 24 hours online service to help you out.
Q1. How to check the software version |
|
|||||||
A: Turn on the device, it will show the software version number on the screen during startup. |
|
|||||||
Q2. How to enter factory test mode |
|
|||||||
A: (1) For some old version, when the device is under standby state, click keys *#55#, it will enter factory test mode |
|
|||||||
(2) For new version, after press power on key, when the device is in startup, click the key “Cancel”. |
|
|||||||
It will show “Factory Mode”, then input keys *#55#, and click key “Menu”, then it will enter factory test mode. |
|
|||||||
In factory test mode, you can test lots of hardware function such as test printing, test keypad, test LCD, test GPRS connection, test SMS and so on. |
|
|||||||
Q3. Can not Turn On |
|
|||||||
A: Check the power adapter, or try to change another workable power adapter. |
|
|||||||
Check the battery, or try to change another normal battery. |
|
|||||||
Remove the battery, and only connect the power adapter. Or only use battery, and do not connect power adapter to test it. Then check the Power Supply Circuit and switch on/off the circuit according the test result. |
|
|||||||
If the circuit has no problem, and it still can not turn on, please try to discharge. |
|
|||||||
Q4. Can not detect the SIM CARD |
|
|||||||
A: Please check whether the SIM card is installed well. |
|
|||||||
Install the SIM CARD again. |
|
|||||||
Change another SIM card |
|
|||||||
Scrape the surface of the metal spring in the SIM CARD slot with knife. |
|
|||||||
Check whether all the weld point of the SIM CARD slot is welded well or not.. If not, please weld it again. |
|
|||||||
Replace the part of the SIM CARD slot. |
|
|||||||
