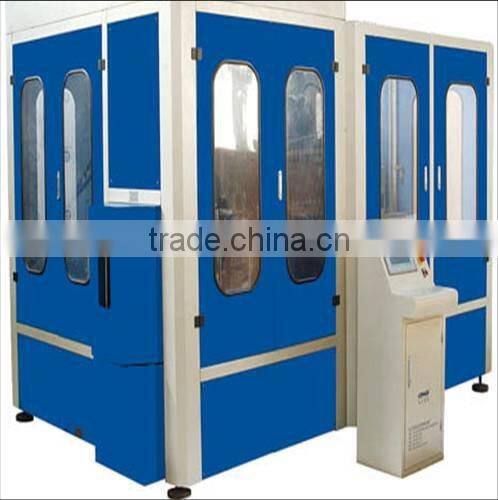

Help CenterStable Fully Automatic Pet Stretch Blow Molding Machine.
Related Products
Blow Molding Machine
pesticide bottle oil bottle cosmetics.stable fully automatic pet stretch blow molding machineCM-G4, 6,8,10 is the most stable fully automatic pet stretch blow molding machine. The capacity of the products range from 0.6L to 1.5L. It can blow pet bottles for different use: pure water and soda water, soft drinks, fruit juices, tea, energy water, milk and dairy products, beer, oil and sauce, and other drink packing containers, which is made of plastic of crystalline type, such as PET etc.CM-G series rotary machine adopted original heating and blowing technique, by which the automatic blowing machine series have achieved in powerful productivity but very reasonable price.A. Advantages of rotary automatic blow molding machine1. High productivity: 1400pcs/cavity/hour2. High eligible rate: above 99.5%.3. Power saving: heater is fixed with link of short section (pitch 43.8mm), which assures to heat more performs with the same heating length. In this way, it saves electricity of 25%.4. Adopting SIMENS electric controlling system with high precision and fast speed.Stable function: blowing system adopts Germany valve and cylinder, which has stable and accurate stretching speed and good product consistency.5. Mold fixing structure assures fast mold fixing speed and fast mold changing speed.6. Automatic plastic loader and automatic recovery device. B. Advanced processing equipment:Machine center, CNC lathe, EDM, such as many imported United States and Japan machine tools assure processing precision and good interchangeable function.
|
CM-A6 Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle,mineral water, pesticide bottle oil bottle cosmetics.
| ||
Main part: | ||
Pneumatic part |
Valve |
SMC |
Cylinder | ||
Electric part |
PLC |
LG Mitsubishi |
Operating system |
LG /HITECH |
|
Relay |
OMRON |
|
Infrared thermometer |
America raytek |
|
Note |
All of the electrical components adopts CE,UL,CCC approved international advanced high-tech product.
|
|
Main parameter: | ||
Model |
CM-A6 |
|
Productivity |
Depend on bottle design |
4500-5500PCS/H |
Product type |
Body diameter |
20mm-100mm |
Height |
50mm-350mm |
|
Neck diameter |
15mm-38mm |
|
Mold |
Cavity |
6cavities |
Mold thick |
240mm |
|
Mold volume |
240*320*760mm |
|
Main machine power |
Electrical source power |
380v 3Phase /220v 3Phase 50/60HZ |
Rated Power |
65kw |
|
Really use power |
18kw |
|
Air source |
LP air compressor |
2.0m3/min 1.0MPa 1set |
HP air compressor |
3.2m3/min 3.0MPa 2sets 1set |
|
Air dryer |
3.0m3/min 3.0MPa 1set |
|
Cooling water |
Cooling water |
5HP |
Size |
L*W*H |
2000*3200*1800mm |
Weight |
5200kg |
|
|
Auxiliary equipment(preform unscrambler)
|
L*W*H |
276*106*186mm |
Weight |
250kg |
|
Resin available |
/ |
PET |
