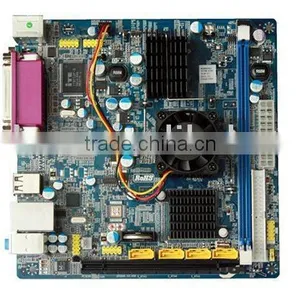

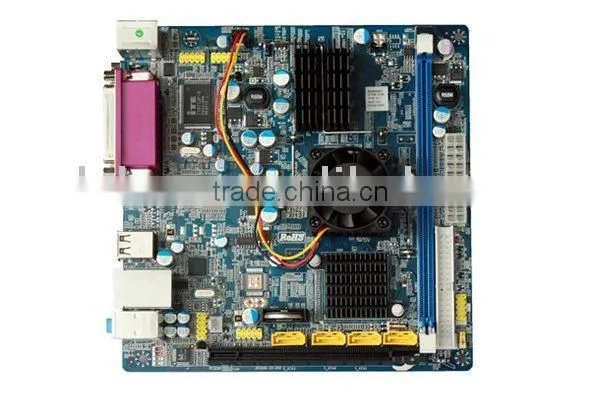

Mainboard---Integrated Intel Atom Processor 330 With a 533 MHz System Bus

Name: Mainboard---Integrated Intel Atom Processor 330 With a 533 MHz System Bus
Brand: DELONG
SKU: 101857773
Availability: InStock

Shenzhen Delonghuale Electronic & Technology Co., Ltd.

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Products Status:

Stock, Used

Application:

Other, industrial

Chipset Manufacturer:

Intel

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB Shenzhen or HK

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock, Used

Application Other, industrial

Chipset Manufacturer Intel

Form Factor Mini-ITX

Memory Type DDR2

Graphics Card Type Non-Integrated

Hard Drive Interface SATA

Brand Name DELONG

Model Number DLATOM330

Place of Origin Guangdong, China

Form factor	Mini-ITX / micro-ATX compatible (6.75 inches by 6.75 inches [171.45 millimeters by 171.45 millimeters])
Processor	Integrated Intel® Atom™ processor 330 with a 533 MHz system bus
Memory	One 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
	Support for DDR2 533 / 667 MHz DIMMs
	Support for up to 2 GB of system memory
Chipset	Intel® 945GC and ICH7
Audio	Intel® High Definition Audio in the following configuration:
	Realtek* ALC662 audio code (2+2 channel HD audio)
Video	Intel® Graphics Media Accelerator 950
I/O control	SMSC* LPC47M997 based Legacy I/O controller for serial, parallel, and PS/2* ports
LAN support	10/100 Mbits/sec LAN subsystem using the Realtek* LAN adapter device
Peripheral interfaces	Six USB 2.0 ports (2 USB inside, 4 USB outside for you connect the outside devices)
	Two SATA ports (3.0 GB/s)
	One parallel ATA IDE interface with UDMA 33, ATA-66/100 support
	One serial port
	One parallel port
	PS/2* keyboard and mouse ports
Expansion capabilities	One PCI Conventional* bus connector
BIOS	Award BIOS
Operating System	Windows 2000/XP, Linux, Win CE/Xpe
Operating Humidity	0% ~ 95% (relative humidity; non-condensing)
Form Factor	170mm*170mm
