Home > Lights & Lighting > LED Outdoor Lighting > LED Floodlight > Pccooler 500w Led Flood Light

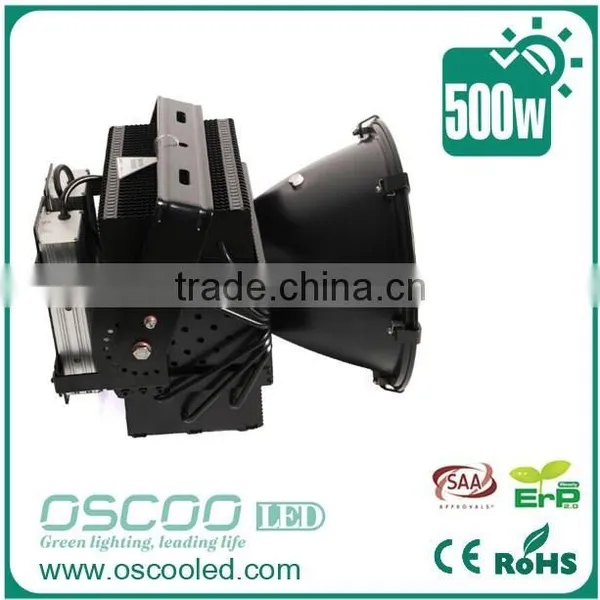

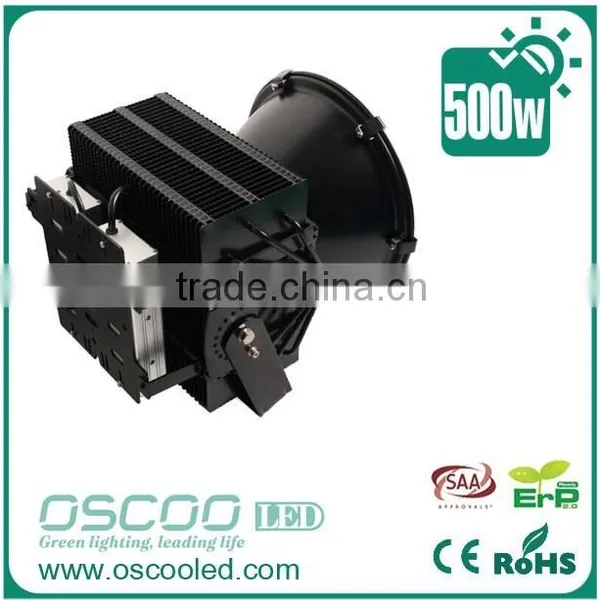

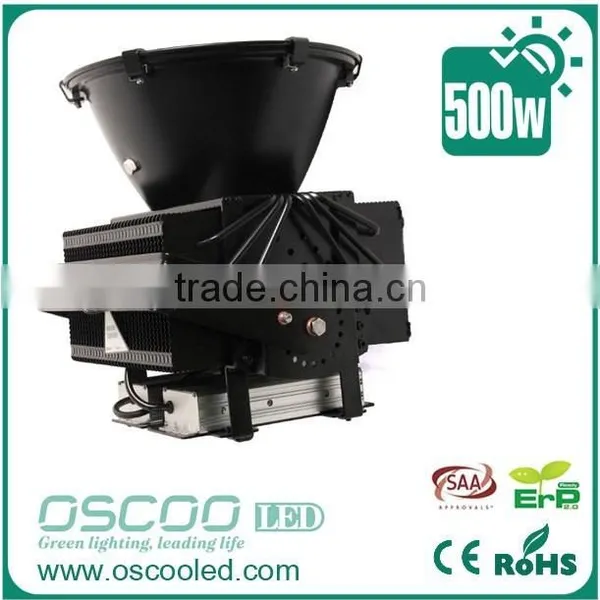

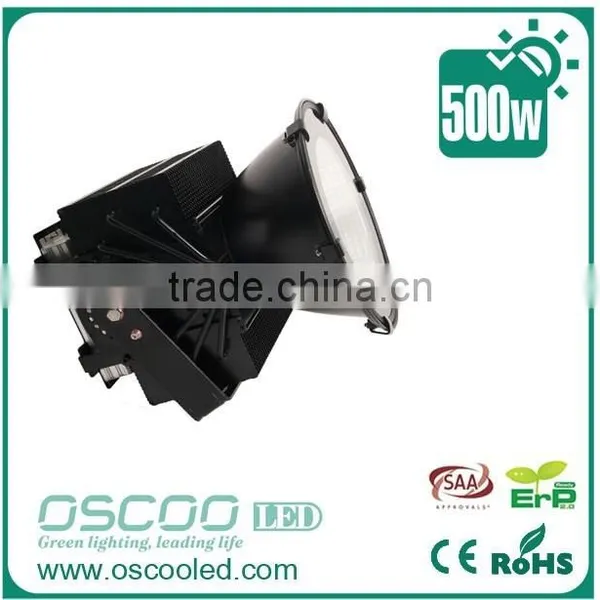

Pccooler 500w Led Flood Light

Name: Pccooler 500w Led Flood Light
Brand: OSCOO
SKU: 101852243
Availability: InStock

Pccooler 500w Led Flood Light thumbnail-1

Pccooler 500w Led Flood Light thumbnail-2

Pccooler 500w Led Flood Light thumbnail-3

Pccooler 500w Led Flood Light thumbnail-4

US$ 500 - 1,000 MOQ: 10 Pieces

Key Specifications

Get Latest Price

LED Light Source:

COB LED

Input Voltage(V):

AC110- 265V

Lamp Power(W):

Contact Supplier Request Quote Chat Now

Shenzhen Oscoo Tech Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source COB LED

Input Voltage(V) AC110- 265V

Lamp Power(W) 30

Lamp Luminous Flux(lm) 9500

Lamp Luminous Efficiency(lm/w) 100

Color Temperature(CCT) Other, 2800K-6500K

Working Temperature(℃) -40, 50

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating IP65

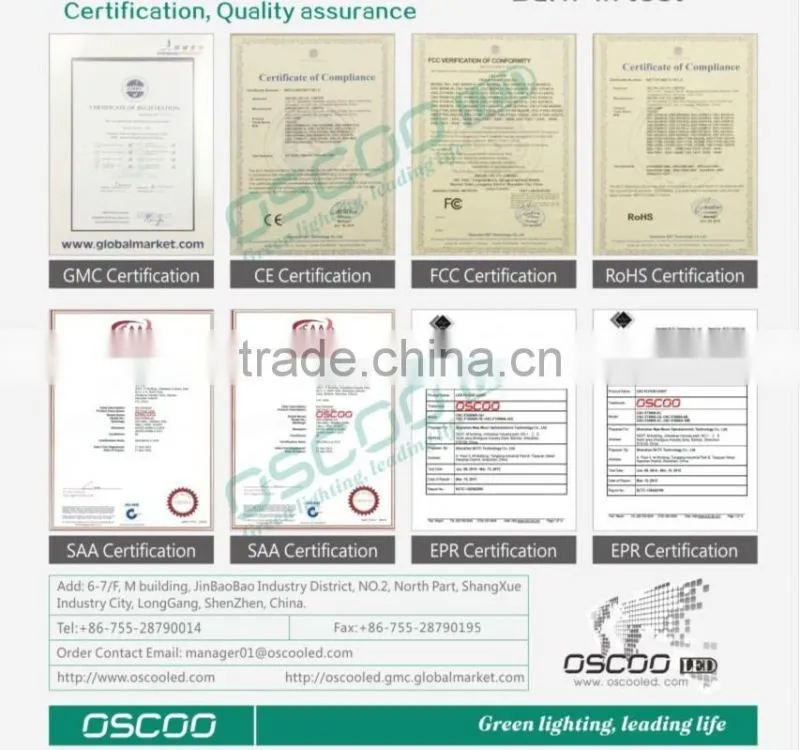

Certification CE

Place of Origin Guangdong, China

Brand Name OSCOO

Model Number OSC-H500WA-01

Pccooler 500w led flood light

1.Features of LED flood light

* High efficiency &energy saving. under the condition of the same llumination,, it saves more than 70%

energy compared with the traditional lamp.

* Long life span, using semiconductor chip as the light resource, the life can be over 50,000hrs.

* No UV&IR . It won’t distribute ray radiation

* Eco-friendly, No Hg&Xe ,or other harmful element. recyclable, also it won’t generate EMI.

* High performance external constant current drivers,no stroboscopic, good for eyesight protection;

* Patent integrated light sources, high quality Bridgelux chip, high Light effects, high color rendering

index.

* Thermal design, integration of the advanced die-casting forming, small contact resistance, high cooling

efficiency

* Protection level reaches IP65.

2.Technical Parameters

Power parameters

Power	500W
Input Voltage/Frequency	100-240VAC / 50-60Hz
LED Power brand	Meanwell
Output Voltage	30-36V
Output Current	15A
Efficiency(Typ)	>90%
Power Factor(Typ)	PF>0.95

Lighting parameters

LED Chips Quantity LED	280 pcs SMD
LED Chip type	Cree XBD
System Consumption	500±5% W
LED Luminous Efficiency	95-110Lm /W
Color Temperature	2800K~6500K
Lamp’s Initial Luminous Efficiency	≥90 lm /W
Lumen Maintenance	75%(50000Hrs)
Color Rendering Index	Ra≥75
Viewing Angle	110°/90°/50°
Operating Temperature	-40℃ ~ +45℃
Storage Temperature	-40℃ ~ +70℃
IP Grade	IP65
Life-span	50000Hrs
Materials	Finned
Detection range	120°
Appliance Class	Class Ⅰ
The color of the lamp shell	Black
Power line	0.75mm2 H05RN-F three core
Packing measurement	505060.5cm
Gross weight	17.8kg

Note: Light optic with a little deviation for different color temperature LED ,deviation value≤5%

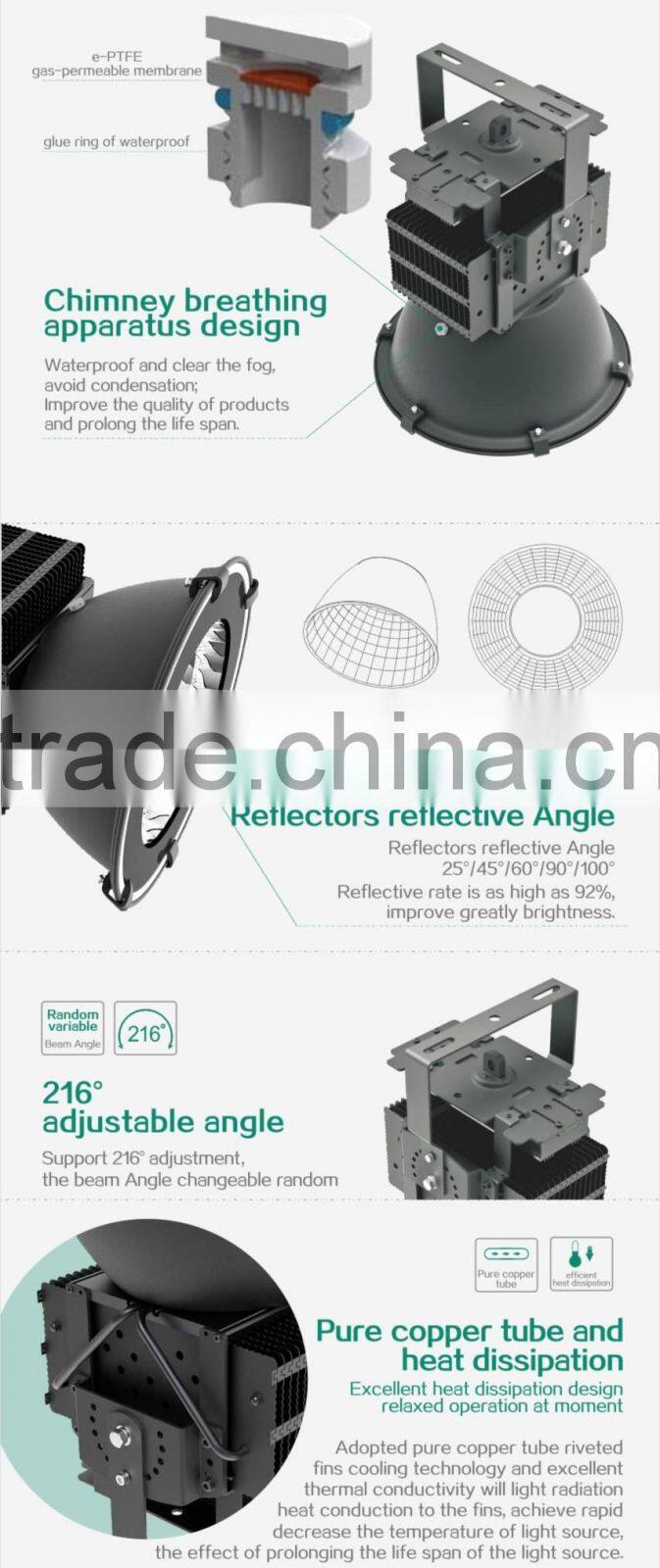

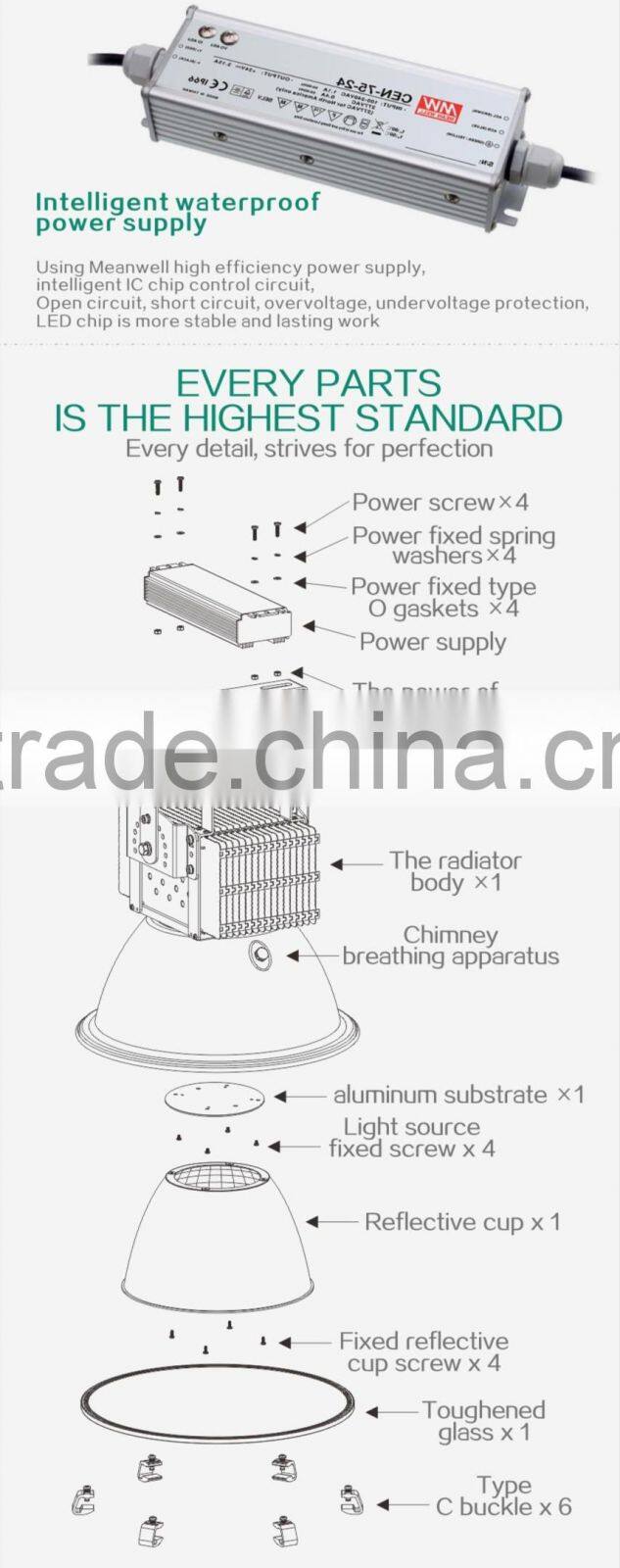

3. Product Features

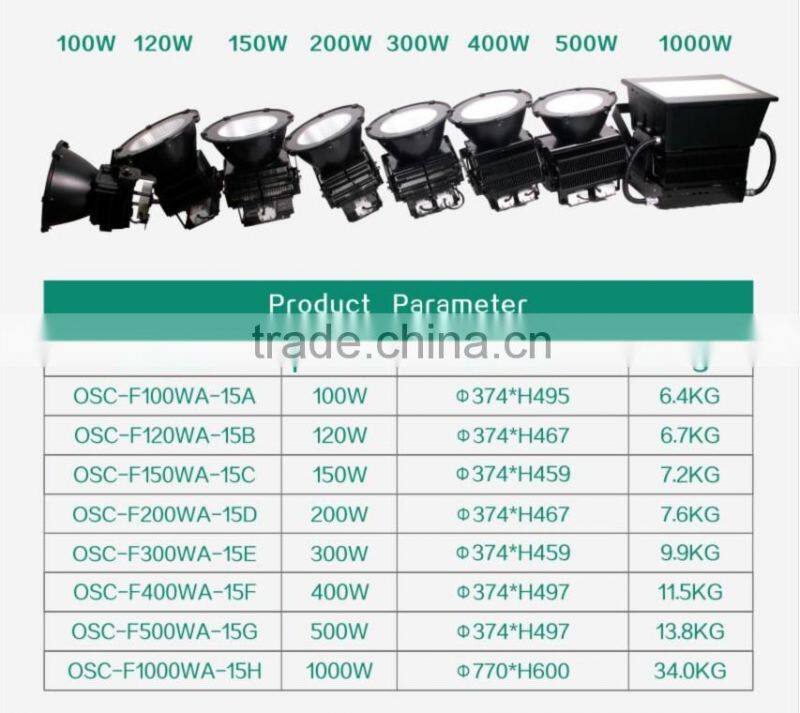

5. The packaging and size

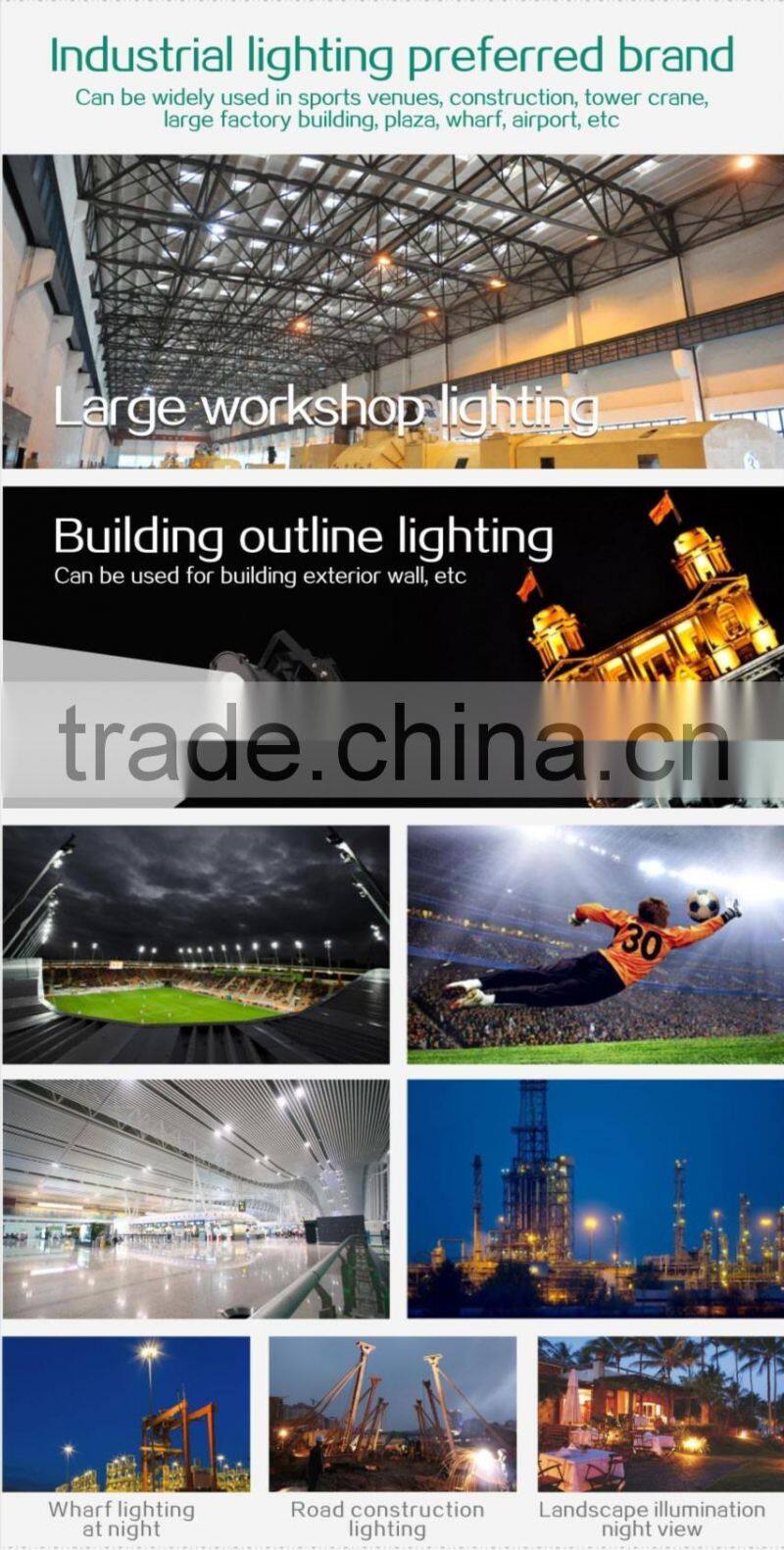

6. Product application

1) Stage, Advertising Board, Gym, Stadium, Yard, Lawn, Garden, Park, Plaza, Shopping Mall, Exhibition Hall, Dock, Highway Toll Station etc.

2) Widely used in the lighting and decoration of Hotel, Guest house, Clubs, Windows, Clothing stoes and other places.

6.Our trade terms

1.Payment: T/T (Western Union or Paypal are welcomed), L/C at sight for big amount

2.Production lead time for 100~500pcs: 5-7days, 500~1000pcs:7-10days

3.Delivery time:3 to 5 days for sample order, 7 to 15 days for bulk order

4.Shipping freight can be quoted under your requests

5.Shipping port: Shenzhen, Mainland China

6.Discounts are offered based on order quantities

7.No requirement for M.O.Q.

7.Our service

1. Your inquiry related to our products or prices will be replied in 24 hours.

2. Well-trained and experienced staffs to answer all your inquiries in fluent English.

3. OEM&ODM, any your customized lightings we can help your to design and put into product.

4. Distributorship is offered for your unique design and some our current models.

5. Protect your sales area, ideas of design and all your private information.

8. OSCOO / Company Profile

Oscar LED Co.,Ltd

Shenzhen Oscar LED Co., Limited is located in Shenzhen and is only specialized in manufacturing led flood light.

With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially Eastern Europe, Western Europe, Northern Europe, Oceania and Latin America markets. Our products enjoy a good reputation among our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
