2013 Newset New Arrival Onboard Intel Celeron 847 dual core 1.1GHz CPU MINI ITX Mainboard Industrial PC Motherboard
- 300 Piece / Pieces per Month
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- Network Security PC Motherboard Intel Atom 4C4T C3558R CPU 6*RJ45 2*SFP Gbe 2*SFP+ 10G Bypass PCIe x8 Expansion Mainboard
- Intel 12th Gen Alder Lake Quad Core N95 3.4GHz DDR4 HDMI LVDS mini-ITX Motherboard for POS SYS
- Mini-ITX Motherboard Intel Jasper Lake Quad Core N5105 CPU 16GB DDR4 HDMI EDP Mainboard for POS
- Mini-ITX Motherboard Intel Jasper Lake Quad Core N5095 CPU Dual DDR4 HDMI VGA RJ45 12VDC Mainboard
- China original Bo CPU PCA-6743 for India power system
- Onboard Intel Core i7-8565U 4.6GHz Computer Motherboard for Industrial Machine Vision Automation 4*Gbe LAN 6*COM
Product Details
Products Status: | Stock | Application: | Desktop | Chipset Manufacturer: | Intel |
Socket Type: | Other, Socket BGA 1023 | Form Factor: | Mini-ITX | Memory Type: | DDR3 |
Graphics Card Type: | Integrated | Hard Drive Interface: | SATA | FSB / HT: | 1.1GHz |
Brand Name: | OEM | Model Number: | DL847M | Place of Origin: | Guangdong, China |
Product Description
Specifications
Industrial PC Motherboard1.Onboard Intel Celeron 847 dual core 1.1GHz CPU
2.17*17cm,mini motherboard
3.VGA,HDMI,4*USB
New Arrival Onboard Intel Celeron 847 dual core 1.1GHz CPU MINI ITX Mainboard Industrial PC Motherboard
Introduction:
- Socket BGA 1023
- Intel NM70 chipset
- Intel HD Graphics,Support DX10.1,Support HDCP
- Support Intel Intel Rapid Start Technology
- Mini dimension (17*17cm ) ITX agile collocation
- MINI Industrial PC Motherboard
Specification
Key Specifications | ||||||
CPU | Intel® Celeron 847 dual core 1.1GHz CPU | |||||
Chipset | Intel NM70 | |||||
Memory | Support DDR3 1333/1066 MHz, 2 x DDR3 DIMM,maximum can up to 16GB | |||||
Expansion Slots | 1 x PCI-E x16 2.0 slot (x8) | |||||
Storage | 1 x SATA3 6Gb/s port 3 x SATA2 3Gb/s port | |||||
USB | 4 x USB 2.0 ports 2 x USB 2.0 connectors | |||||
Ethernet LAN | Onboard Realtek RTL8111F - 10/100/1000M network card chip | |||||
Onboard graphics | Intel HD Graphics Support DX10.1 Support HDCP Maximum memory up to 1759MB | |||||
Audio | Realtek ALC662 6 channels HD Audio | |||||

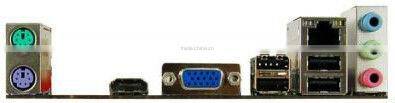

Back board I/O interface | 1 x PS/2 mouse | |||||
1 x PS/2 keyboard | ||||||
4 x USB 2.0 ports | ||||||
1 x HDMI port | ||||||
1 x VGA port | ||||||
1 x RJ-45 port | ||||||
3 x Audio ports | ||||||
Onboard I/O interface | 2 x USB2.0 | |||||
1 x SATA3 6Gb/s | ||||||
3 x SATA2 3Gb/s | ||||||
1 x front connector | ||||||
1 x front board connector | ||||||
1 x S/PDIF output connector | ||||||
1 x CPU fan connector | ||||||
1 x system fan connector | ||||||
1 x serial connector | ||||||
1 x print connector | ||||||
Motherboard Specification | Mini ITX form,dimensions: 17cm x 17cm ( W x L ) | |||||
Supported OS | Windows XP / Vista / 7 / 8 | |||||
Accessories | 2 x SATA data wire | |||||
1 x cabinet I/O board | ||||||
1 x driver disk | ||||||
1 x quick tour | ||||||
Features | Support Windows 8 | |||||
Support BIO-Remote2 | ||||||
Solid Capacitor | ||||||
Support BIOS-Flasher | ||||||
Support Charger Booster | ||||||
Support BIOS online update | ||||||
Lead time | ||||||
Sample Availble Date | within 7 working days | |||||
Mass Production Date | within 15 working days |
