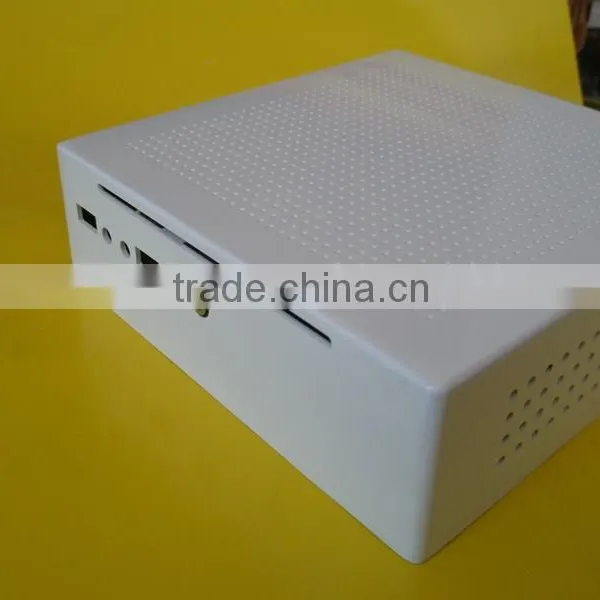

17*17cm Core 2 DUO Car PC

17*17cm Core 2 DUO Car PC thumbnail-1
17*17cm Core 2 DUO Car PC photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Screen Size:
5 - 7"
Car Make:
car
CPU:
inter
Contact Supplier Request Quote Chat Now
Shenzhen Delonghuale Electronic & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Car Make car
CPU inter
Place of Origin China
Brand Name DELONG
Model Number DL945GMPC, DL945GMPC

Specifications

HTPC
mini car pc

Design Mini ITX form factor 6 layers PCB size: 17.0x17.0cm
Processor  1.5Ghz Intel® Core 2 Duo CPU
Chipset  Intel 945GM   Memory Controller Hub (MCH) Chipset
Intel 82801GBM I/O Controller Hub (ICH7M) Chipset
l CPU Socket (Socket 479) Support Intel Core 2 Duo ,Core Duo , Core Solo, Celeron M Mobile Socket 479m Processors
Support FSB Frequency 667 / 533MHz
l Memory Socket 240-pin DDR2 RAM module socket x 2
Support Dual channel DDR2 667 / 533 MHz RAM Module and which is expandable to 2.0GB
l Integrated VGA Integrated Graphic Media Accelerator 950
256-bit graphics core running at 400MHz
1.6 GPixels/sec and 1.6 GTexels/sec fill rate
Up to 224 MB maximum video memory
Expansion Slots  32-bit PCI slot x 1pcs
 32-bit Mini PCI slot x 1pcs
 Optional Mini PCI-E x1 slot deliver up to 512MB/s concurrent bandwidth
l Integrate IDE and Serial ATA2 One PCI IDE controller that supports PCI Bus Mastering, ATA PIO/DMA and the ULTRA DMA 33/66/100 functions that deliver the data transfer rate up to 100 MB/s; two Serial ATA2 ports provide 3.0 Gb /sec data transfer rate.
l LAN Integrated Dual Realtek RTL8111B PCI-E 10 / 100 / 1000 LAN
Support Fast Ethernet LAN function of providing 10Mb/100Mb/1000Mb/s data transfer rate
Audio  Realtek ALC888 High Definition Audio Codec integrated
Audio driver and utility included
BIOS  Award 4MB SPI Flash ROM
l Multi I/O DVI port x1
HDMI port x1
 Serial port x2
 D-Sub 15-pin VGA Conn.x1
 LVDS connector x1
CIR(Consumer IR) header x1 (Option)(Need to purchase Optional IR receiver and Remote control)
HDTV-OUT header x1
6-Pin PS2 Keyboard/Mouse header
USB 2.0 connector x 4, headers x2 (connecting cable option)
6-channel Audio connector (Line-in, Line-out, MIC-In/ 6CH Audio)
l IEEE1394  Integrated VIA VT6307S 1394 controller
 Compliant with IEEE 1394a-2000 standard, support 400Mbit/s data transfer rate
Operating System  Windows 2000/XP, Linux,etc
RAM 1GB MEMORY DDR2 DIMM x1
hard disk 80G 2.5inch mini disk
power supply supply delay shutdown time  and start time

...
