Help CenterThe High Pressure PP-R Stainless Steel Pipe
Related Products
Product Specification:
LINGLONG PP-R Stainless steel pipe is a new generation of green tubular product. It uses the SUS300 standard PP-R stainless steel pipe as the inwall, and type III PP-R as the exterior.The part between them is fixed by the specialized hot colloidal sols. It's easily fixed and enjoys a good quality. It combines the merits of the metal pipe and that of the plastic pipe, so it is hygienic without deposition, of no chemical reaction and non-oxidizability, adn of a long longevity( under normal circumstances over 50 years) and high temperature and high pressure resistant. And it is uviofast, light and enjoys a high tough value. Moreover, it never has the problem of leakage, and it is beautiful. It overcomes the deficiency of disto-rtion caused by the thermal expansion. It is suitable especially for transfer systems like the transfer system of purified water and that of the heating device.
MIN.Order: 1000 METERS, IF YOUR ORDERS IS LESS THAN THIS ,PLS CONTACT US.
Material: POLYPROPYLENE
PressureE Rating :25Mpa
Standard:ACCOUNDING TO GB/T18742.3 AND DIN8077/8078
Color: WHITE, GRAY, RED, BLUE, GREEN AND OTHER COLORS ACCORDING TO CLIENTS'DEMAND.
Delivery Time: IN 10-25 DAYS AND WE ARE CAPABLE TO DEAL WITH URGENT ORDERS.
Packing : CARTON, BAGS WITH SMALLER PE BAGS AND THE FRONTS AS CLIENTS' DEMAND.
Certificate: ISO9001:2000
Connection: CONNECT WITH PIPES
Size: 20-63mm
Detailed information:
| SIZE | weight | pack. | vol. |
| gram/m | (m/pack) | ||
| 20 | 192 | 200 | 0.11 |
| 25 | 290 | 160 | 0.11 |
| 32 | 520 | 96 | 0.11 |
| 40 | 605 | 64 | 0.11 |
| 50 | 925 | 40 | 0.11 |
| 63 | 1455 | 24 | 0.11 |

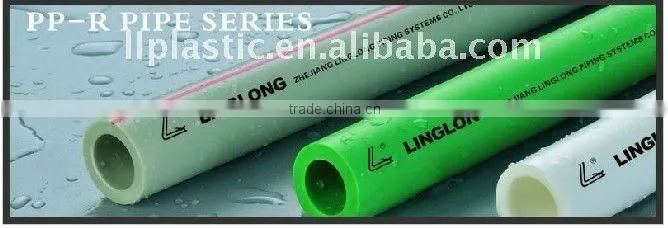

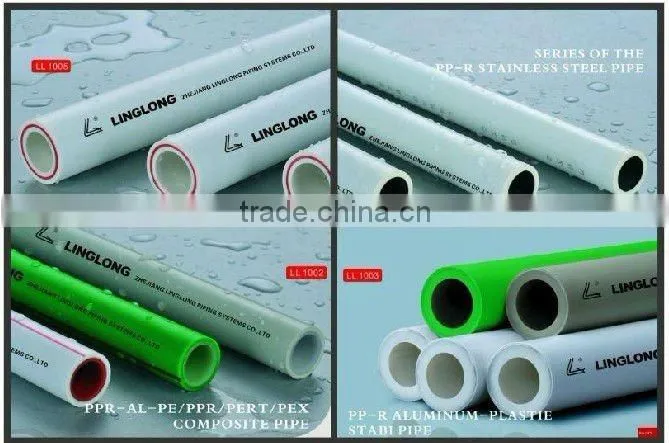

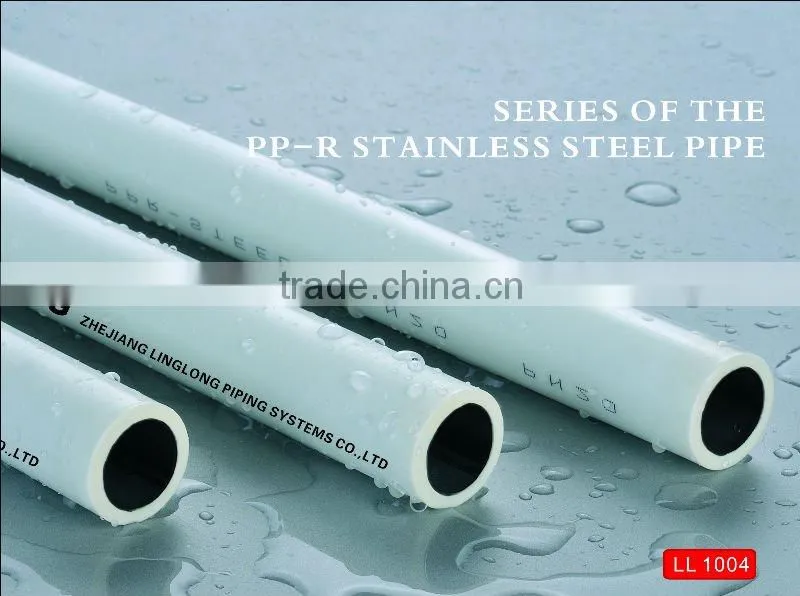

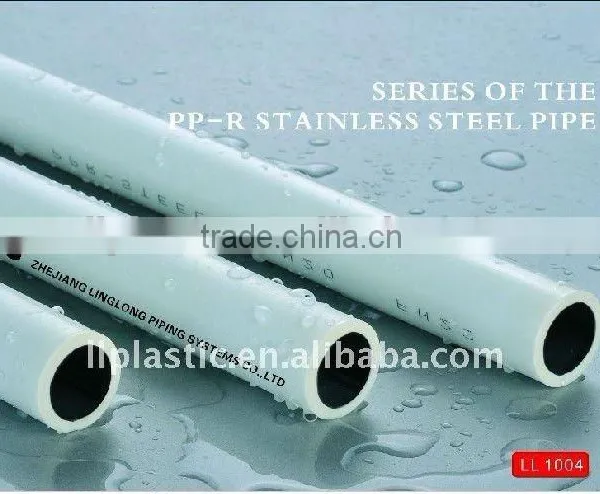

Detailed picture:
properties:
- High temperature resistance: the maximum sustained working temperature is up to 70°C,the maximum transient temperature is up to 95°C
- Heat preservation: low thermal conductivity result in preserving heat
- Non-toxic: No heavy metal additives , would not be covered with dirt or contaminated by bacterium
- Lower installation costs: light weight and ease of installation can reduce installation costs
- Higher flow capacity: smooth interior walls result in low pressure loss and high volume
- Excellent Flexibility: can be supplied in coil
- Longevity: more than 50 years under proper use
- Recyclable and environment – friendly
Application:
- cold and hot water supply
- heating system including flooring heating
- heating and radiant system
- central air conditioning system
- industrial liquids transportation
Contact Us:
Ms. Amelia
Tel: 0086-575-87625088
Fax: 0086-575-87625790
Zip: 311835
Web:
Welcome consultation and negotiation! OEM IS also welcome! Happy New Year!
