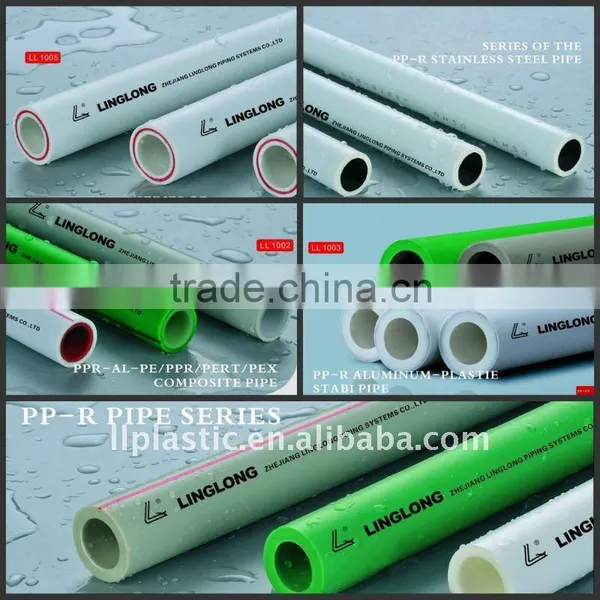

Help CenterPPR Pipe for Hot and Cold Water
Related Products
Specifications
1.PPR pipe from 20 to 160mm2.Pressure rating available in 1.25MPa, 1.6MPa, 2.0MPa 2.5MPa
3.0.40~27.64 (FOB)
4).DIN8077/8078;
Advantages:
1).Healthy: ppr pipe material
2).Attrictive shape and light weight: little fluid resistance; soft color, beautiful shape; only 1/8 that of metal pipe
3).Energy saving and heat preservation: coefficient of heat conduction is only 0.5% that of metal pipe.
4).Strong high temperature endurance: long-term service temperature:70°. Short-term service temperature:95°
5).High pressure endurance: highest normal pressure can reach 140°
6). Long service life: Under normal temperature, up to 100 years; under 70° and 1.0 M Pa, over 50 years.
7).Convenient and reliable installation:hot melt connection, a connection can be finished within seconds
8) Provide OEM
9).ISO9001:2000; ISO14000
10).DIN8077/8078;GB ISO15874
11). Competitive Price: USD 0.40~27.64 (FOB)
PP-R Water Supply Pipe
|
|
PN 1.25MPa |
PN 1.6MPa |
PN 2.0MPa |
PN 2.5MPa |
|
Outer Diameter dn(mm) |
Wall Thickness en (mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
|
|
|
|
|
20 |
2 |
2.3 |
2.8 |
3.4 |
25 |
2.3 |
2.8 |
3.5 |
4.2 |
32 |
2.9 |
3.6 |
4.4 |
5.4 |
40 |
3.7 |
4.5 |
5.5 |
6.7 |
50 |
4.6 |
5.6 |
6.9 |
8.3 |
63 |
5.8 |
7.1 |
8.6 |
10.5 |
75 |
6.8 |
8.4 |
10.1 |
12.5 |
90 |
8.2 |
10.1 |
12.3 |
15 |
110 |
10 |
12.3 |
15.1 |
18.3 |
160 |
14.6 |
17.9 |
21.9 |
26.6 |
Send Inquiry to This Supplier
