2016 All New Design Warehouse Storage Radio Shuttle Racking With High Quality

2016 Popular Warehouse Storage Radio Shuttle Racking With High Efficient

1. Radio Shuttle Rack concept

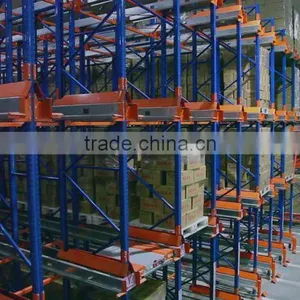

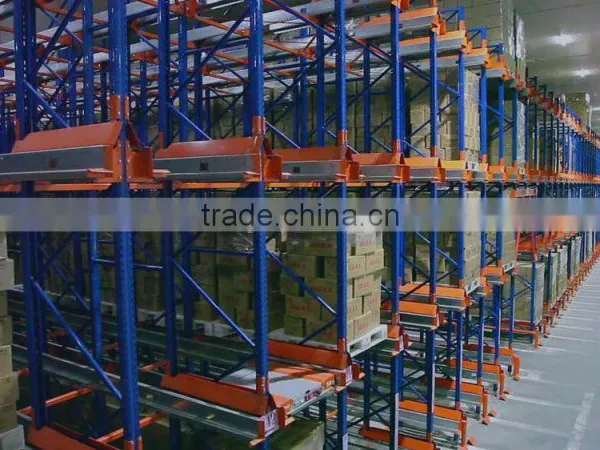

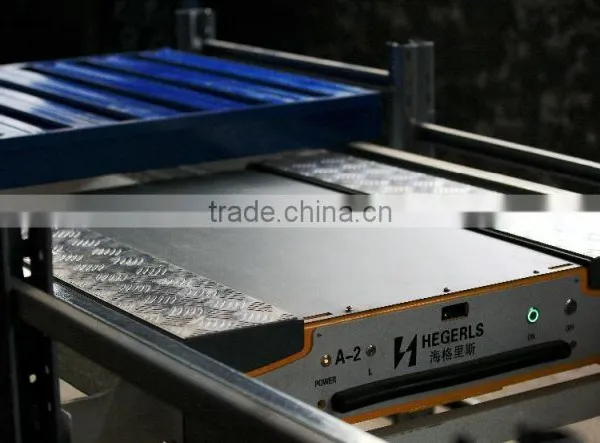

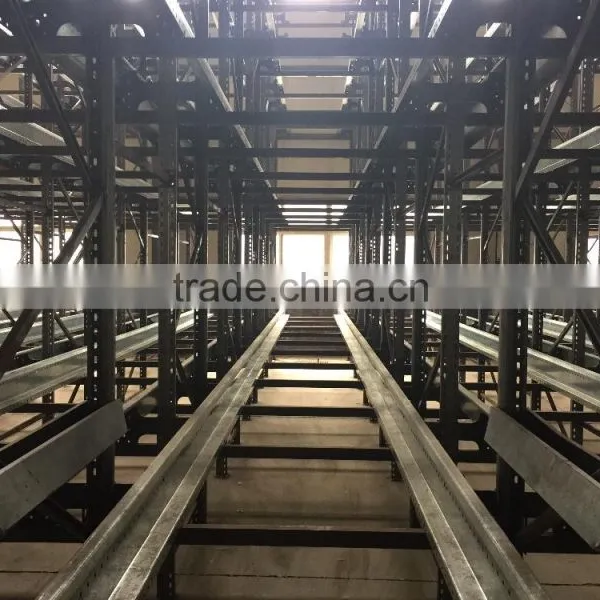

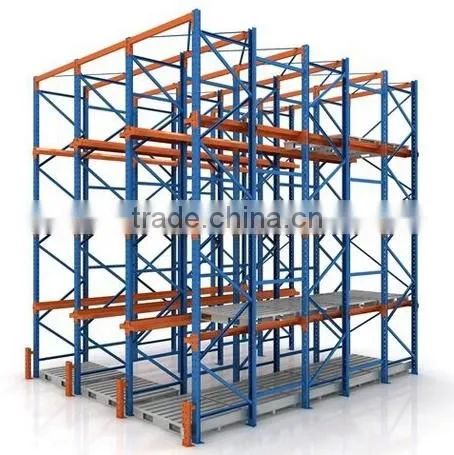

Radio Shuttle shuttle Racking system consists of supporting rack, shuttle rails and a Radio shuttle cart (Also Called Pallet Runner or Pallet Mole). The Radio shuttle cart runs on the rails and is propelled by an electric motor. It also has a platform on the top that can lift up and down. The lifting action is required to lift a pallet that is placed on the rail and then the electric motor moves the cart with the pallet on top into the rack in order to deposit the pallet in its right position.

When the pallet is required, the cart moves in under the pallet, lifts it and brings it to the front of the rack where it can be retrieved by a forklift.

All the movements of the shuttle cart are controlled with a hand held remote control. The shuttle cart is placed in the desired lane with a forklift.

2. Advantages

Radio Shuttle Cart is a fully programmable deep lane storage and retrieval system used to transport pallets within a racking structure for maximum storage and throughput of bulk stored items. Radio shuttle rack system allows for more pallets to be stored in a given area when compared to normal static rack .It also minimizes damage to the rack because the forklift does not have to travel into the racking, as is the case with drive-in rack. Accessibility is increased because all the levels can be accessed at any time. In a drive-in rack system the bottom level must be cleared first in order to be able to access the higher levels.

• Goods can be stored in the warehouses with highest density and low cost.
• Storage Style: FIFO or FILO, Optional tunnel picking.
• As each pallet only needs to be positioned at the beginning of the deep lane storage it increases efficiency within operations.
• Better safety and anti-seismic performance than drive in racks.
• Technical Specifications.
• Nominal Loading capacity : 500 KGS~1200KGS
• Running Speed: Max.1.1M/S
• Operation Methods: To be operated manually or vehicle-mounted or Radio remote control
• Temperature in the freezer:-30°C

√  Advantage







1. Low MQQ: Meeting actual small requests;
2. OEM Acceptable: We can produce you design;
3. Good service: We treat clients as friend;
4. Good quality: We have strict quality control system. Good reputation in the market;
5. Fast delivery: Scientific production arrangement to ensure the fast delivery.







√ Our company certificates and prompt service

•  TUV for welding quality and ISO 9001 for the total quality of our company
•  We will send you information and photos at different production stage of your order.
•  We have more than 300 workers in our factory, which enable us to guarantee the delivery time
•  We have our own designer, nonstandard products is possible
•  Surface treatment: Normal free Acid-cleaning and phosphating manipulation before powder painting
•  We can also galvanized the rack for you
•
