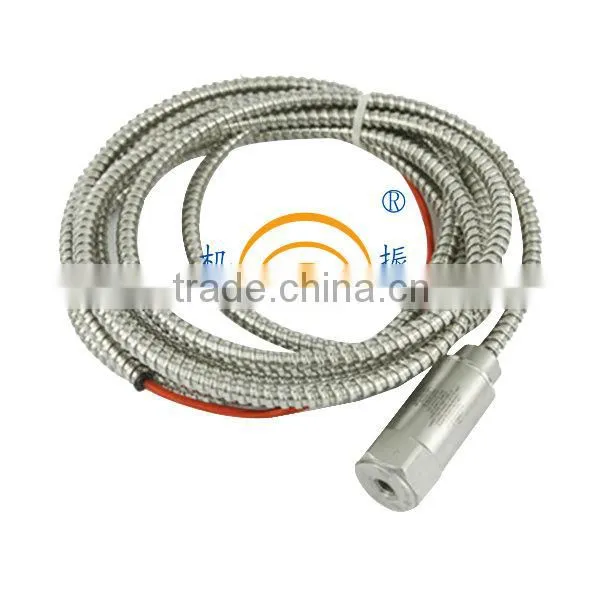

YD33 Velomitor Piezo-Velocity Sensor

Name: YD33 Velomitor Piezo-Velocity Sensor
Brand: Cezhen
SKU: 101832665
Availability: InStock

US$ 119 - 329 MOQ: 1 Piece

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

Cezhen

Model Number:

YD33

Shanghai Cezhen Automation Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name Cezhen

Model Number YD33

Usage Vibration Sensor

Theory Other, Piezoelectric

Output Other, Analog Sensor, 5/16-24 2-pin socket

(Equivalent to 330500 Velomitor Piezo-Velocity Sensor)

Feature:

l Utilizing piezoelectric effect of piezoelectric material

l Embedded precision integrator circuit

l For measuring absolute vibration machine failure rate

l Can be vertical, horizontal or at any angle to install

Main technical indicators:

Dynamic Performance
Sensitivity(20±5℃)	4±5%mV/mms-1
Transverse sensitivity	<5%
Frequency Range(±3dB)	4~4000Hz
Speed range (peak)	±1000 mms-1
Amplitude linearity	≤2%
Electrical Performance
Power supply	18~28VDC(Constant current source)
Bias voltage	12±2 VDC
Working current	2~10mA
Output Impedance	<100 Ω
Noise	~50μV
Installation of the insulation	≥108Ω
Environmental performance
Shock Limit (peak)	3000 g
Temperature response	<5%
Temperature range	-20℃~+80℃
Physical parameters
Housing material	304 Stainless steel
Weight	80g
Installation	1/4-28
Piezoelectric materials	PZT-5
Output	5/16-24 2-pin socket
Accessory
Sensor Certificate	Calibration parameters
1/4-28 Bolt	1pcs
3106A(5015)Plug, Cable (RVVP)	1pcs(3m)
