30~52kw Heat Pump Pool Heater
US$ 1,000 - 2,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Air Source Heat Pump
Installation:
Freestanding
Storage / Tankless:
Storage
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
17~25kw Pool Heater Swimming Pool Heat Pump 220~240V/PH/50Hz Quality ChoiceUS$ 1,000 - 2,000MOQ: 1 Set -
3~4kw Heat Pump Water Heater Swimming Pool Heat Pump Quality ChoiceUS$ 300 - 500MOQ: 1 Set
-
6~13kw Swimming Pool Heat PumpUS$ 300 - 1,000MOQ: 1 Set
-
14~16kw Air to Water Heat Pump Swimming Pool Heat Pump 380~400v/3ph/50hz Quality ChoiceUS$ 700 - 1,000MOQ: 1 Set
-
19w~26kw Heat Pumps for Swim Pool 380~400V/3PH/50HzUS$ 1,000 - 2,000MOQ: 1 Set
Type
Air Source Heat Pump
Installation
Freestanding
Storage / Tankless
Storage
Housing Material
Other, Metal sheet
Use
Swimming Pool Heater
Certification
CE, EMC, Other, CE, EMC, RoHS
Place of Origin
Guangdong, China
Brand Name
OEM
Model Number
ESDPH-21/26CH
Product Description
Heat pump pool heater
Working from -10℃ to +43℃
Auto defrosting
Auto restart after power down
Settable restarting temperature
Features
1) Galvanized powder coated shell
2) Compact structure and good demountability
3) Reliable compressor with green refrigerant R410A
4) 4-way reversing valve
5) Intelligent controller with possibility of remote control (Eliwell or Carel)
6) Conderser: Titanium heat exchanger
7) Evaporator: hydrophilic fin-tubeheat exchanger
8) Thermostatic or Electric expansion valve
9) Stable water flow switch built-in
10) General testing and operational test carried out for every unit before the packing
Technical data
| Heat pump pool heater | ||||
| Model | ESDPH-34CV | ESDPH-42CV | ESDPH-52CV | |
| Heating capacity* | KW | 30 | 38 | 47 |
| Heating power input* | KW | 6.45 | 8.10 | 9.97 |
| Rated current* | A | 9.8 | 12.31 | 15.15 |
| COP* | / | 4.65 | 4.69 | 4.71 |
| Heating capacity** | KW | 34 | 42 | 52 |
| Heating power input** | KW | 6.50 | 8.15 | 10.02 |
| Rated current** | A | 9.87 | 12.38 | 15.22 |
| COP** | / | 5.23 | 5.15 | 5.19 |
| Max. water temperature | ℃ | 40 | 40 | 40 |
| Rated water temperature | ℃ | 27 | 27 | 27 |
| Water flow | m3/h | 14.50 | 18.00 | 22.00 |
| Water connections | inch | 3" | 3" | 3" |
| Noise | db | 62 | 65 | 68 |
| Compressor | Brand | Sanyo | Sanyo | Sanyo |
| Quantity | 2 | 2 | 2 | |
| Power supply | V/PH/Hz | 380~400/3/50 | 380~400/3/50 | 380~400/3/50 |
| Refrigerant | / | R410a | R410a | R410a |
| Condenser | / | Titanium heat exchanger | Titanium heat exchanger | Titanium heat exchanger |
| Type of defrosting | / | Reverse circulation | Reverse circulation | Reverse circulation |
| Net weight | kg | 278 | 292 | 303 |
| Gross weight | kg | 296 | 310 | 321 |
| Net dimensions | mm | 1430 x 730 x 980 | 1430 x 730 x 980 | 1430 x 730 x 980 |
| Packing dimensions | mm | 1510*820*1100 | 1510*820*1100 | 1510*820*1100 |
| 1. Unit working temperature : -10℃ to 43℃ 2. *Test condition: ambient temp: 15℃/11℃, water inlet: 27℃ **Test condition: ambient temp: 24℃/19℃, water inlet: 27℃ | ||||
Production show

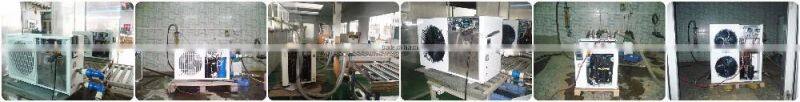

Factory test
Packaging & Shipping
Warranty
The warranty we can provide:
*Only general spare part warranty
*Only compressor warranty
*Warranty on spare parts and the whole machine
…
The warranty details are negotiable depending on the respective order situation.
After-sale service
Should you have any problem, please be free to contact us!
In order to ensure that your request can be processed in the fastest way possible, please provide the device data, such as the production number and manufacturing data which are listed below the name plate.
