Specifications
1. Auto ARC starting2. Taiwan linear square rail
3. Panasonic servo driving
4. Fastcam software
5.CE/FDA certificate
Portable CNC Flame/Plasma Cutting Machine
1.Brief Introduction:
It is mainly used in steel construction, steel tower, plates, construction machine, boats and ships manufacturing industry.

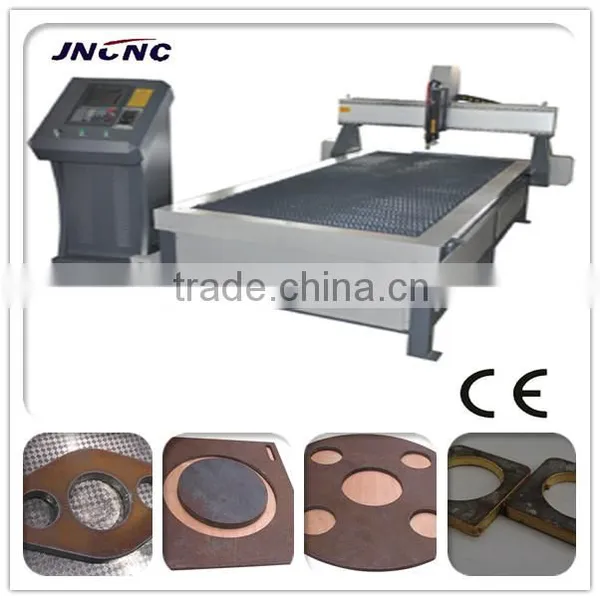

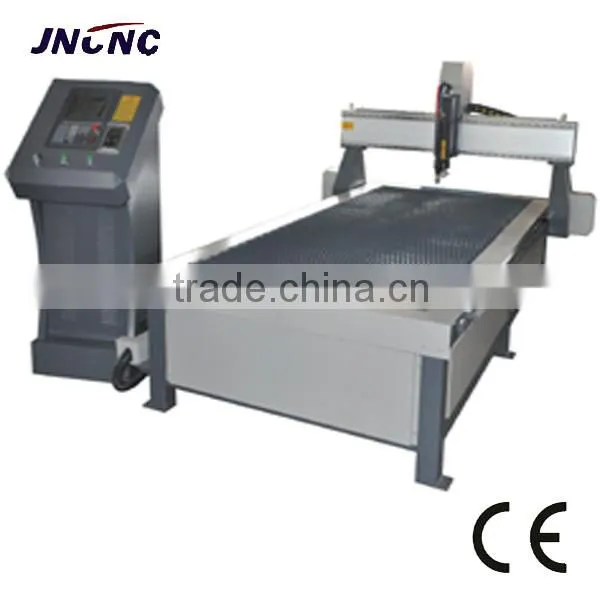

2.Picture of Portable CNC Flame/Plasma Cutting Machine:
3.Technical Parameters:
Working Area |
1300*2500mm |
Cutting Thickness |
(120A)3-16mm (200A) 3-30mm ( according to the material) |
Moving Speed |
0-50000mm/min |
Cutting Speed |
0-10000m/min |
Cutting accuracy |
±0.02mm |
Power Supply |
HWAYUAN / American HYPERTHERM (HPR)/ American THERMADYNE |
Input Voltage |
3 Phase 380V |
Power Frequency |
50HZ |
Flies Transfer |
USB Interface |
Arc type |
Untouched type |
Motor |
Panasonic servo motor |
Guide rail |
Taiwan imported linear guide |
Transmit way |
Taiwan imported ball screw |
Operation language |
English or Chinese |
Command |
G code, *uoo, *mmg, *plt |
Optional power source |
American Hypertherm and American Thermadyne |
Spare parts |
Electrode, Electricity nozzle and Water jacket |
Control system |
DSP or Start control system
|
Applicable material |
Steel, carbon steel, stainless steel, iron plates, aluminum and copper |
4.Features:
1).Panasonic servo motor, Taiwan servo reducer device and high accuracy rack gear transmission. Lower noises, stable and accurate coordinate movement.
2).Starfire control system made in Sino-US joint venture and Germany design software FastCAM with auto material saving function.
3).American Cut-Master plasma power supply (120A/200A) together with high sensitive arc pressure adjuster. Self-adjusting to choose the best distance between plasma gun and working piece automatically in order to ensure cutting accuracy.
5.Pictures of Main Parts:
6.Samples Show:
7.Packaging Details:
8.Exhibition Show:
9.Warranty and After-sale Service
1) The machine warranty is 1 year.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4) Samples for free
5) CE/ISO certificate
